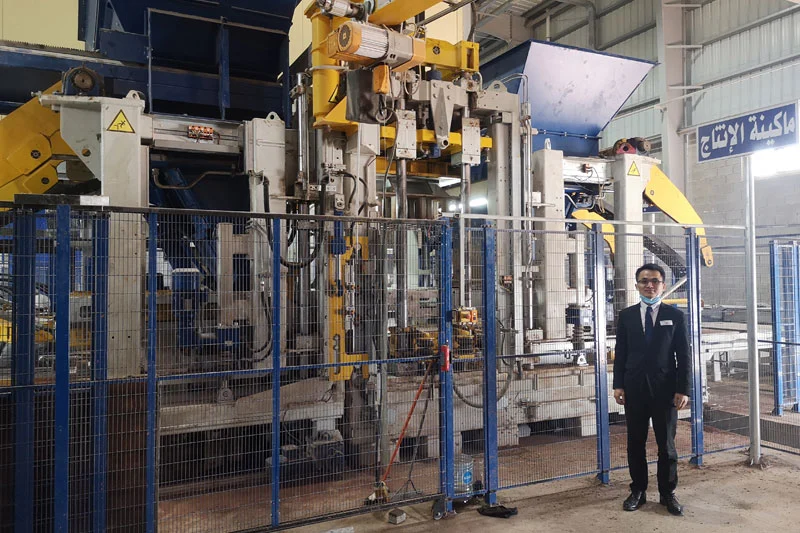

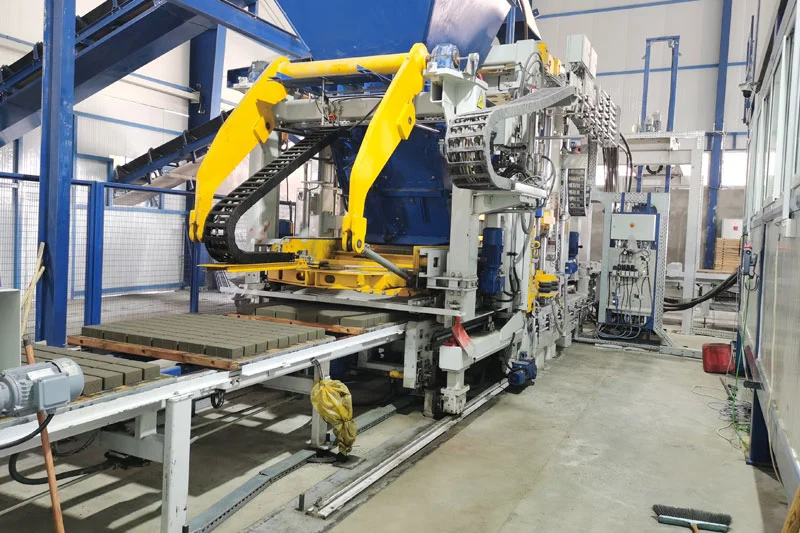

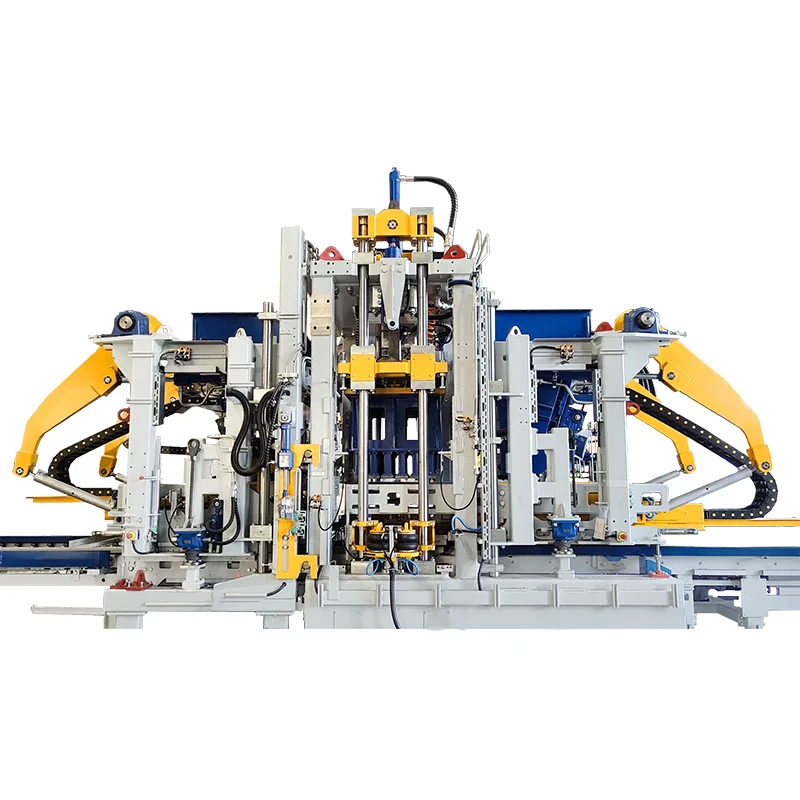

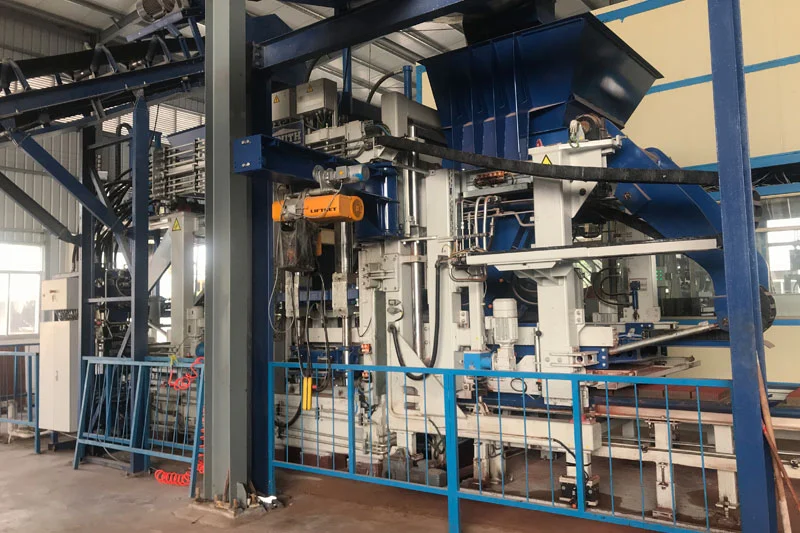

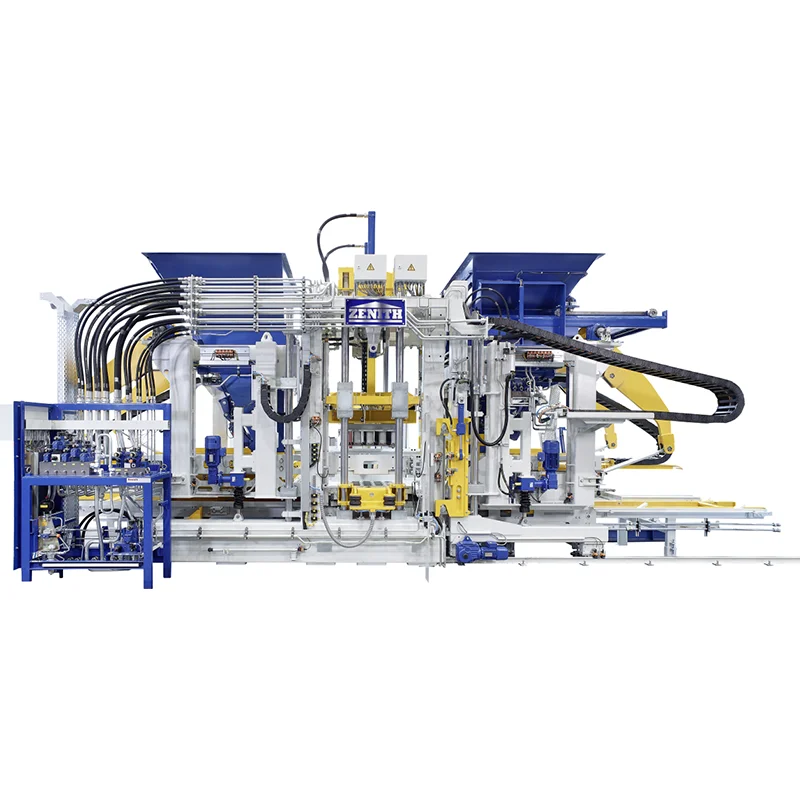

Single Pallet Large Board Making Machine

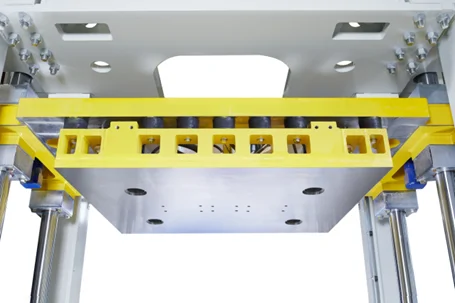

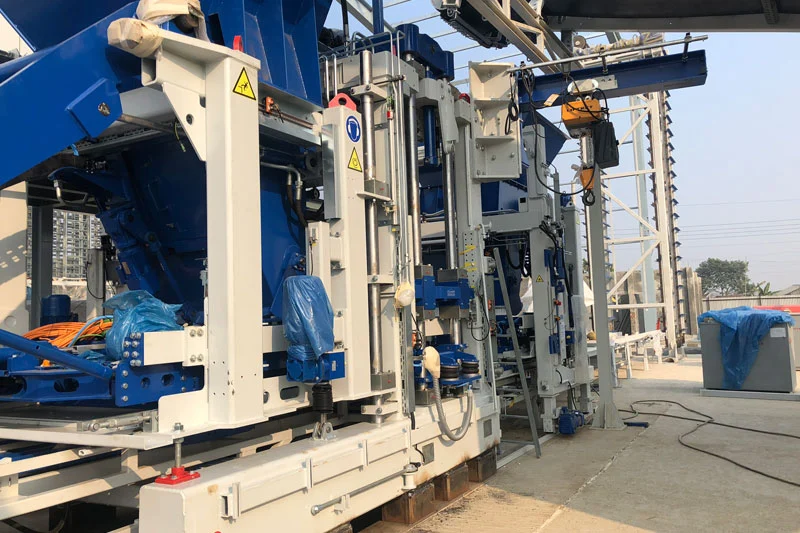

1 Quick mold change system

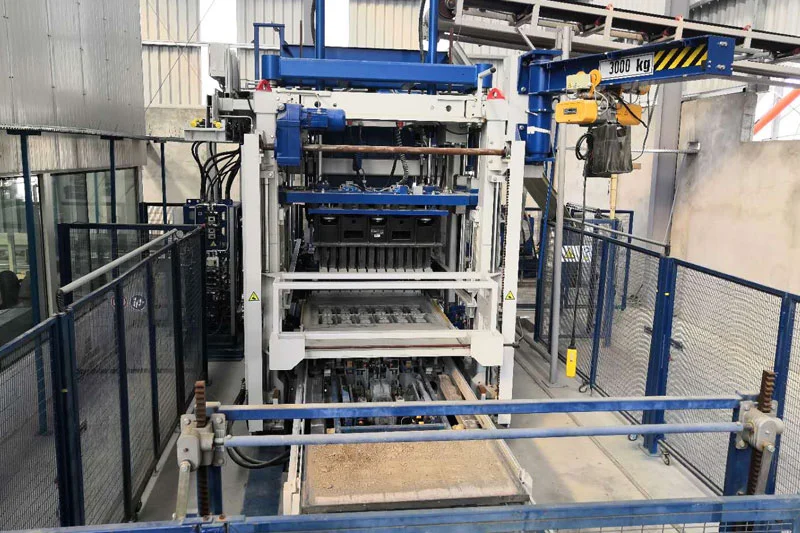

● Crane with a lifting capacity of 3 tons for changing molds.
● ZN1500-2 comes with tamper-evident protection, compatible with other manufacturers' molds.
● Mold replacement in 15 minutes.

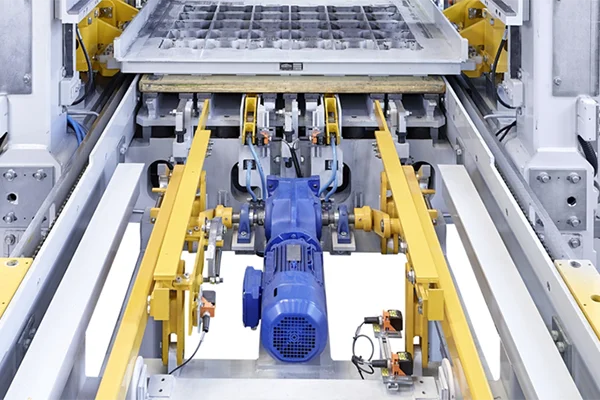

2 Drop Down Wet Table Single Pallet Large Board Making Machine
● Specially designed drop table ensures higher feed speed of wet products onto the conveyor from the wet side.

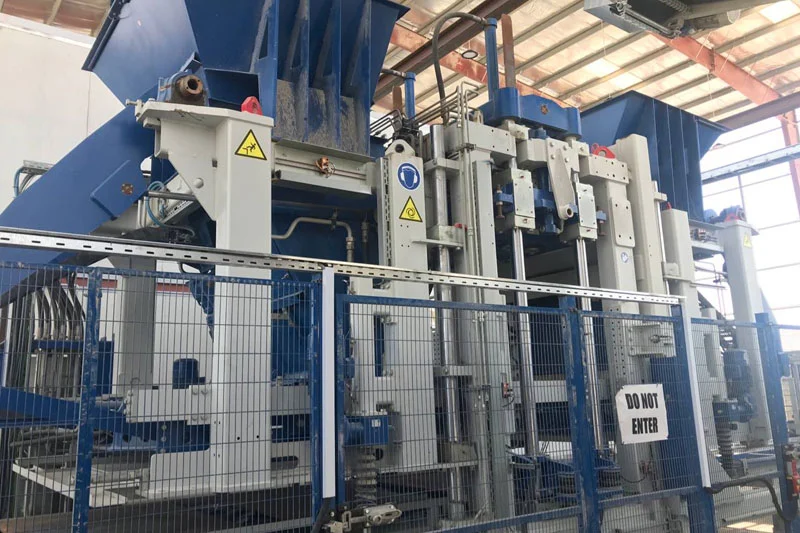

3 Machine frame

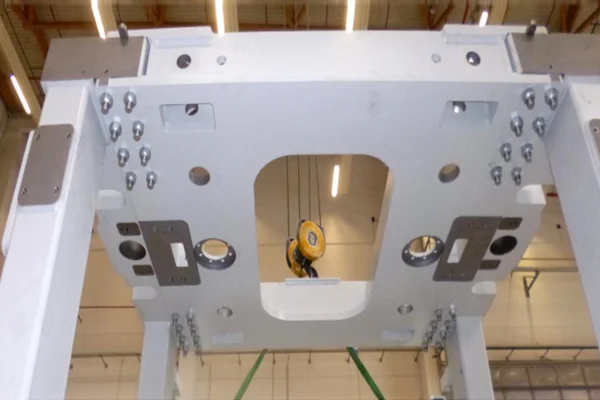

● ZENITH is the only company to use bolted machine frames.
● The extremely strong bolted machine frame consists of side frames, vibrating table beam, vibrating table motor beam and cross beam.
● Competitive frames crack over time due to inflexible weldments.
● The bolted Zenith machine frame is strong enough to withstand high pressure, yet flexible enough to absorb high vibration power. Therefore, the service life of the machine is significantly longer.

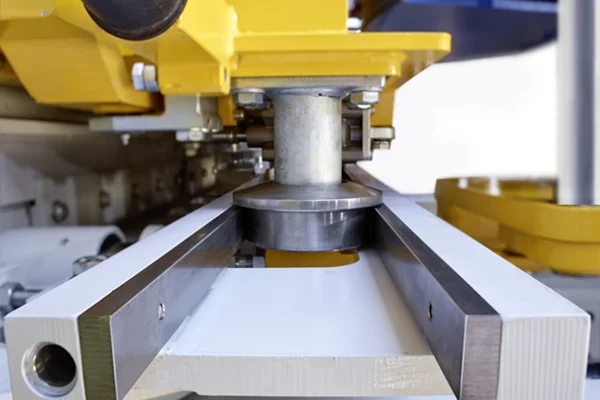

4 Easy maintenance
● Welded filler container guides are equipped with replaceable wear parts. This significantly reduces costs and assembly time.
● The cross beam is designed in such a way that the columns can be moved individually to the side. This significantly speeds up and reduces physical maintenance costs.
● Individual modules, motors, motor power adapters and computer units can be easily replaced without the need for a service engineer or programmer.

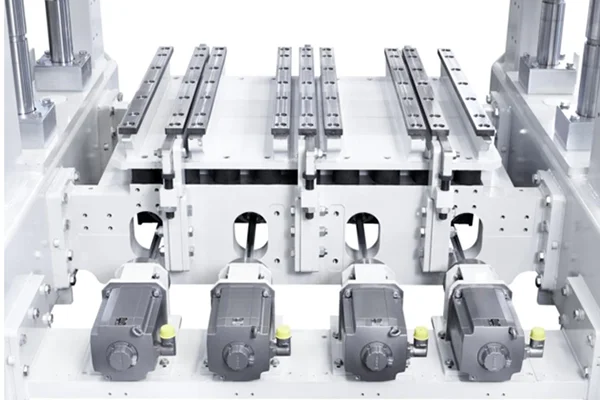

5 Ultra dynamic vibration system
● The ZENITH ultra-dynamic vibration system guarantees the highest dynamics and at the same time high product density.

● Highly dynamic vibration system developed jointly with leading German university Aachen. ● Innovative vibration system designed to achieve precise vibration amplitude with very short response time, while allowing flexible adjustment.
● High dynamics are achieved using the latest SEW servo technology and allow the offset angle to be adjusted in less than 0.1 s.

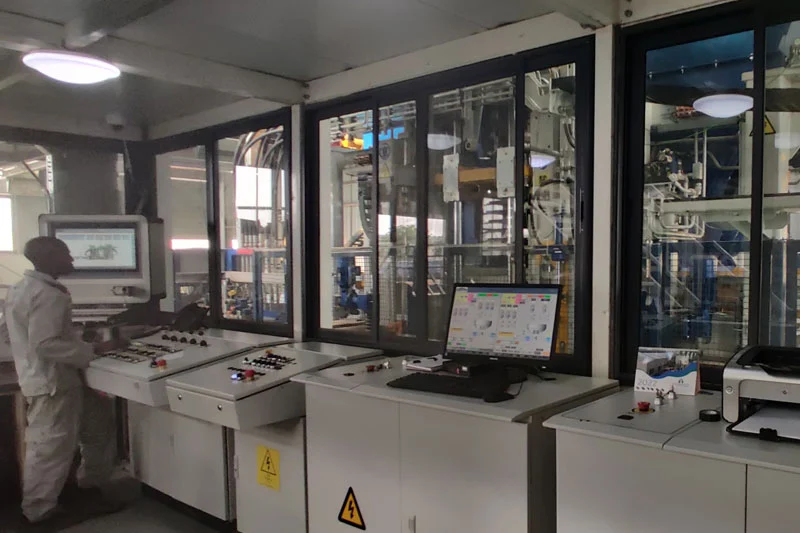

6 Electrical control system - easy to use

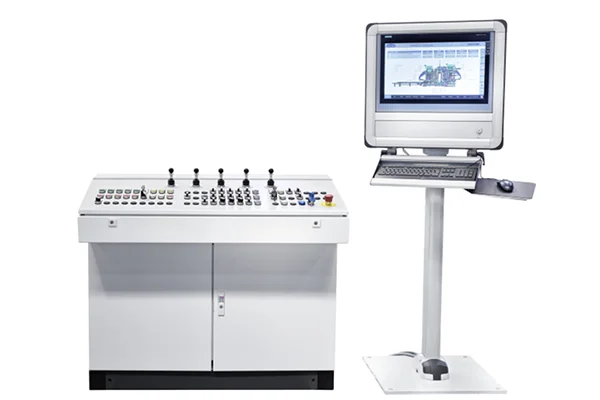

● To ensure maximum ease of use, the ZN1500-2 is equipped with an intuitive and self-explanatory visualization concept.
● Clearly organized visualization shows only the most important components. However, with just a few clicks, you can select and monitor every piece of equipment in real time.
● ZN1500-2 is equipped with a Siemens mobile touch panel for maximum ease of use. The operator can wear a comfortable panel and operate the machine from different locations.

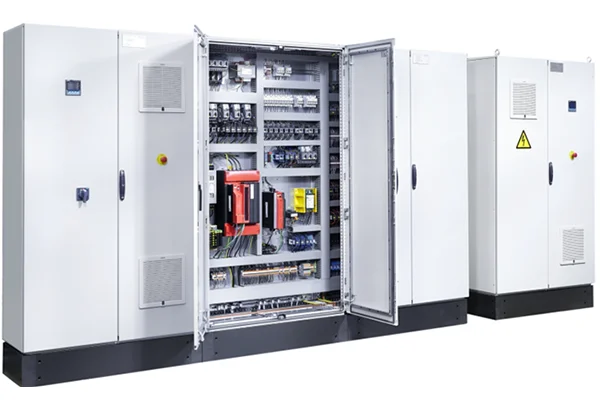

7 Electrical control system
● Thanks to intensive research and development collaboration with Siemens since 2014, many innovations have been developed.
● ZN1500-2 is equipped with the latest Industry 4.0 standards.
● Thanks to the Siemens S7 1500 TIA portal, all machine components and processes are interconnected and can be fully monitored and optimized in real time.

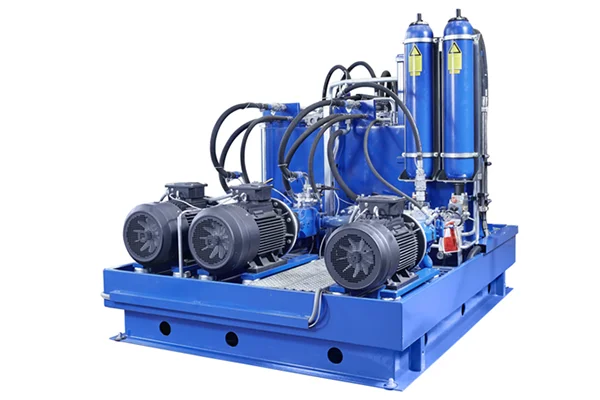

8 Advanced hydraulic system
● ZN1500-2 is equipped with two main pumps (capacity 270 l/min) and two accumulators to reduce cycle time in normal production.
● In case of pump failure, the machine can operate with a second pump to avoid production stoppage.
● An additional pump for setting mode (capacity 20 l/min) guarantees a safe limitation of the speed of the corresponding movements.

9 Leading Intelligent Cloud Service System

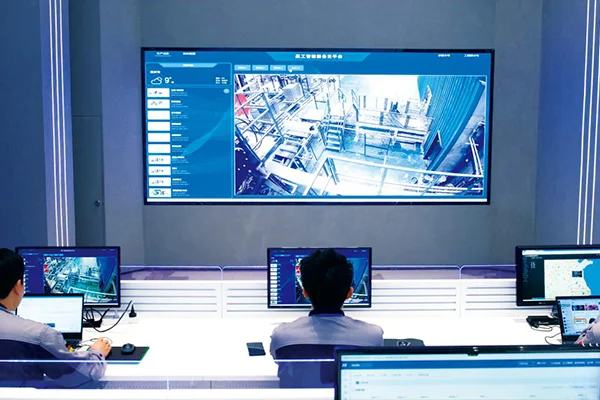

QGM intelligent cloud platform uses cloud technology, data transmission protocols, mobile Internet technology, equipment modeling, artificial intelligence, big data and other technologies to collect data on the operation of intelligent equipment and user habits, online monitoring and remote updating; tracking and monitoring the condition of equipment in real time throughout the entire life cycle, allowing customers to remotely predict hidden faults, diagnose them and service them online.
