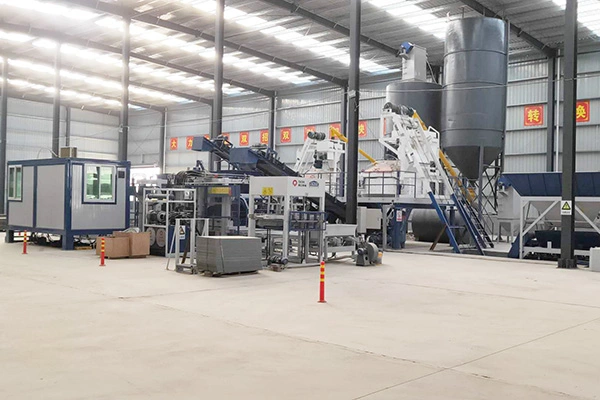

The brick making machine is a European standard machine manufactured by China QGM in strict accordance with German technology and tradition. It uses the latest servo technology, features high performance, high configuration and high performance. Can produce almost all kinds of concrete bricks and cement blocks, such as hollow blocks, solid bricks, paving stones, curb stones, etc.
Product Features
German design - higher efficiency, lower failure rate;
Made in China - lower cost, better service.

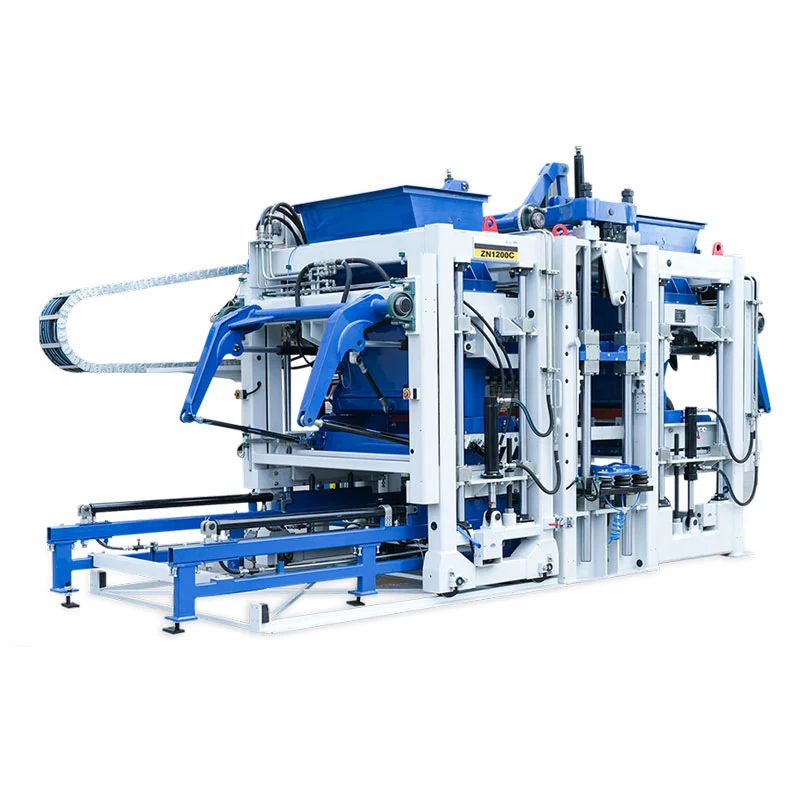

ZN1200C block machine adopts German technology, the world's leading technology for block machines. German technology is known for its rigor and simplicity, placing more emphasis on the overall performance, efficiency and quality of the machine.

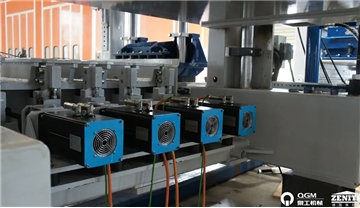

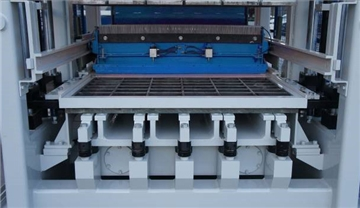

ZN1200C is an automatic block making machine designed in Germany and manufactured in China. 4 vibration motors with a power of 7.5 kW are installed in the lower part, and 2 vibrators with a power of 1.1 kW are installed in the upper part, which makes it possible to achieve a vibration force of 120 kN. The height of the product can vary from 40 to 300 mm.

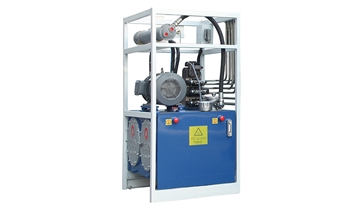

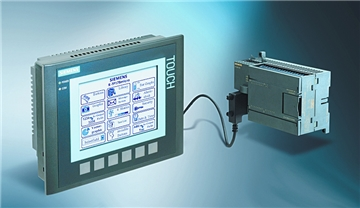

With SIEMENS PLC control system, touch screen, contactors, etc., Italian hydraulic system, automatic mold clamping system, it is one of the most efficient and stable machines in China. In terms of productivity, efficiency, energy saving, environmental protection, etc., it is far ahead of other block making machines on the market.
Technical Parameters
| Maximum molding area | 1280×850 mm |
| Block height | 40-300 mm |
| Cycle time | 14~24 s (depending on block type) |
| Servo vibration strength | 120 kN |
| Pallet size | 1350×900×(14-45) mm |
| Vibration motors at the bottom | 4×7.5 kW |
| Top vibration motors on compaction head | 2×1.1 kW |
| Control system | SIEMENS |
| Total power | 86.4 kW (including hydraulic system) |
| Total weight | 17 t (including mixing device) |
| Machine dimensions | 7510L×2760W×3400H mm (including mixing device) |
