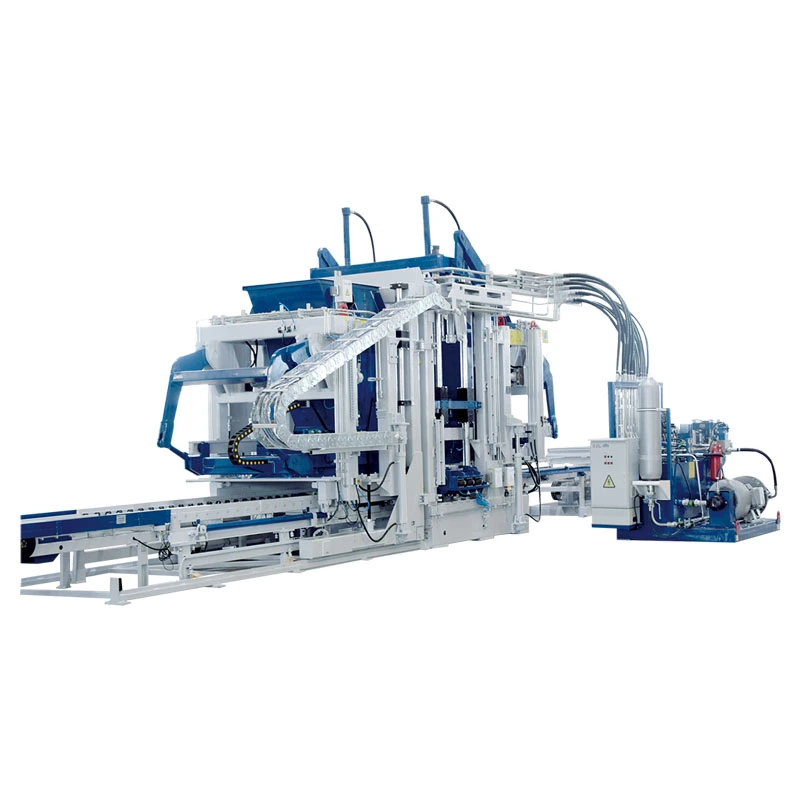

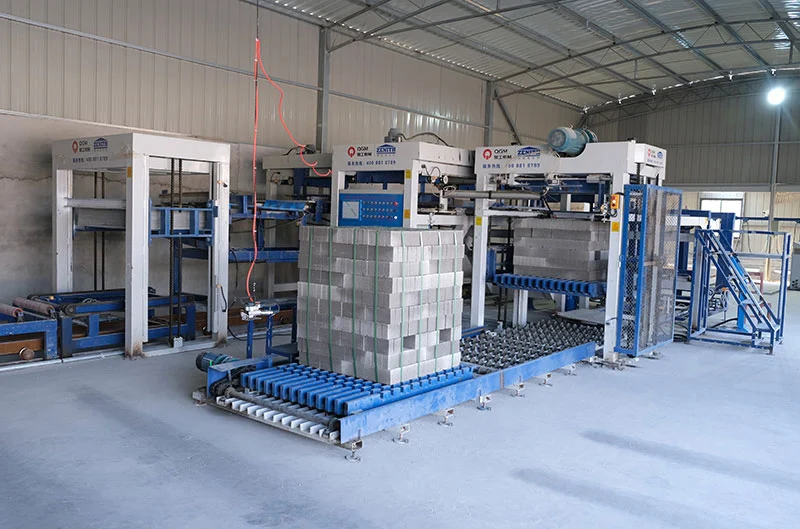

Concrete Brick Making Machine

Model:ZN1500C/1800C

Our factory specializes in the production of concrete molding machines. A concrete brick making machine is a device that uses cement concrete as raw material to produce bricks. The concrete brick making machine uses a closed conveyor belt and strictly controls the amount of fine materials stored in the semi-warehouse, allowing them to be delivered and used at any time, preventing premature liquefaction of concrete due to shock and ensuring the strength of the concrete molding machine.

Send Inquiry

Product Description

The concrete brick making machine is a European standard model, which means it fully complies with German production technology and craftsmanship, and is manufactured in China. It combines various functions and can produce standard concrete products such as paving stones, curb stones and solid bricks in large quantities. The overall structure of the concrete brick making equipment is compact, the equipment is of reasonable design, and the rotating parts are equipped with mechanized devices, which are accurate and reliable. Labor intensity is reduced and production efficiency is increased. Vertical pressure, directional vibration and variable frequency braking ensure high molding density and strength.

Features of Concrete Brick Making Machine

German design - higher efficiency, lower failure rate;
Made in China - lower cost, better service.

ZN1500C/1800C block machine adopts German technology, the world's leading block machine technology. German technology is known for its rigor and simplicity, placing more emphasis on the overall performance, efficiency and quality of the machine.

ZN1500C/1800C block machines are manufactured in China in strict accordance with German technology and craftsmanship. Compared with other brands of block machines, ZN1500C/1800C machines have more stable performance, higher production efficiency and lower failure rate. In terms of performance, efficiency, energy saving, environmental protection, etc., they are far ahead of other block machines available in the market.

Technical Parameters

Specifications	ZN1500C	ZN1800C
Maximum molding area	1300×1050mm	1300×1300mm
Block height	50-500mm	50-500mm
Cycle time	20–25 s (depending on block type)	20–25 s (depending on block type)
Vibration strength	160KN	200KN
Pallet size	1350×1100\1200×(14-50) mm	1400×1400mm
Production per mold	390×190×190 mm (15 pcs/mold)	390×190×190 mm (18 pcs/mold)
Bottom vibration	4×7.5KW (SIMENS)	4×7.5KW (SIMENS)
Tamper head vibration	2×1.1KW	2×1.1KW
Control system	SIEMENS	SIEMENS
Total power	111.3KW	About 120 kW
Total weight	18.3T(without mixing device)	19.5T(without mixing device)
Total weight	25.2T(with facemix device)	27.5T(with facemix device)
Machine size	10920×3250×4485mm	11600×3250×4500 mm

Benefits of technology

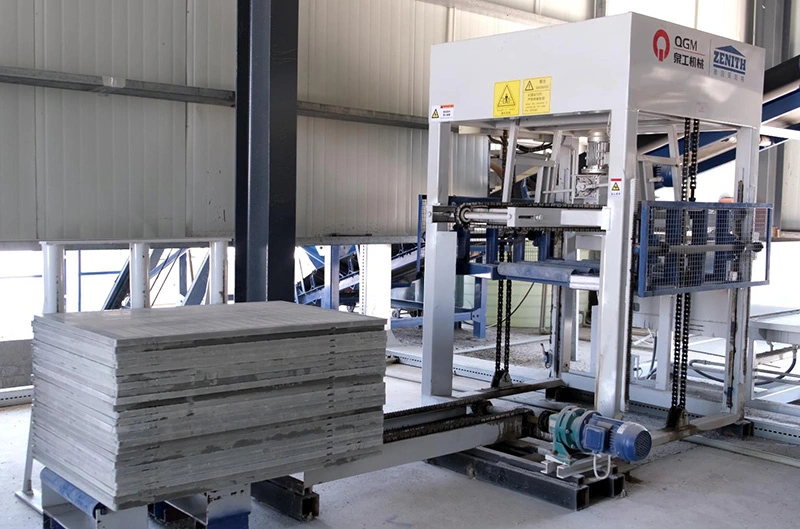

Машина для производства бетонных кирпичей

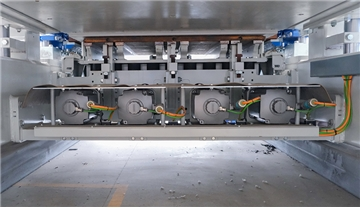

Servo vibration system

The machine is equipped with a newly developed vibration servo system, which has dense and high vibration excitation force, which ensures efficient production, especially for large and high-quality products that need to be produced by pre-vibration and transition vibration, which can achieve really good effect.

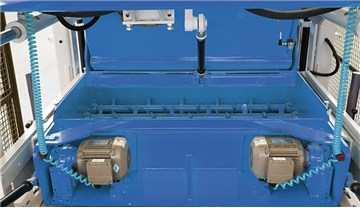

Force feeding

The feed system has a German patented design that is suitable for the use of construction waste and other special aggregates. In addition, the unloading gate is controlled by a SEW motor. The feed frame, bottom plate and mixing blades are made of high-strength Swedish HARDOX steel, which enhances sealing and prevents material leakage, ensuring long service life and uniform feeding for improved product quality.

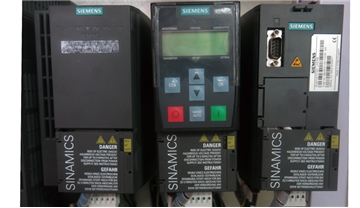

SIEMENS frequency converter control system

SIEMENS frequency conversion technology has been improved and upgraded by the German R&D center. The main vibration of the machine operates in low-frequency standby and high-frequency operation mode, which improves the working speed and product quality. At the same time, it reduces the impact on mechanical parts and the motor, extends the life of the machine and motor, and saves about 20-30% of energy compared with traditional motor control.

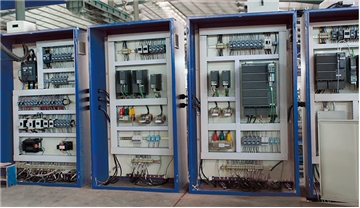

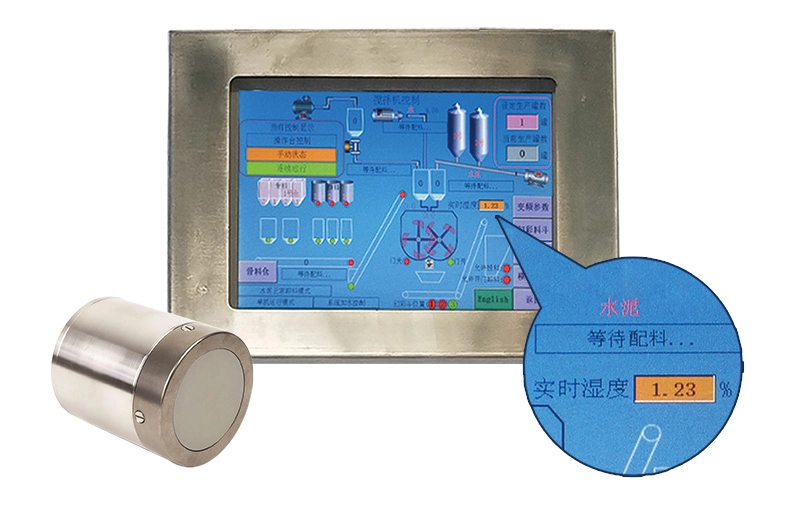

Fully automatic control

Ideally combines automation technologies and systems from Germany. Automatic control features easy operation, low failure rate and high reliability. At the same time, it has the functions of managing product recipes and collecting operational data.

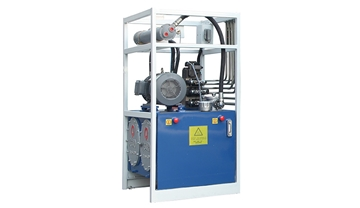

Highly efficient hydraulic system

The hydraulic pump and valve manufactured by international brand, which adopts highly dynamic proportional valve and constant displacement pump to regulate speed and pressure, features high stability, high efficiency and energy saving.

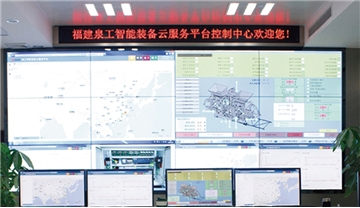

Intelligent cloud system

QGM intelligent cloud system for equipment provides online monitoring, remote updating, remote fault prediction and self-diagnosis of faults, equipment condition assessment; generates reports on the operation and condition of equipment, and also performs other functions; has the advantages of remote control and operation, fast troubleshooting and maintenance for customers. Everything is interconnected, and the production and operation of equipment can be seen through the network in every corner of the world.
