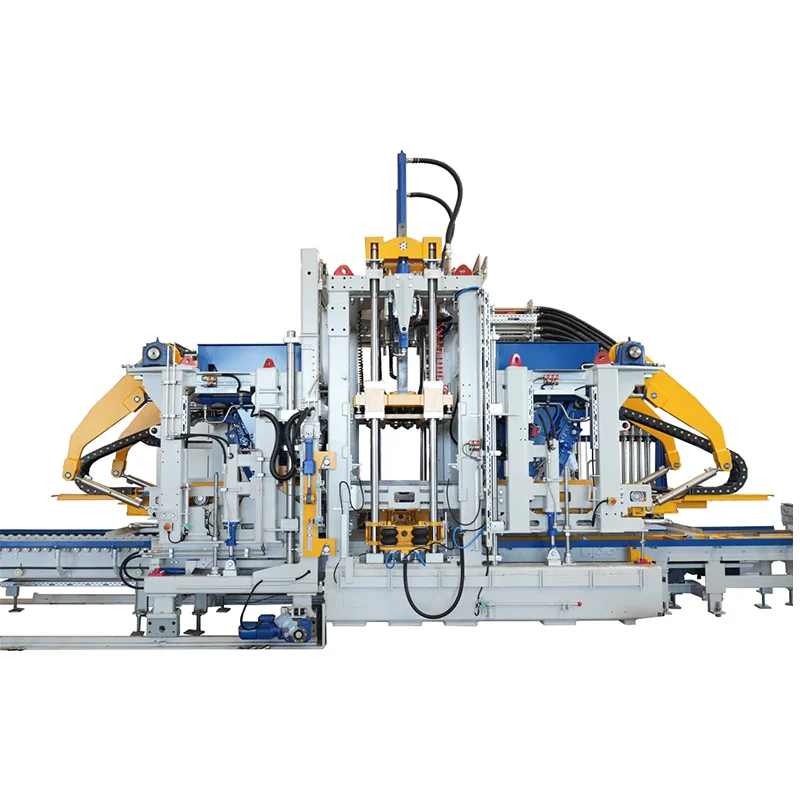

Fully automatic brick making machine

1 Zenith “Ultra-Dynamic” Four-Axis Servo Vibration Zenith “Ultra-Dynamic” four-axis servo vibration system

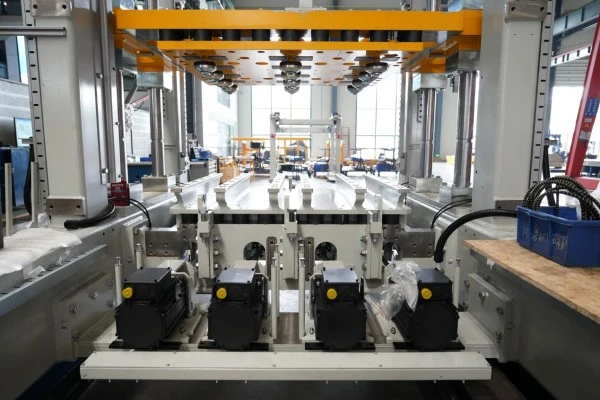

Zenith Ultra-Dynamic System is a state-of-the-art, high quality vibration technology used in the Fully Automatic Brick Making Machine. It provides precise amplitude control with extremely fast response times and flexible adjustment. The servo drive system provides high dynamics, improving mold filling and reducing production cycle times. Amplitude and frequency can be adjusted quickly and accurately.

2 Automatic quick mold change system

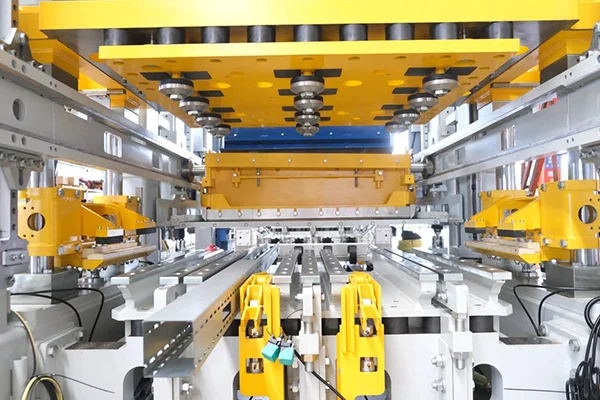

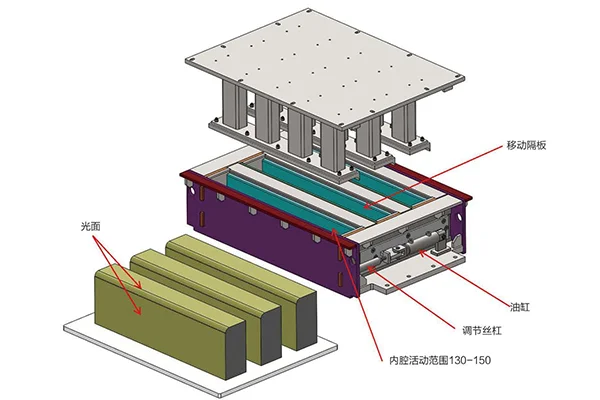

Zenith's Automatic Quick Mold Changing System is based on the coordinated operation of multiple devices to ensure intelligent, fast and accurate mold changing. After the mold is transported to the main machine, it is installed on the mold changer using a lifting system. The system automatically completes the mold replacement process without the need for manual movement, positioning or locking.

3 Overhead feeding system
The overhead feeding system is modular in design, including a hopper, scraper, tamping brush and roof breaking device. Feeding hoppers for front and main mixture are mounted on the frame, which ensures quick changeover and optimal feeding performance.

4 Hydraulic Reciprocating Arch Breaker Feeder
With hydraulic drive; The arch breaking rake moves back and forth, effectively breaking arches of material.

5 Modular main frame

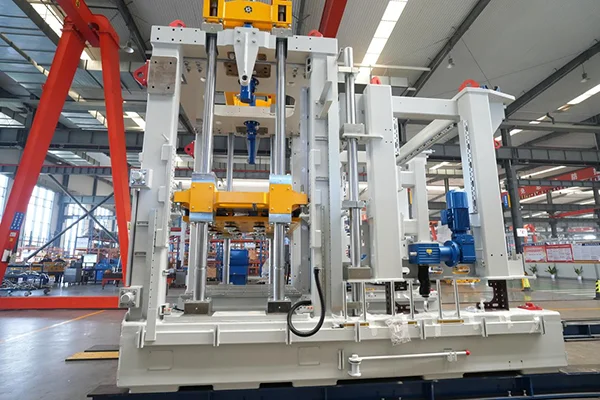

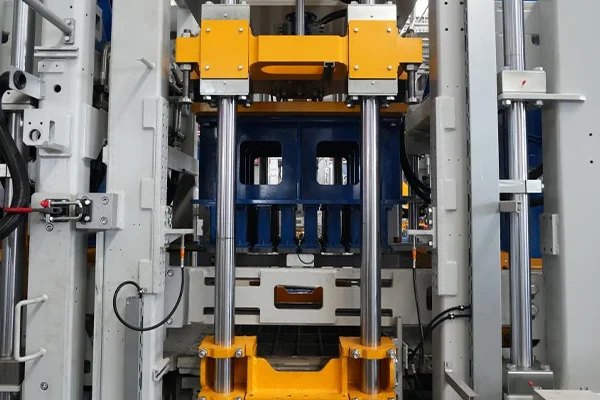

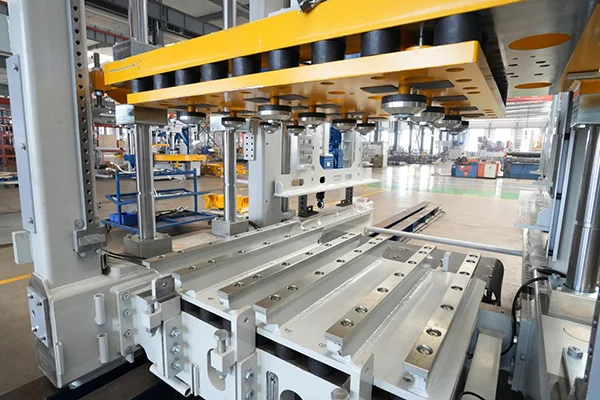

The main unit and face mixture preparation device ZN1200-2 have a modular frame design with precision assembly. Breaking the traditional design concepts, it makes extensive use of high-quality bolted connections of the frame, vibrating table, motor beams and feed system. This design ensures ultra-low maintenance costs, easy adaptation to different operating conditions and significantly reduces replacement time for wear parts.

6 Hydraulic automatic blocking of the facial mixture preparation unit

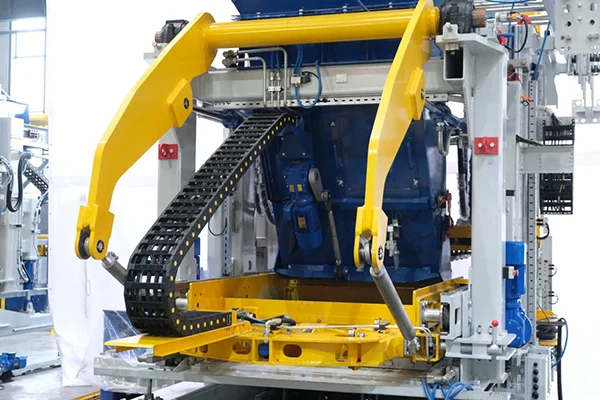

The connection between the main machine and the ZN1200-2C facing mixture preparation unit is carried out using an advanced hydraulic automatic locking system. Hydraulic cylinders activate the locking elements, reliably fixing the block for preparing the facing mixture on the main machine. If it is necessary to disconnect the block for preparing the facing mixture, the system removes the lock, and the gear motor sets the block in motion along the rails.

7 Mold locking device

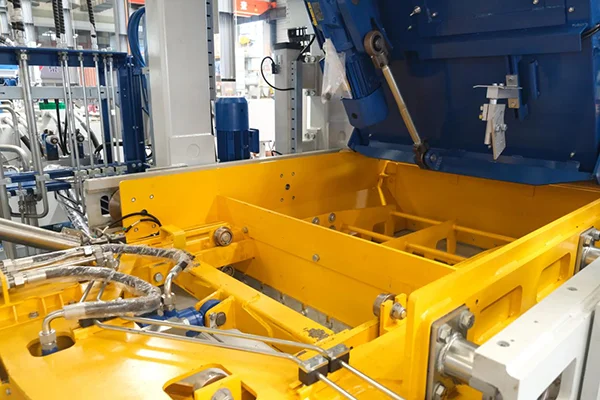

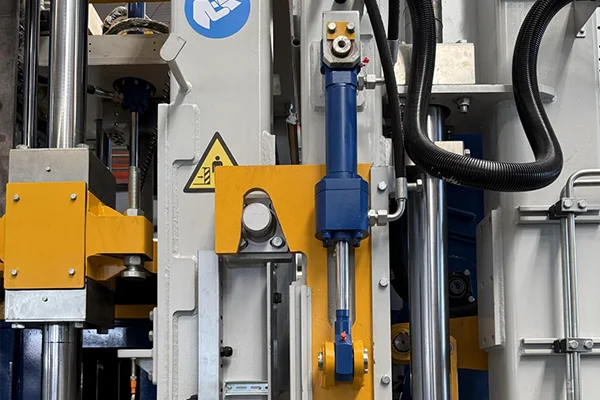

This mechanical locking mechanism consists of high-strength locking blocks, a wedge-shaped press head and double-acting hydraulic cylinders. During demolding, the cylinders actuate the locking blocks to radially clamp the press head, forming a mechanical lock. The mold is then released under constant pressure, which effectively eliminates springback and micro-movement, providing sharp brick edges, a smooth surface and greatly improving product quality.

8 Electrical adjustment of auger lift
Equipped with high-precision screw lift for automatic height adjustment, which ensures high precision, easy operation and enhanced automation.

9 Fully integrated control system

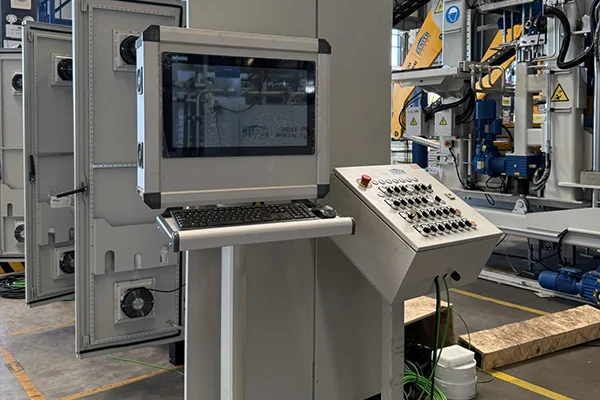

The main machine ZN1200-2 is equipped with Siemens S7-1500 series PLC (6ES7 515-2AM01-0AB0), a high-performance Siemens controller with large memory capacity, high processing speed and a wide range of functions. The HMI interface visualizes all control system signals for simple and intuitive operation.

10 Wide expansion possibilities
The ZN1200-2 is highly expandable in hardware and software. It can be equipped with a variety of additional systems such as foaming devices, dye mixing systems, pallet retrieval devices, core retrieving systems and cross cleaning brushes to meet customers' varied production needs.

11 Quangong Intelligent Equipment Cloud Platform

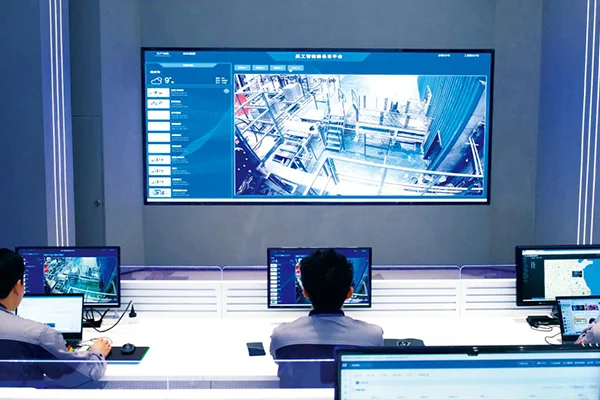

Quangong Zenith's "intelligent cloud equipment maintenance platform" provides online monitoring, remote updating, fault prediction and diagnosis, equipment condition assessment and operation reporting, providing comprehensive intelligent maintenance capabilities.
