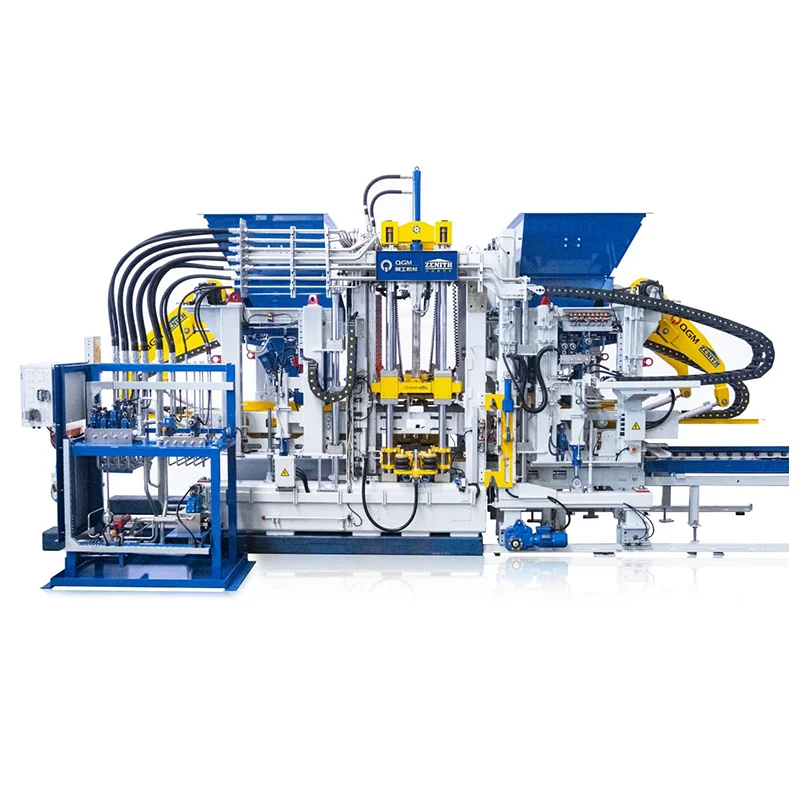

Single pallet machine

1 Vibration Table Design

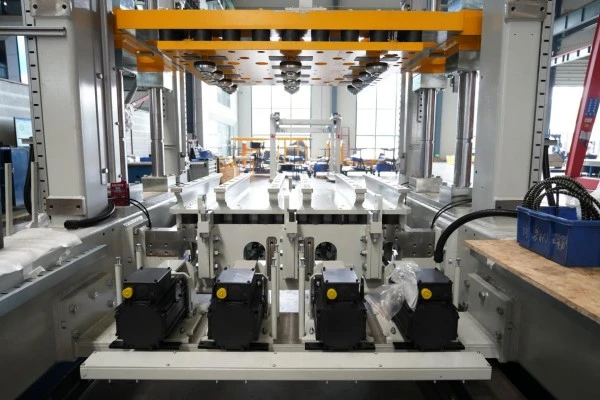

The Single Pallet Machine uses four servo motors to provide stronger and smoother vibration.
Air cushion vibration damping device
Four air cushions are located at each corner of the vibrating table to reduce vibration amplitude during vibration, which reduces the mechanical impact of the vibrating table on pallets, reducing the risk of damage to pallets during production and increasing their service life.

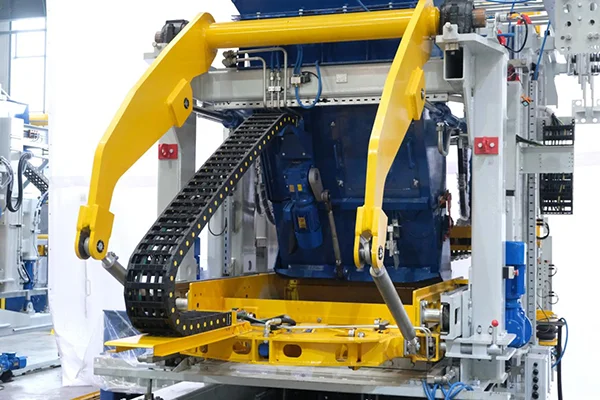

2 Quick mold change system
Clamping device with air cushion for quick mold change
The air-cushioned clamping device ensures quick mold changes, reducing replacement time from 1.5 hours to 20 minutes. A portable touch screen to control quick mold changes makes the process more convenient and visual.

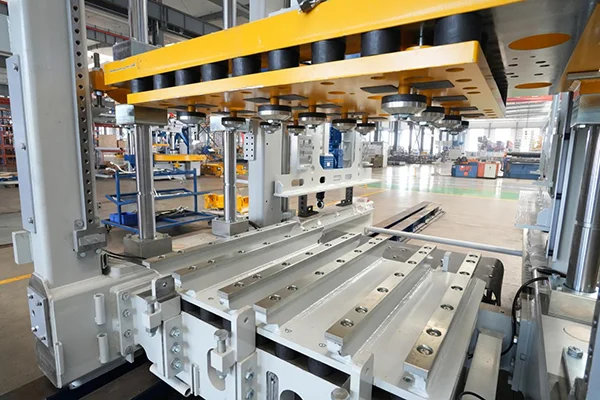

3 German version of high quality shelving design
The main frame features a high-strength welded structure using Zenith's patented technology. It is welded from special steel, custom-made. Thoughtful design, uniform and high-quality welding, and the entire frame is vibration treated to ensure high quality and high stability. Advanced structural design technology allows you to scale up the machine and add side mold opening and closing functions, plate pulling devices, polystyrene pallet installation, etc.

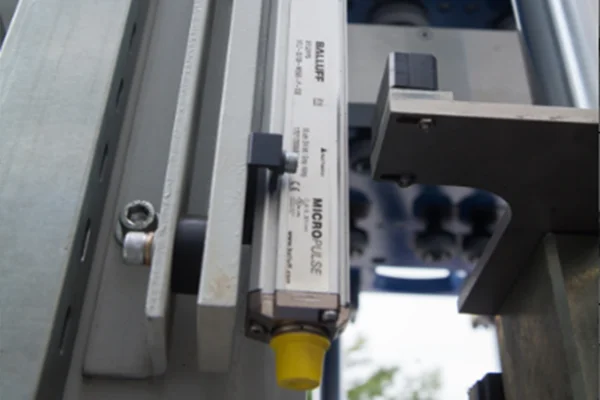

4 Linear sensor
To move the tamper:
The German BALLUFF sensor is mounted on a steel stand for more flexible, accurate and precise control of the tamper in any position. While the tamper is moving, the BALLUFF sensor can detect and control the pressure and flow of the hydraulic cylinder.
For material filling trolley:
Use the rotary encoder to precisely control the filling cart in each position. It can sense and control the pressure and oil flow of the filling cart.

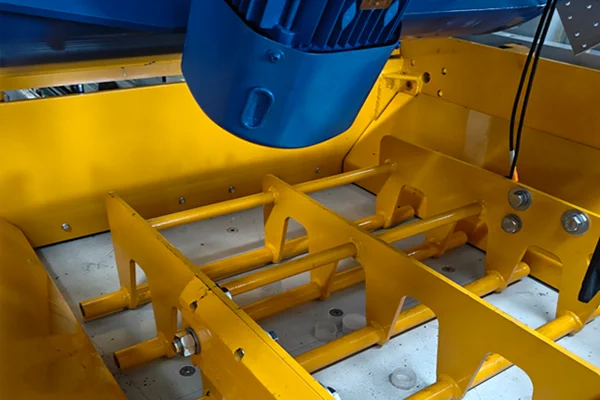

5 Intelligent Feeding System
Intelligently adjust the feeding mode according to different mold characteristics.
The feed is uniform and fast.
The feed base is made of highly durable Hardox material.
The feeding system has good tightness and a long service life.

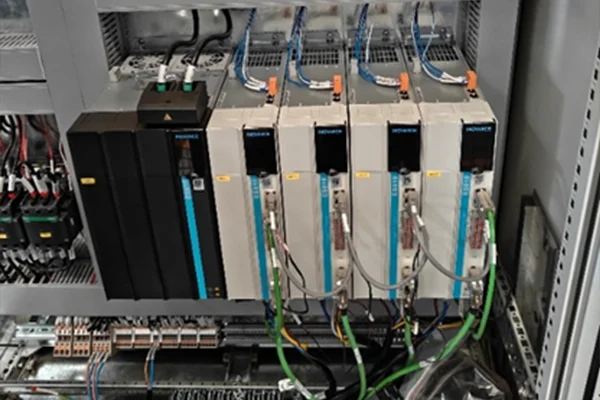

6 Precise servo control system
Thanks to feedback, the phase and speed of vibration are controlled with a high degree of synchronization; High-speed standby mode and high-frequency operation can shorten the molding cycle by 1.5s and ensure high efficiency; The servo controller is a book-type single-axis motor, and the driver adopts a standard DC bus connection method (renewable energy can be used and recovered), which can reduce power consumption by 15% and improve the braking effect.

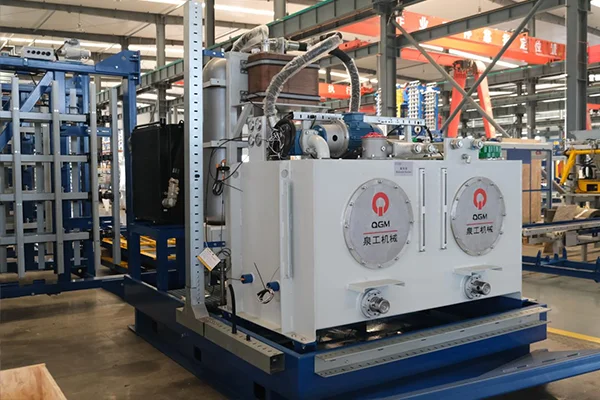

7 High precision servo-hydraulic system
High performance variable displacement pump and closed loop servo valve system. Pressure, speed and position are controlled by a digital closed loop, which automatically adjusts oil flow and pressure. High stability, high efficiency and energy saving.
Sensors connected to the main and front material feeders, as well as to the transport head, are in a closed loop. All position data is read and transmitted to the hydraulic system to control the performance and pressure of each pump.

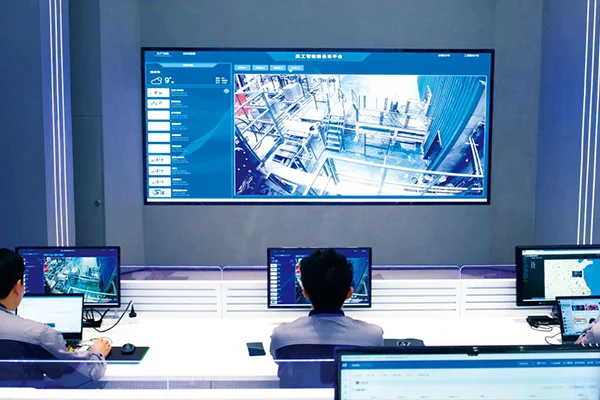

8 Leading Intelligent Cloud Service System
QGM intelligent cloud platform uses cloud technology, data transmission protocols, mobile Internet technology, equipment modeling, artificial intelligence, big data and other technologies to collect data on the operation of intelligent equipment and user habits, online monitoring and remote updating; monitors and controls machine condition in real time throughout the entire life cycle, allowing customers to remotely predict hidden faults, diagnose them and service them online.

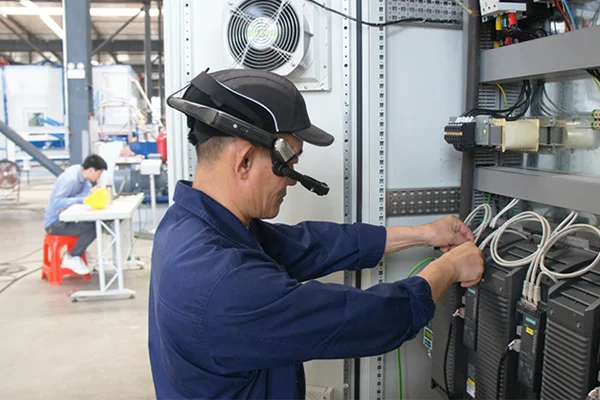

9 Smart service technology with augmented reality
The Augmented Reality O&M system, based on a cloud platform, is expanding to overcome geographic limitations and provide fast and efficient fault monitoring, remote management and processing services to customers around the world.
With AR O&M, our engineers can simply sit at the computer, annotate images sent from the customer's site, and remotely help customers troubleshoot and maintain machines using AR glasses. This significantly increases service time and troubleshooting time, and reduces economic losses caused by production downtime.
