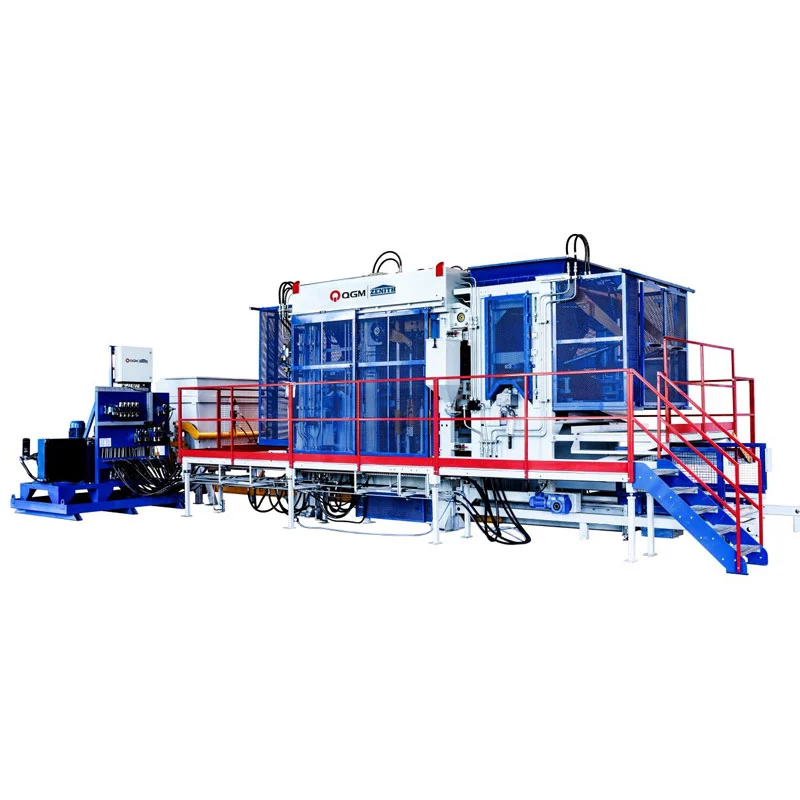

Advantages of palletless block machine:
1. Efficient production: The palletless block machine is equipped with intelligent PLC control, which is simple and intuitive to operate, ensuring efficient production process. The unique forced rotary feeding device adopts a new design, ensuring uniform feeding, high speed and quiet operation, which further improves production efficiency. 2. Energy saving and environmental protection: The equipment is made of special wear-resistant steel, which ensures long service life and effectively reduces mold costs. The palletless block machine can be used to produce bricks from waste soil or slag, including adobe bricks and washed sand adobe bricks, but it needs to add powdered soil hardeners, reflecting its advantages in resource recycling and environmental protection.
3. Cost reduction: The palletless block press implements the "free pallet" function, and only 30 pallets are required to produce 60,000 standard bricks per shift, which greatly reduces equipment investment. In addition, the equipment can easily produce bricks of various shapes, only requiring mold replacement, high adaptability and reduced production costs.
4. Diversified Production: The palletless block press can produce not only standard bricks, but also hollow bricks, porous bricks, road flower bricks, road stone bricks and other shapes of bricks, meeting the needs of different consumers and expanding product range.
An efficient hydraulic vibration and pressing system ensures high strength and product quality. The unique rotary forced feeding device has a new design, beautiful shape, uniform feeding, high speed and quiet operation. By changing different shapes, standard bricks, hollow bricks, porous bricks, road flower bricks, road stone bricks and other brick shapes can be easily produced.
Technical Parameters
| Machine parameters | |
| Product height | |
| Max. | 500 mm |
| I am. | 50 mm |
| Max. cube height | 640 mm |
| Max. Production area | 1240x1000 mm |
| Pallet size (standard) | 1270x1050x125 mm |
| VolumeBunkers for the initial mixture | About 2100 l |
| Machine weight | |
| With mixing device | About 16 t |
| Conveyor device, working platform, hydraulic station, pallet container, etc. | About 9 t |
| Machine dimensions | |
| Max. total length | 6200 mm |
| Max. overall height | 3000 mm |
| Max. Overall Width | 2470 mm |
| Machine Specifications/Consumption | |
| Top vibration | Max. 35 kN |
| Total hydraulic flow | 83 l/min |
| Working pressure | SC180 is available |
| Maximum power | Standard 50 kW 66 kW |
| Control system | Siemens S7-1500 (ЦП 317) SC |
