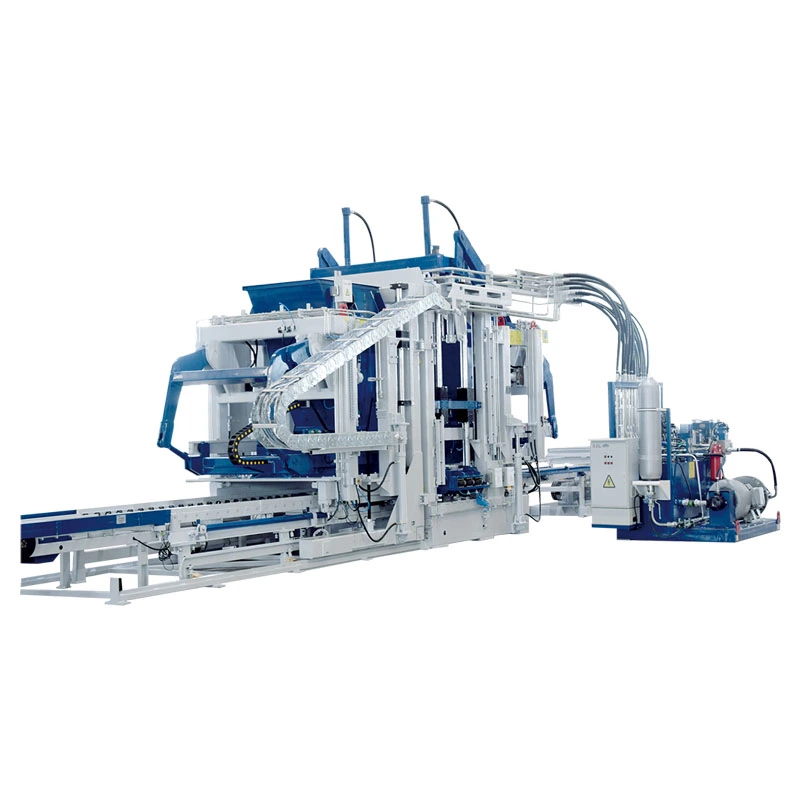

Model: ZN1500C/1800C

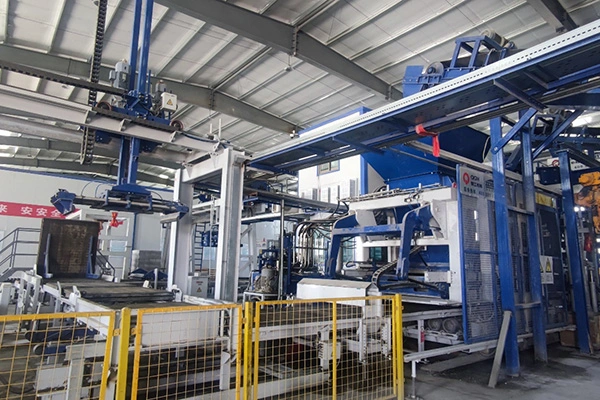

The whole set of equipment can easily serve 6 to 10 people, and this machine can realize the "no-maintenance" function. Just by changing the shape, you can easily produce standard bricks, hollow bricks, porous bricks, paving tiles, paving stone bricks and various shaped bricks. Fully automatic non-fired brick making machine, hydraulic transmission with vibration molding, the maximum strength of the formed standard bricks can reach 15MPa, which is far higher than the national compressive strength requirements of load-bearing wall materials. It can operate in automatic mode under the control of a PLC computer program. The complete set of equipment can easily serve 6 to 10 people, and this machine can realize the "unattended" function. Just by changing the shape, you can easily produce standard bricks, hollow bricks, porous bricks, paving tiles, paving stone bricks... various shape bricks. The overall structure of the 6-15 No-Kiln Brick Making Machine is strong, durable, safe and reliable. The entire process is intelligently controlled by PLC, making the operation simple and straightforward. The university's hydraulic vibration and suppression system ensures high durability and high quality products. This type of brick machine is considered environmentally friendly as it requires no fuel and produces bricks with low carbon emissions. It can be said that the production of Fully automatic retardant brick making machine has completely achieved environmentally friendly production and natural maintenance. It does not require the old method of firing bricks in a kiln and uses various waste materials for mixing. This not only reduces costs and gives very good results, but also does not require the use of land resources as raw materials.
Features of Fully Automatic Unfired Brick Making Machine:
1. The overall structure of the input is strong, durable, safe and reliable.

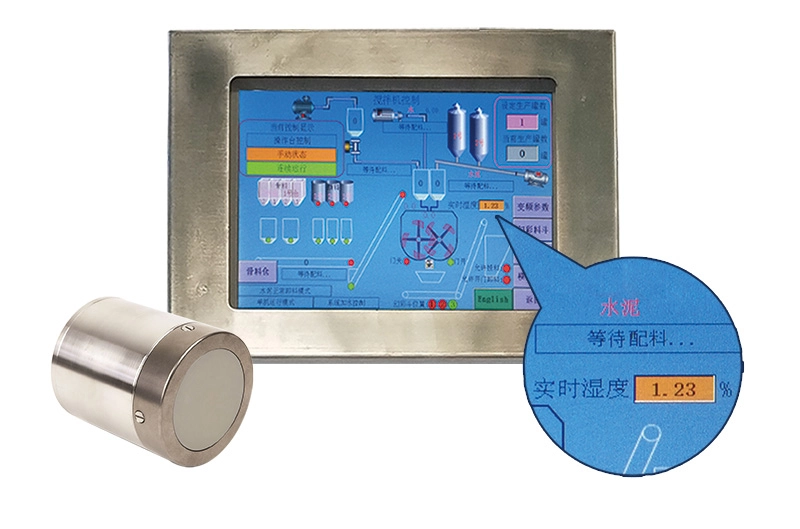

2. The whole process is intelligently controlled by PLC, making the operation simple and clear.

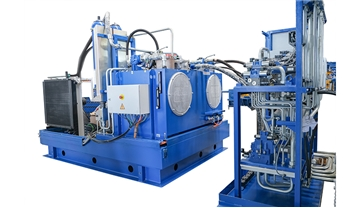

3. University hydraulic vibration and suppression system ensures high durability and high quality products.

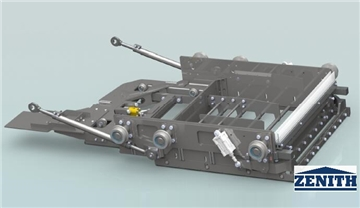

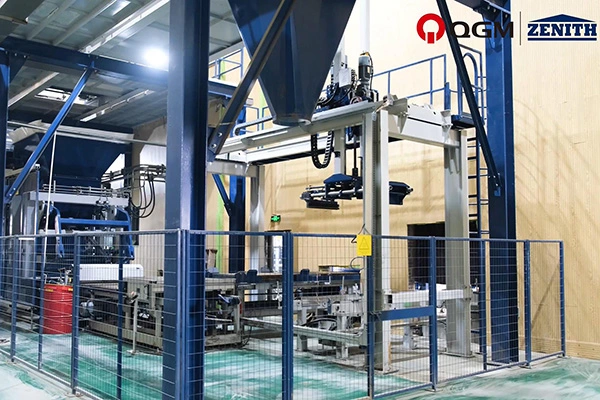

4. The unique fabric forced rotation device has a new design, beautiful appearance, uniform fabric, high speed and no noise.

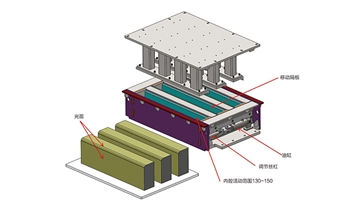

5. Special wear-resistant steel material ensures long-term use and effectively reduces mold costs.
Product Features
German design - higher efficiency, lower failure rate;
Made in China - lower cost, higher level of service.
The Zenith ZN Series, which offers high cost-effectiveness, is the world leader in German technology for the production of concrete block machines. She is known for her rigor and simplicity. It doesn't put much emphasis on "flashy" design, but rather focuses more on the overall performance, efficiency and quality of the machine.
German Zenith ZN series products are strictly manufactured in China according to German technology and production processes. Compared with block-forming machines of domestic brands, the products have more stable running characteristics, higher brick production efficiency and lower failure rates. In terms of productivity, efficiency, energy saving and environmental protection, it is significantly ahead of domestic products of the same type.
Technical Parameters
| Options | ZN1500C | ZN1800C |
| Maximum molding area | 1300×1050 mm | 1300×1300 mm |
| Finished product height | 40-500 mm | 40-500 mm |
| Cycle of formation | 15~25 seconds (depending on product shape) | 15~25 seconds (depending on product shape) |
| Excitation strength | 160 kN | 200 kN |
| Pallet size | 1350×1100\1200×(14-50) mm | 1400×1400 mm |
| Number of molding blocks | 390×190×190 mm (15 blocks/mold) | 390×190×190 mm (18 blocks/mold) |

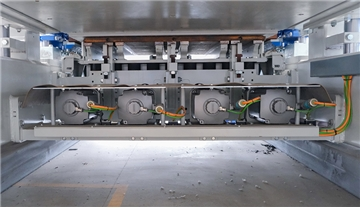

| Vibrating table | 4×7.5 kW (SIEMENS) | 4×12.1 kW |
| Upper die vibration | 2×1.1 kW | 2×1.1 kW |

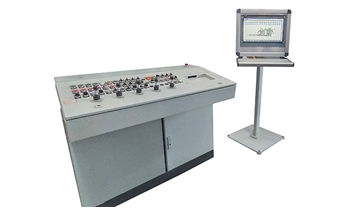

| Electronic control system | SIEMENS | SIEMENS |
| Total installed capacity | 111.3 kW | About 120 kW |
| Total weight | 18.3 t (without fabric device) | 19.5 t (without fabric device) |
| 25.2 t (with fabric device) | 27.5 t (with fabric device) | |
| External dimensions | 10920×3250×4485 mm | 11600×3250×4500 mm |
