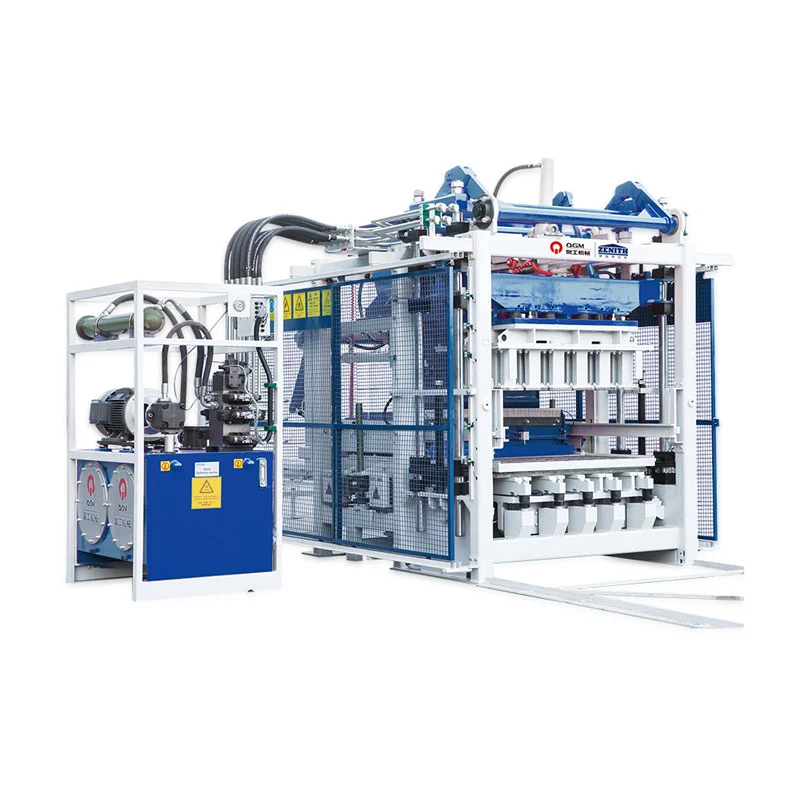

Brick machine is the full name of mechanical equipment for making bricks. It is mainly divided into three types: vibration forming, hydraulic forming and combined hydraulic vibration forming. The brick making machine uses stone flour, fly ash, slag, gravel, sand, water, etc. as raw materials and molds various types of bricks such as cement bricks, hollow blocks, colored bricks, etc. using hydraulic, vibration or pneumatic methods. The brick making machine is widely used in the production of building materials, construction of roads, bridges, tunnels, hydraulic structures and other infrastructure. The brick making machine has a compact structure, is convenient to operate, does not pollute the environment and has a low noise level. The two-stage vacuum brick extrusion machine adopts two-stage extrusion technology, which is highly efficient, energy-saving and environmentally friendly. The environmental and environmental performance of the fully automatic brick making machine is also obvious, and the environmental protection effect of its products is very noticeable, so it is called the green and environment-friendly brick making machine. The brick making machine focuses on safety and environmental protection in design. By adopting advanced technology and environmentally friendly materials, it achieves the goals of high efficiency, energy saving and emission reduction, and meets the environmental protection requirements of modern industrial production.
Technical Parameters
| Forming area | 1100×820 mm |
| Finished product height | 50-300 mm |
| Cycle time | 15-25 s (depending on the shape) |
| Vibration strength | 80 kN |
| Pallet size | 1200x870x（12-45）mm |
| Performance per form | 390x190x190 mm (10 pcs/mold) |
| Bottom vibration | 2x7.5 kW (SIEMENS) |
| Upper vibration | 2x0.55 kW |
| Electrical control | SIEMENS |
| Power | 42.25 kW |
| Total weight | 8 t (without Facemix) 11 t (with Facemix) |
| Dimensions | 6145x2650x3040 mm |
Technological advantages

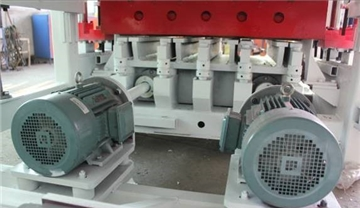

QGM SIEMENS frequency conversion technology has been improved and upgraded by the German R&D center. Vibration block making uses low-frequency standby mode and high-frequency operation, which improves the working speed and product quality. At the same time, the impact on mechanical parts and the engine is reduced, the life of the machine and engine is extended, and about 20-30% of energy is saved compared to a traditional engine.

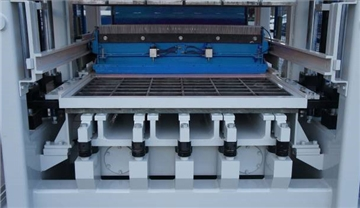

The vibration table is made of high-strength Swedish HARDOX steel and consists of a dynamic and static table, which significantly increases the efficiency of vibration. At the top there are two more vibrators, which increase the density and guarantee high quality concrete blocks.

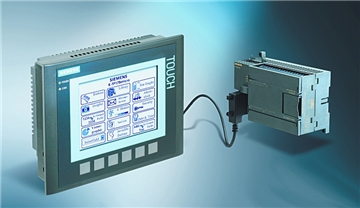

QGM control system uses SIEMENS PLC, touch screen, contactors, buttons, etc., which perfectly combine automatic technology and advanced system from Germany. SIEMENS PLC has an automatic fault clearing function to facilitate maintenance, as well as an automatic locking function to prevent mechanical accidents caused by operating errors. SIEMENS touch screen can display production status in real time and provides easy operation through visualization. If any part breaks down in the future, a replacement part can be purchased locally, saving a lot of time and money.

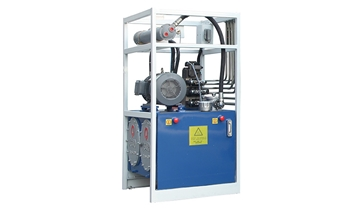

The hydraulic pump and valve manufactured by international brand, which adopts highly dynamic proportional valve and constant displacement pump to regulate speed and pressure, features high stability, high efficiency and energy saving.

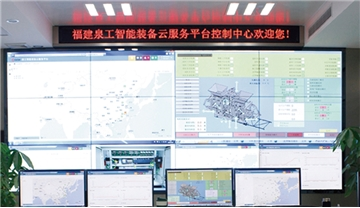

QGM intelligent cloud equipment system realizes online monitoring, remote updating, remote fault prediction and self-diagnosis of faults, equipment condition assessment; generates reports on the operation and condition of equipment and performs other functions; has the advantages of remote control and operation, fast troubleshooting and maintenance for customers. Everything is interconnected, and the production and operation of equipment can be traced through the network anywhere in the world.
Additional equipment

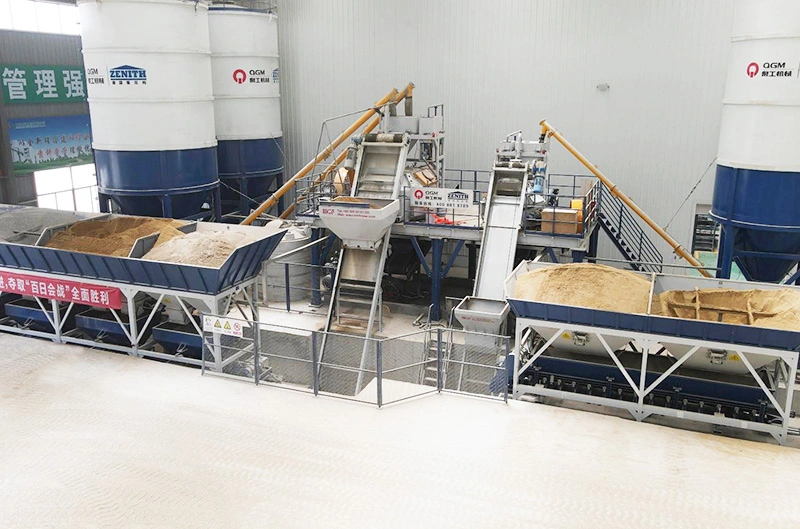

Dispenser

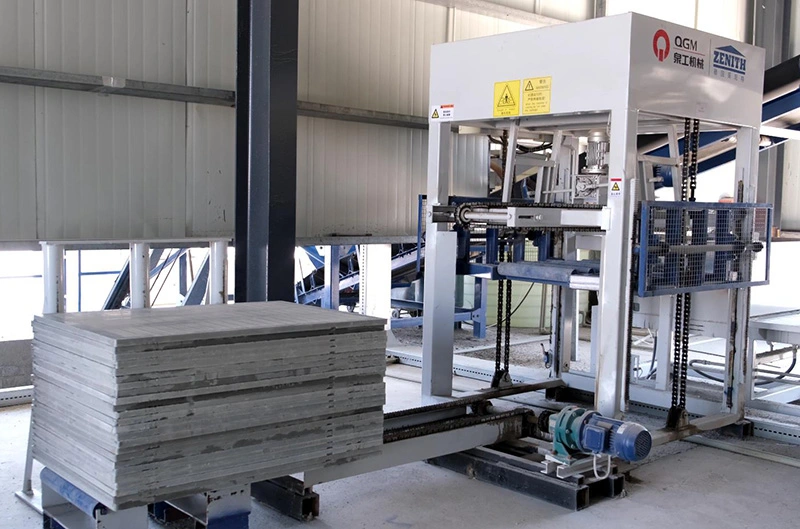

Automatic pallet feeder

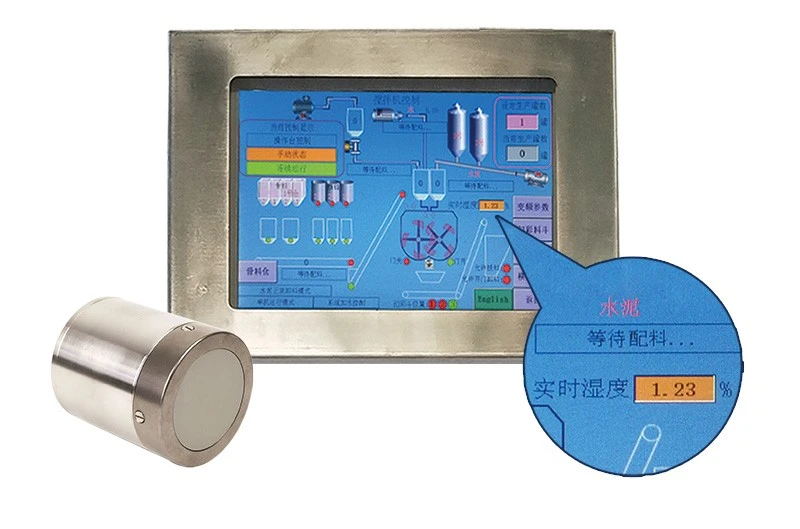

Humidity sensor

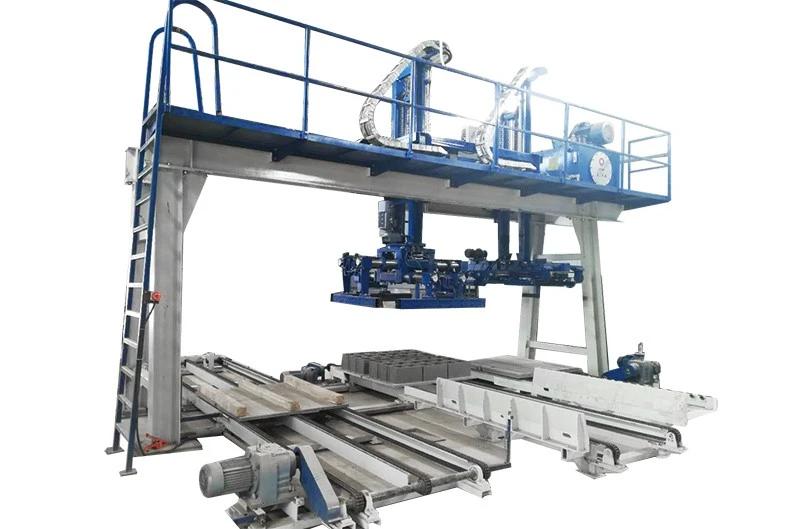

Finger machine
Pallet block separator

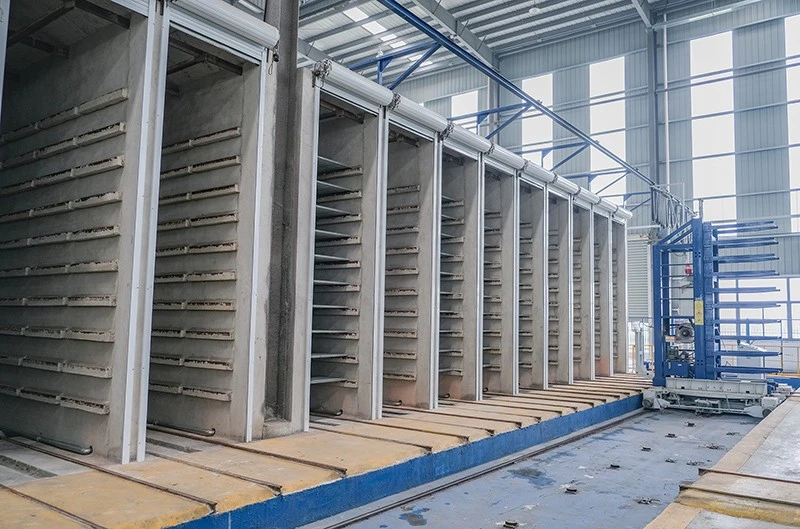

Curing chamber
Block Pushing Cube
