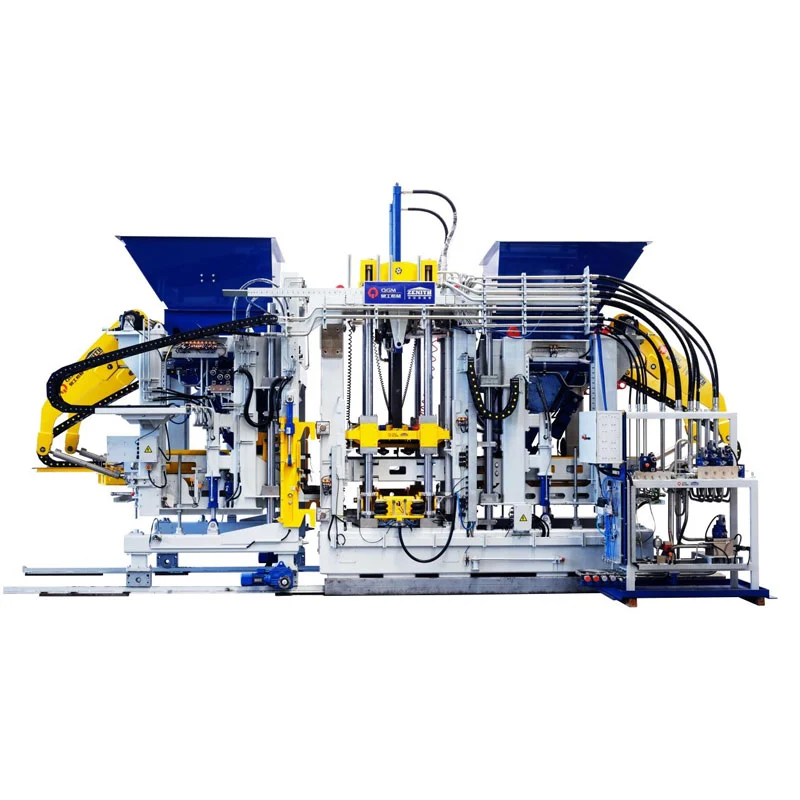

Advantages of brick laying machine:
1. The operating system is controlled by a programmable controller and touch screen human-machine interface, equipped with data input device, safety logic control system and fault diagnosis system, which can realize the perfect dialogue between man and machine.
2. Performs work in manual, semi-automatic and fully automatic modes. The parameters of each drive can be customized as desired. The quality and effectiveness of the product are guaranteed.
3. Made of high strength steel using special welding technology. Provides rigidity of the machine body, high weight and lack of resonance with the excitation system. This allows you to extend the life of the machine.
4. Three-cylinder pressure, uniform force in the concrete forming process, eliminates the disadvantages of traditional hydraulic block machines that vibrate without pressure, and achieves high pressure, large forming quantity, high compressive and flexural strength of cement-saving blocks, and pallet saving.
The scope of application of the brick laying machine is as follows:
The brick laying machine is widely used in housing construction, public buildings, garden landscaping and other fields. Especially in large-scale projects, it is receiving more and more attention and application. The brick laying machine is easy to operate, convenient and fast, and does not require too many professional skills.
PARAMETERS PRODUCT
| Product height | |
| Maximum | 500 mm |
| Minimum | 40 mm |
| Pallet size | |
| Maximum production area (on standard size pallets) | 1400x1200/1100 |
| Pallet size (standard) | 1320x1150/1050 |
| Hopper bottom material | |
| Capacity/l | 2500 |
| Fabric silo | |
| Capacity/l | 2500 |
| Machine weight | |
| Main engine with hydraulic system | About 35 tons |
| Fabric machine | About 10 tons |
| Equipment size (main machine and fabric machine) | |
| Maximum overall length/mm | About 8500 |
| < p >Maximum overall height/mm | About 4700 |
| Maximum overall width/mm | About 3300 |
| Vibration system | |
| Maximum exciting force of vibrating table/kN | 175 |
| Maximum driving force of the pressure head/kN | 0 |
| Hydraulic system | |
| General traffic | 400 l/min |
| Working pressure | There are 180 |
| Electrical parameters | |
| Total power (reference)/kW | 170 |
| Control system | TIA Portal platform Siemens S7 series |
| operating system | Siemens touch screen |
