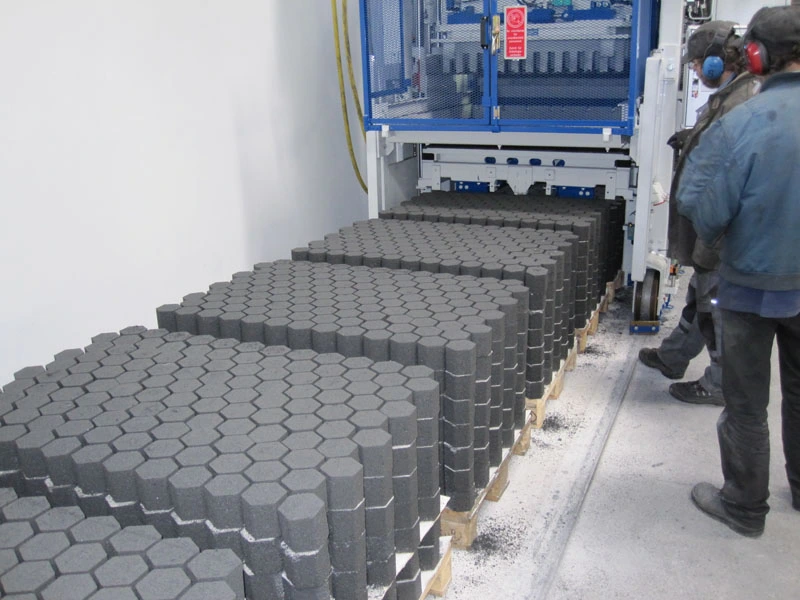

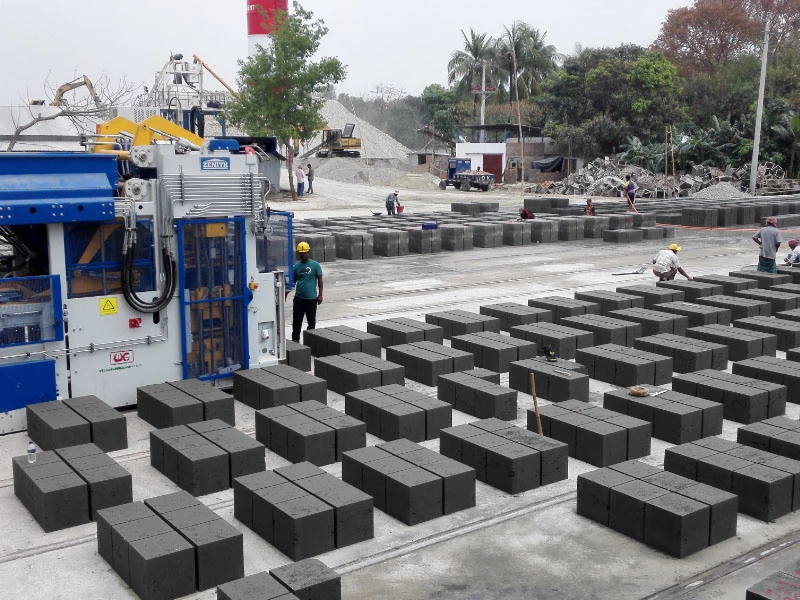

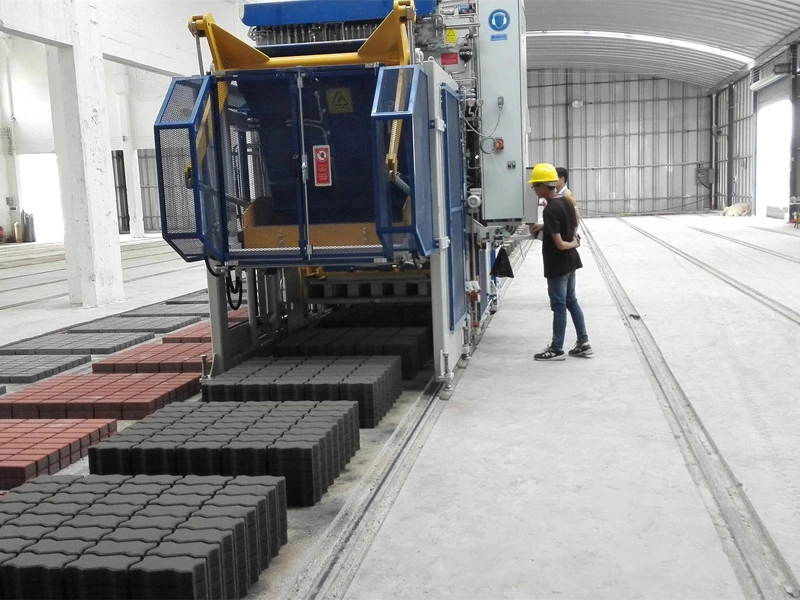

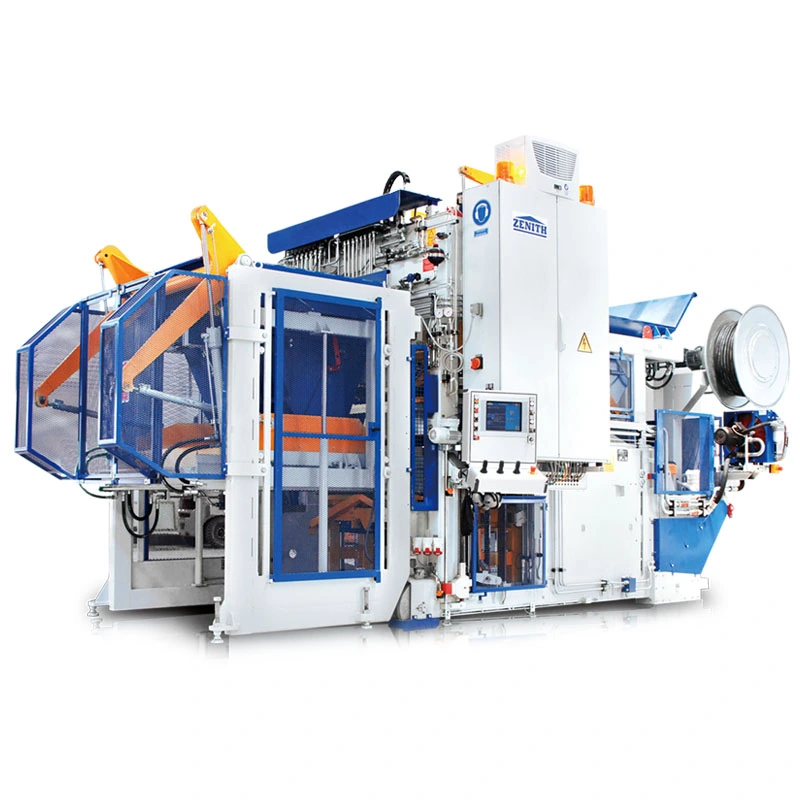

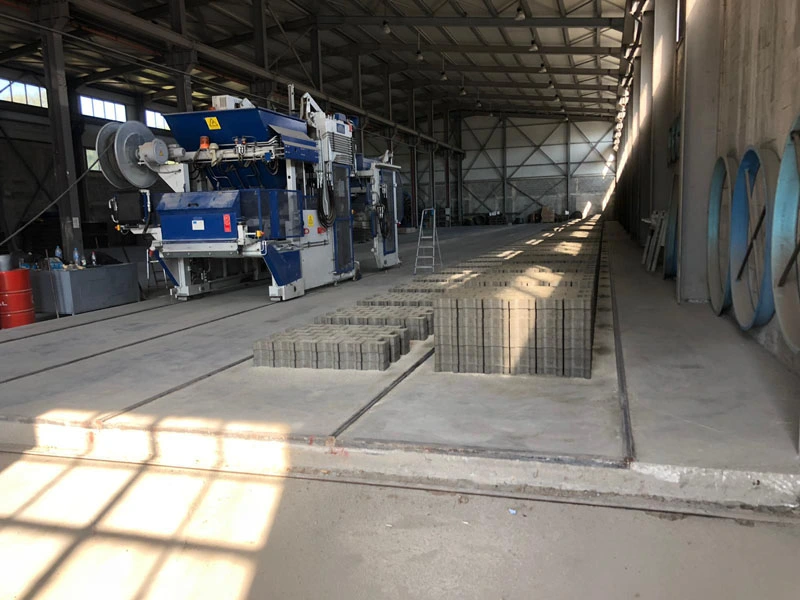

Fully Automatic Mobile Sand Brick Sand Block Equipment is one of the most advanced of its kind in the world. The equipment integrates multiple functions and can mass produce almost all kinds of hollow bricks, paving stones, curb stones, permeable bricks and other concrete products used in the market. It combines high performance, high efficiency and low failure rate, and is the most competitive star product.

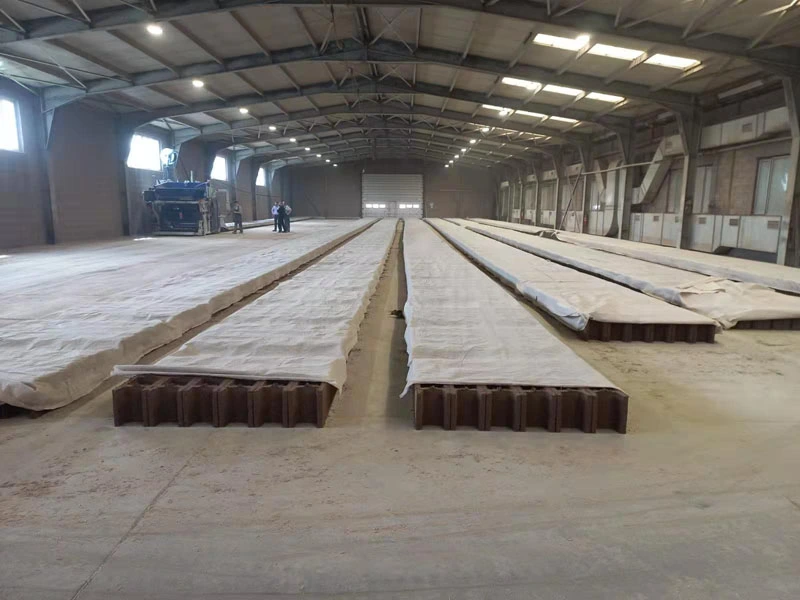

This fully automatic block forming machine has good raw material adaptability and can meet the requirements of large-scale use of solid waste, fly ash and other industrial waste as raw materials. The multi-layer production function of the equipment has great advantages. A wet brick stack can be stored immediately and then packaged, eliminating many intermediate handling processes.
Product Features
This fully automatic block forming machine has international advanced technology and can produce various non-standard special products that cannot be produced by single pallet equipment. It can cost-effectively produce high-quality concrete cable trays, manholes, prefabricated parts and other special products. Product specifications can reach 1.2 meters in length and 1 meter in height.

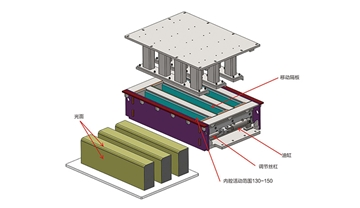

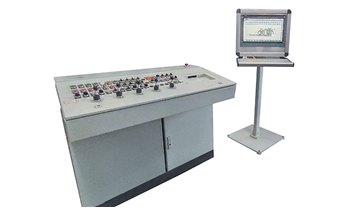

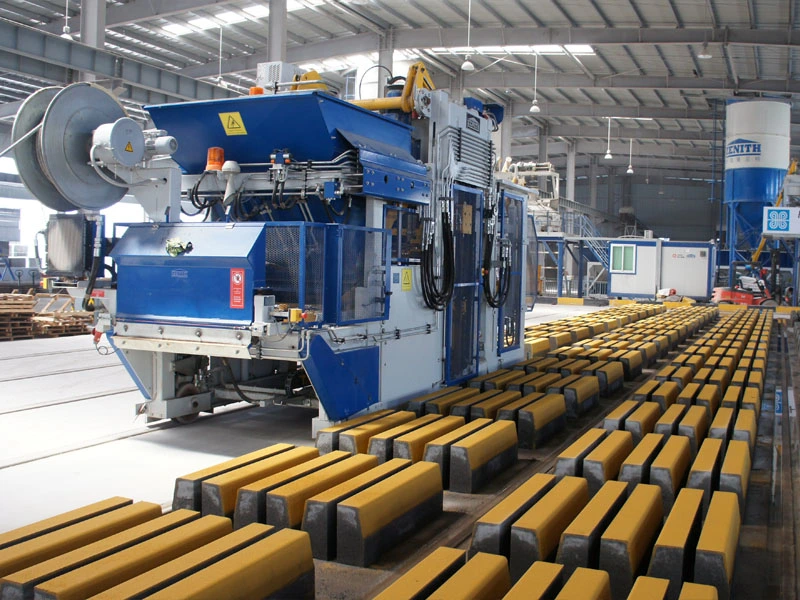

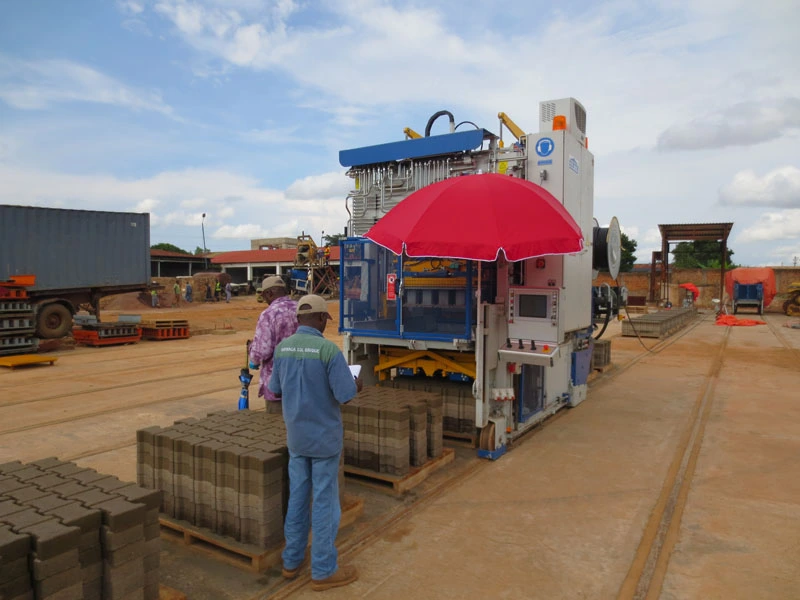

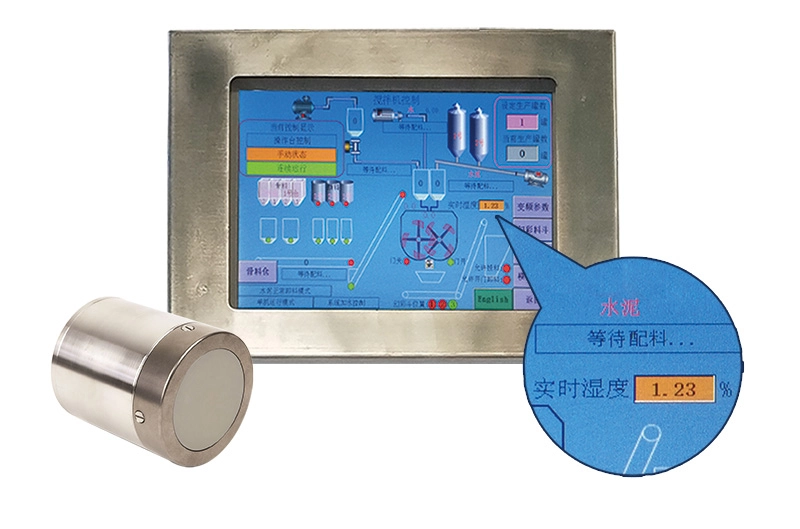

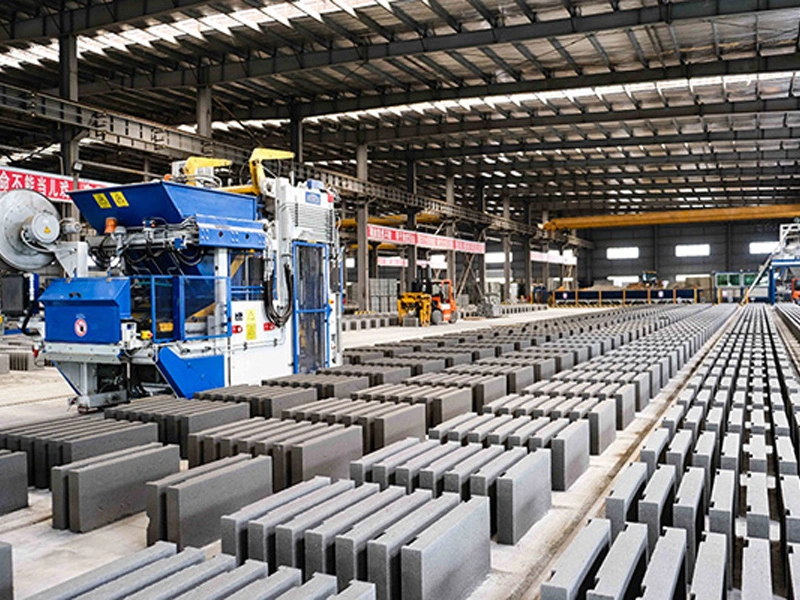

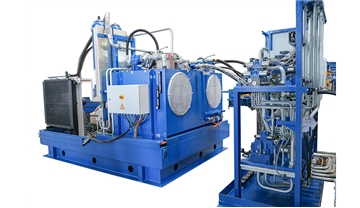

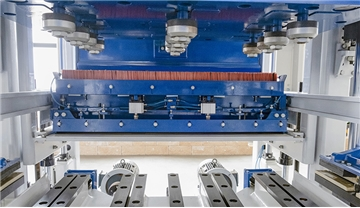

The equipment is equipped with high-strength guide wheels to ensure mobile production. Hydraulic drive, stable and reliable, the front wheel has hydraulic brake system and precise positioning. The production movement can be controlled and adjusted using the touch screen. The mold frame and pressure head of the equipment move synchronously along the large-size guide column and guide shaft through the chain and lever shaft, ensuring the safe, stable and accurate movement of the mold frame and pressure head; In addition, a linear encoder can be installed to further improve the movement accuracy.
Technical Parameters
| Characteristic | |
| Hopper for base mixture (loading the hopper with a forklift) | 1200L |
| Hopper for base mixture (loading with a flying bucket) | 2000L |
| Hopper for face mixture (loading the hopper with a forklift) | 800L |
| Bunker for facial mixture (loading with a flying bucket) | 2000L |
| Max. dump truck loading height | 2800mm |
| Molding area | |
| Max. molding area | 1240*1000mm |
| Max. width of moldings (production of ground layer) | 1240mm |
| Product height | |
| Multilayer production | |
| Minimum product height (produced on a pallet) | 50 mm |
| Max. height | 250 mm |
| Max. stacking height (pallet height + first layer product height) | 640 mm |
| Low production (production on pallets) | |
| Max. height | 600 mm |
| Low production (on-site production) | |
| Max. height | 650 mm |
| Produced directly on the floor | |
| Max. height | 1000 mm |
| Min. height | 250 mm |
| Machine weight | |
|
Total machine weight |
15.5 T |
| Machine Dimensions | |
| Total length (excluding face-mix device) | 4400 mm |
| Total length (including face-mix device) | 6380 mm |
| Maximum total height | 3700 mm |
| Minimum total height (transport height) | 3240 mm |
| Total width (including control panel) | 2540 mm |

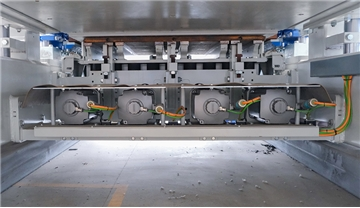

| Vibration system | |
| Max. table vibration force | 80 KN |
| Max. upper vibration force | 40 KN |
| Energy consumption | |
| According to the maximum number of vibration motors | 48 KW |
