New brick making equipment designed and manufactured keeping in mind similar characteristics and market needs at home and abroad. It features compact structure, large pressing force, high rigidity, completely sealed and dustproof, circulation lubrication, easy operation, high performance and durability. Feeding speed change, turntable rotation and other parts of the brickless brick making machine adopt the most advanced technology, which has the advantages of large transmission force, smooth operation, precise positioning and low maintenance frequency.
Using equipment for making bricks without bricks:

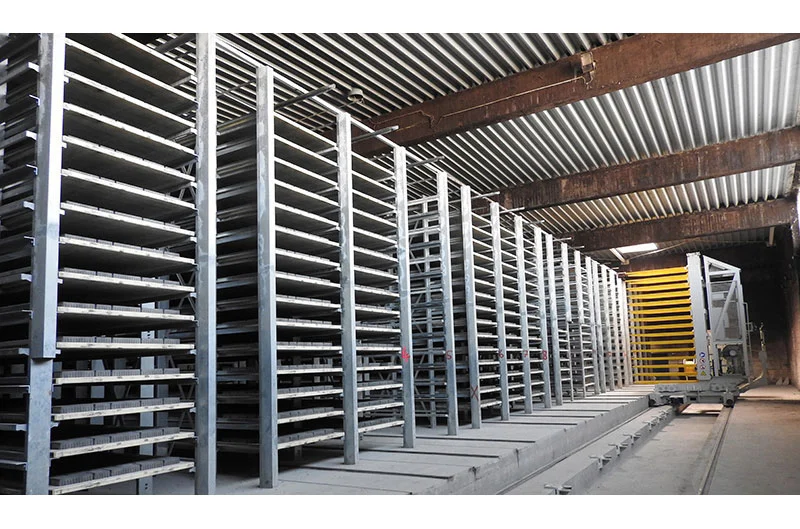

Mainly used to add a certain proportion of cement or white ash and other cementitious materials to basic raw materials such as fly ash, river sand, sea sand, mountain sand, mineral powder, slag, stone powder, coal slag, coal gangue, tailings slag, chemical slag, etc. to produce bricks. Pressing. Depending on the different shapes, the products can be pressed into standard bricks, porous bricks, blind hole bricks, hollow bricks, paving bricks and bricks with special requirements; Depending on the subsequent curing process, they can be divided into bricks that are naturally cured without firing and bricks that are cured in an autoclave using steam (autoclave bricks), etc.
Advantages of products made on a brick machine:
Environmental protection: The non-kiln brick making machine is a brick making equipment made of environmentally friendly materials. Its production process does not require the combustion of fuels such as wood or coal, so it does not produce harmful gas emissions such as carbon dioxide, which is environmentally friendly and safe for the environment.
Energy Saving: A non-kiln brick making machine is a machine that uses pressure to press mixed raw materials into bricks. Compared with traditional brick making machines, it can greatly reduce energy consumption and save resources such as electricity and water.
Economical: Compared with traditional brick making equipment, non-brick making equipment is more economical and affordable, and its production cost is also lower than traditional brick making machines. Using a brickless brick making machine can reduce costs and improve efficiency. role.
Product Features
German design - higher efficiency, lower failure rate;
Production in China - lower cost, higher level of service.

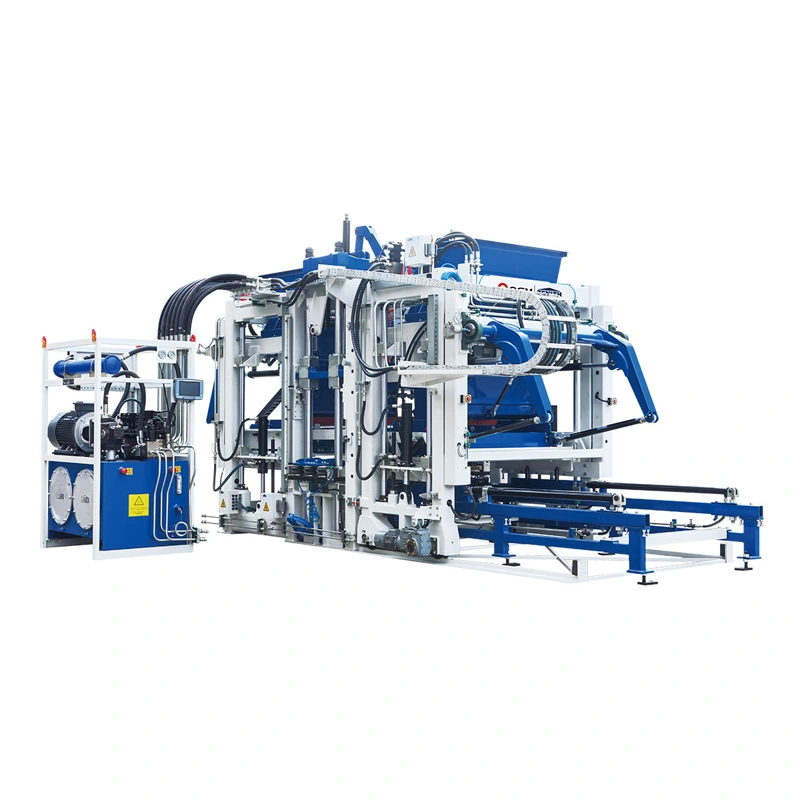

The Zenith ZN Series, which offers high cost-effectiveness, is the world leader in German technology for the production of concrete block machines. She is known for her rigor and simplicity. It doesn't put much emphasis on "flashy" design, but rather focuses more on the overall performance, efficiency and quality of the machine.
Products of the German Zenith ZN series are manufactured in China in strict accordance with German technologies and production processes. Compared with block-forming machines of domestic brands, the products have more stable running characteristics, higher brick production efficiency and lower failure rates. In terms of productivity, efficiency, energy saving and environmental friendliness, it is significantly ahead of domestic products of the same type.
Technical Parameters
| Maximum molding area | 1300×650mm |
| Finished product height | 40-300mm |
| Cycle of formation | 14~24 seconds (depending on product shape) |
| Excitation force of two-axis servo drive | 100KN |

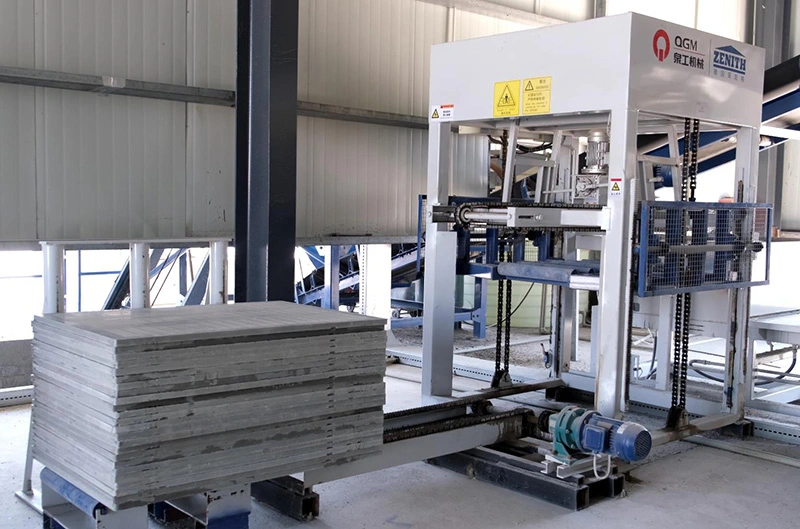

| Pallet size | 1350×700×(14-35)mm |
| Servo motor | 2×12 kW/unit |
| Discharge pipe vibration | 2×1.1KW |

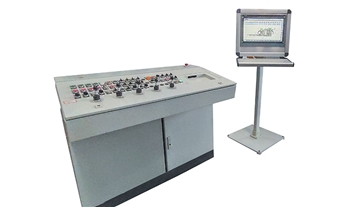

| Electronic control system | SIEMENS |
| Total power | 52.6KW |
| Total weight | 17T (including fabric making machine and mold) |
| External dimensions | 6300×2800×3500mm |
