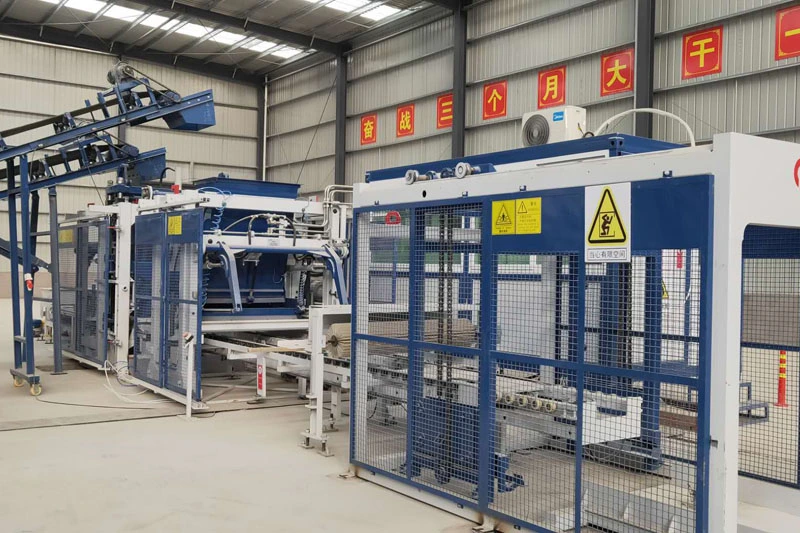

These machines use vibration and pressure to compress a mixture of cement, sand or gravel and water into the desired shape and size. The blocks produced by these machines come in different sizes and shapes and can be full or hollow. Block machines are widely used in the construction industry as they offer a fast and efficient way to produce concrete blocks of various types and sizes. The concrete block machine is a European standard machine manufactured by China QGM in strict accordance with German technology and tradition. It uses the latest SIEMENS servo technology or frequency vibration, features high performance, high configuration and high performance. Can produce almost all kinds of concrete bricks and cement blocks, such as hollow blocks, solid bricks, paving stones, curb stones, etc.
Features of Concrete Block Making Machine
German design - higher efficiency and lower failure rate;
Made in China - lower cost and better service.

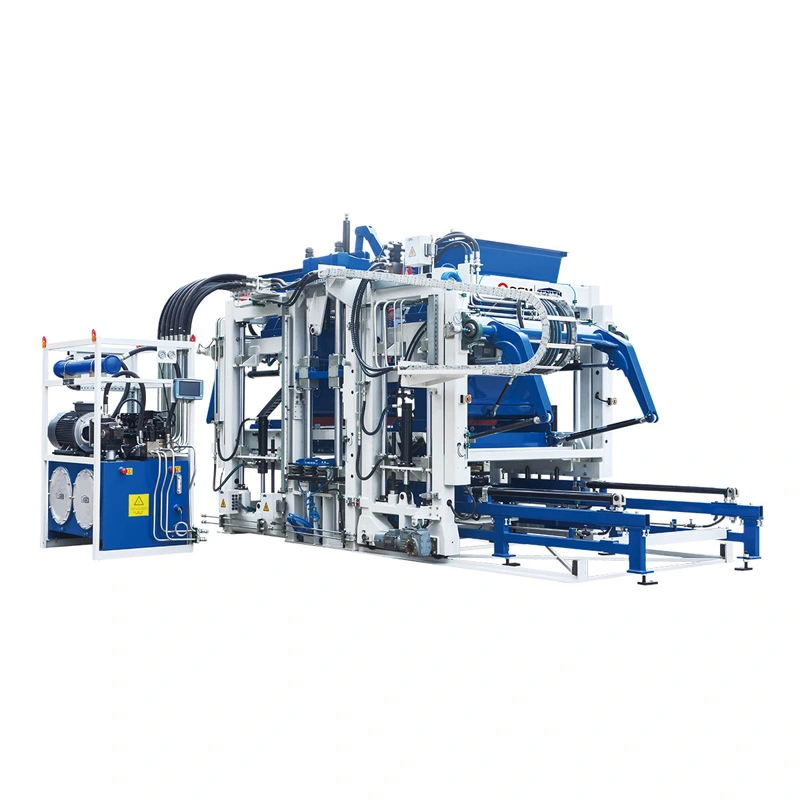

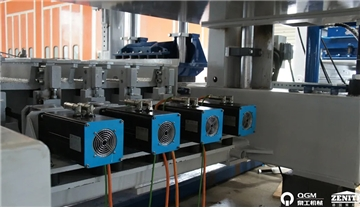

The concrete block machine is an automatic block making machine developed in Germany and manufactured in China. SIEMENS vibration motors with a frequency or servo drive are installed in the lower part, and 2 vibrators with a power of 0.55 kW are installed in the upper part, which provides a vibration force of 100 kN. The height of the product can vary from 40 to 300 mm.

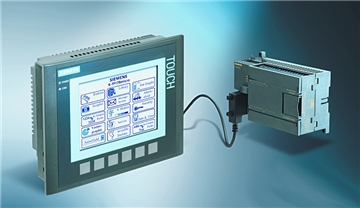

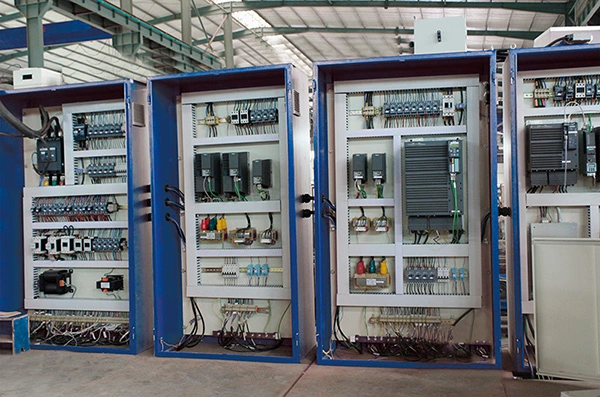

With SIEMENS PLC control system, touch screen, contactors, etc., Italian hydraulic system, automatic mold clamping system, it is the most efficient and stable machine in China. In terms of productivity, efficiency, energy saving, environmental protection, etc., it is far ahead of other block making machines on the market.
Technical Parameters
| Maximum molding area | 1300×650 mm |
| Block height | 40-300 mm |
| Cycle time | 14~24 s (depending on block type) |
| Servo vibration strength | 100 kN |
| Pallet size | 1350×700×(14-35) mm |
| Bottom vibration | 2x7.5 kW (frequency) /4x12 kW (servo drive) |
| Upper vibration | 2×0.55 kW |
| Control system | SIEMENS |
| Total power | 52.6 kW |
| Total weight | 17 t (including mixing device and mold) |
| Machine dimensions | 6300×2800×3500 mm |
Address
City version Zhang, Tia, Qu Press Week, F U key, China
Tel
By submitting the contact form, you agree that your data may be used to process your request (further information and revocation notices can be found in the data protection declaration).

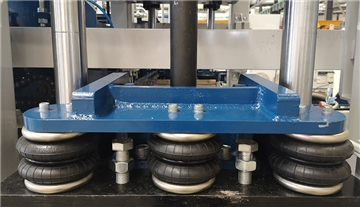

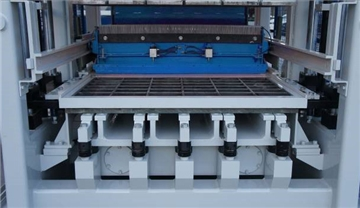

There are air bags on the head of the compactor and on the sides of the machine. Once the mold is in place, the rammer head air cushion automatically inflates and tightens. Finally, the air cushion of the mold frame is inflated to automatically clamp the mold frame. Thus, it helps to save a lot of time when changing different molds, reduce vibration noise, and also improve production efficiency.

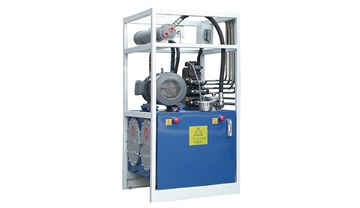

Highly efficient hydraulic system
