Features of Block Making Machine
The automatic stone imitation PC brick making machine and its production line adopt high pressure hydraulic molding and carry out filter press molding of cement-containing aggregates under pressure. The advanced PLC control circuit controls the entire operation process of the machine, which improves production efficiency, improves product quality and mechanical performance at low production costs. Therefore, it is an advanced PC brick production equipment.
The production line carries out formulation selection by dosing and mixing system, and the lifting bucket sends the mixture to the mixing mixer by conveyor belt, then the mixed material is transported to the facet mixing mixer and then to the main machine by sliding table. The next material is fed into the sliding table molding frame through the metering hopper to complete demolding when the face mix has been metered. In addition, pallets and stacks (with wet bricks) are formed during pressing.
Technical Parameters
| Type | HP-600T | HP-800T |
| Number of workstations | 1 | 1 |
| Block characteristics | 1200×600 (1 pc./form) | 1600×800 (1 pc./form) |
| Block height | 20-50 mm | 20-50 mm |
| Maximum main pressure | 600 t | 800 t |
| Main pressure cylinder diameter | 650 mm | 420 mm × 2 |
| Stroke of main pressure cylinder | 200 mm | 200 mm |
| Weight | about 15000 kg | about 22000 kg |
| Power | 28 kW | 30 kW |
| Cycle time | 40 p | 45 p |
| Length x width x height | 2800×2100×2300 mm | 4000×3000×2300 mm |

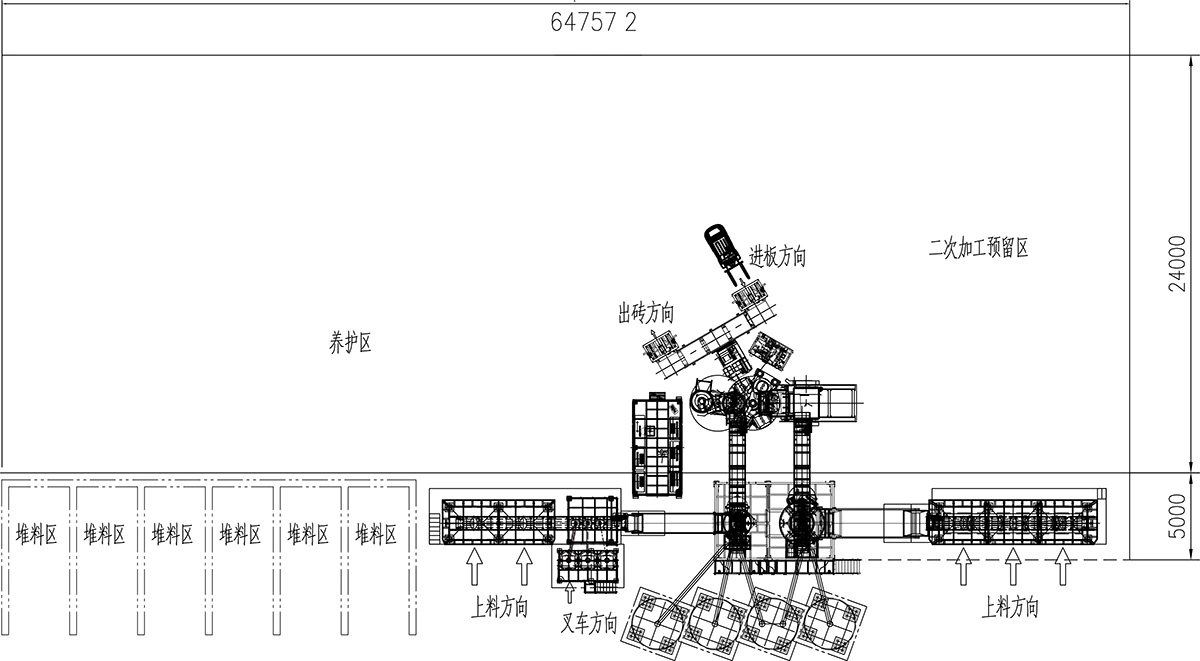

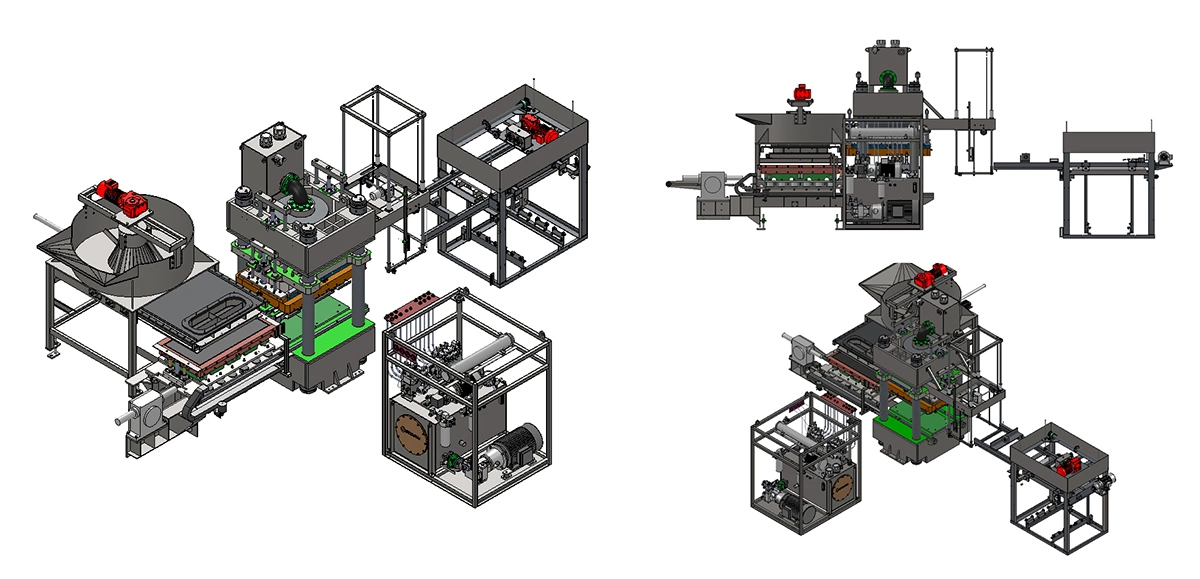

3D layout production line

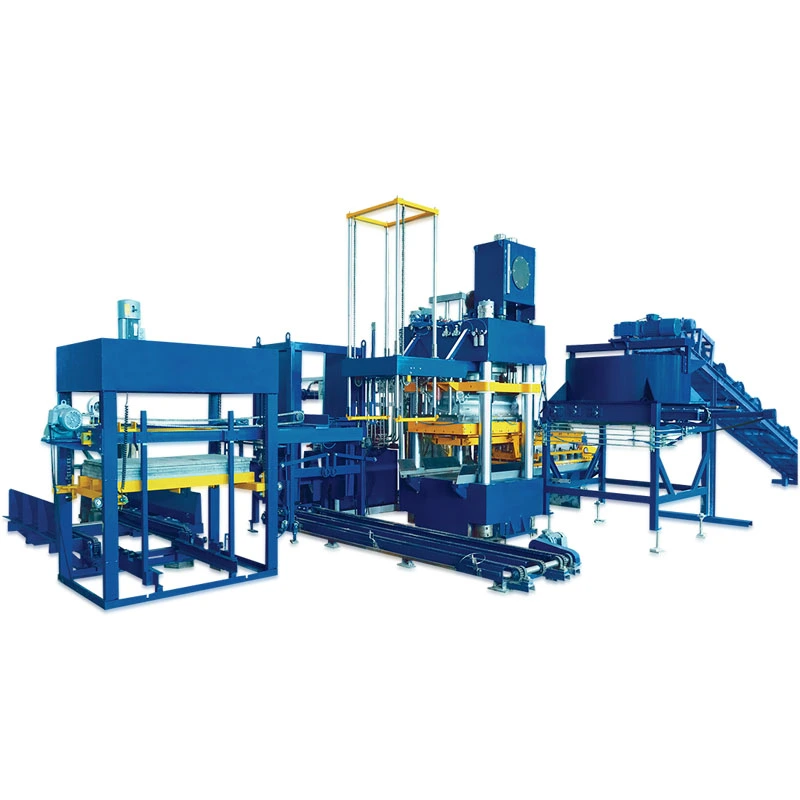

Fully automatic sealed press production line
