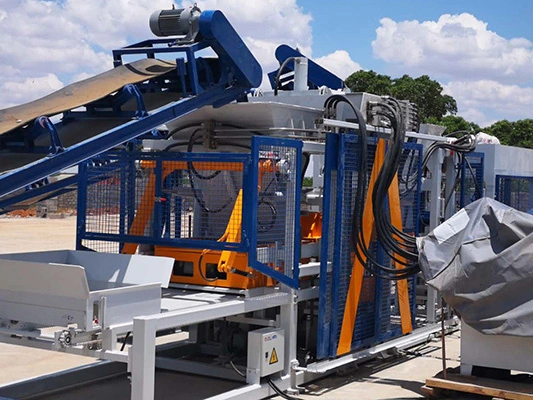

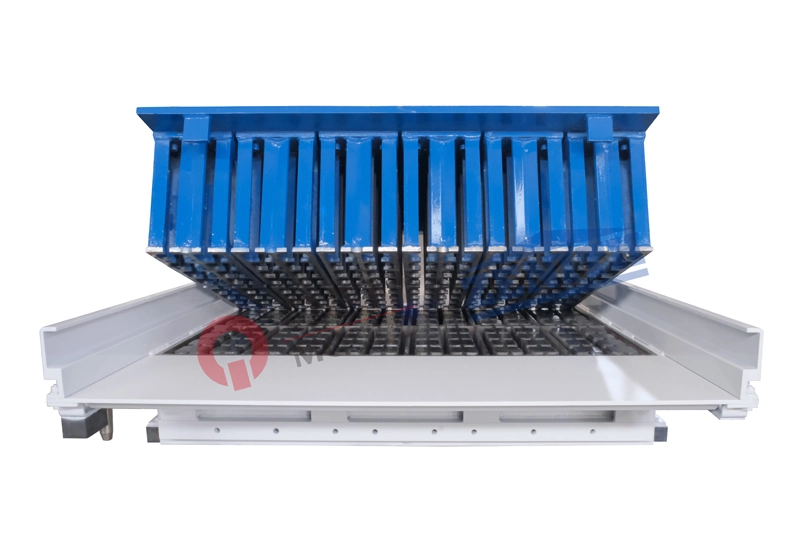

The cement block making machine is a cost-effective and compact cement block making machine independently developed and produced by QGM for over 20 years. It is a mature and economical block making machine, widely accepted by customers around the world and suitable for starting a concrete block making business. The cement block making machine is easy to operate and reliable in operation, and various types of molds can be customized as needed to produce bricks and blocks of various specifications and sizes. The cement block making machine can operate automatically, which reduces labor costs. The productivity of the cement block making machine is very high. The cement block making machine has high production precision and ensures stable brick performance.
Product Features

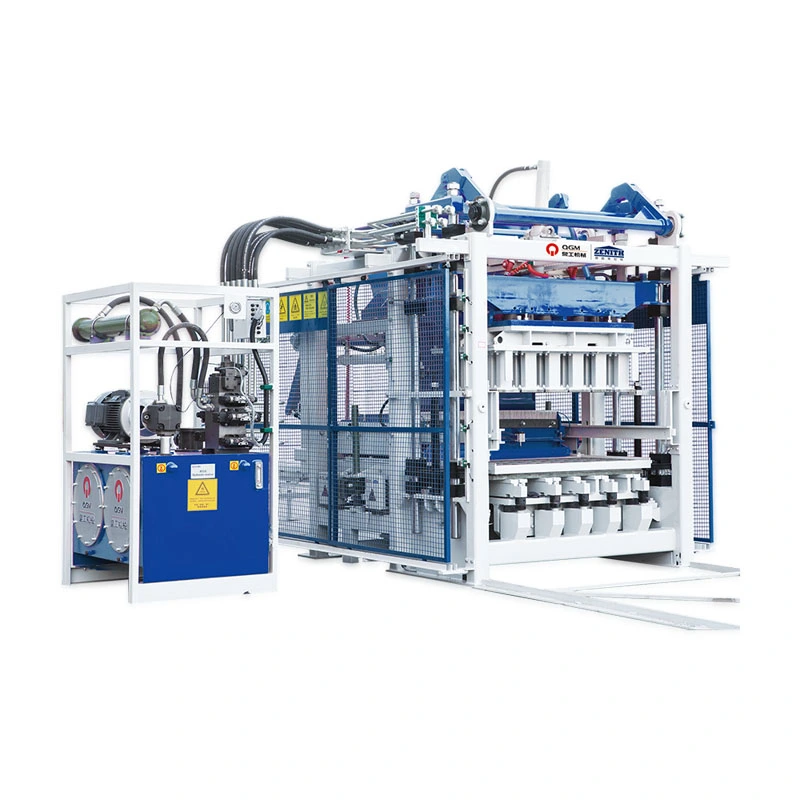

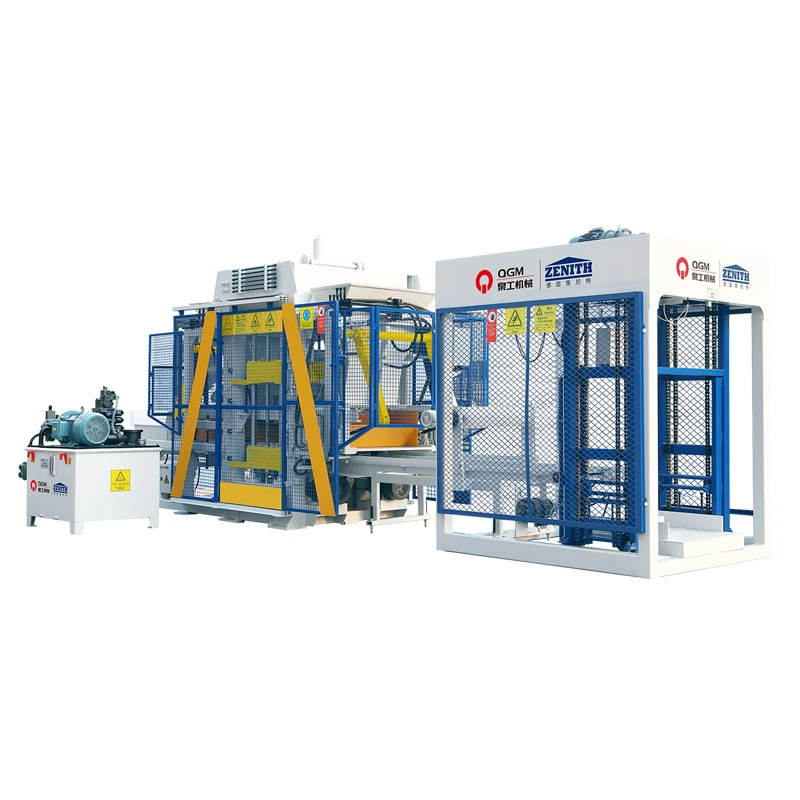

QT6 is an economical & small concrete block making machine that can meet the varied production needs of small businesses while being cost-effective. It can produce various concrete blocks, such as exterior wall building blocks, interior wall blocks, flower wall bricks, floor slabs, river protection blocks, paving blocks and curbs. The secondary coating system can also produce colored pavers.

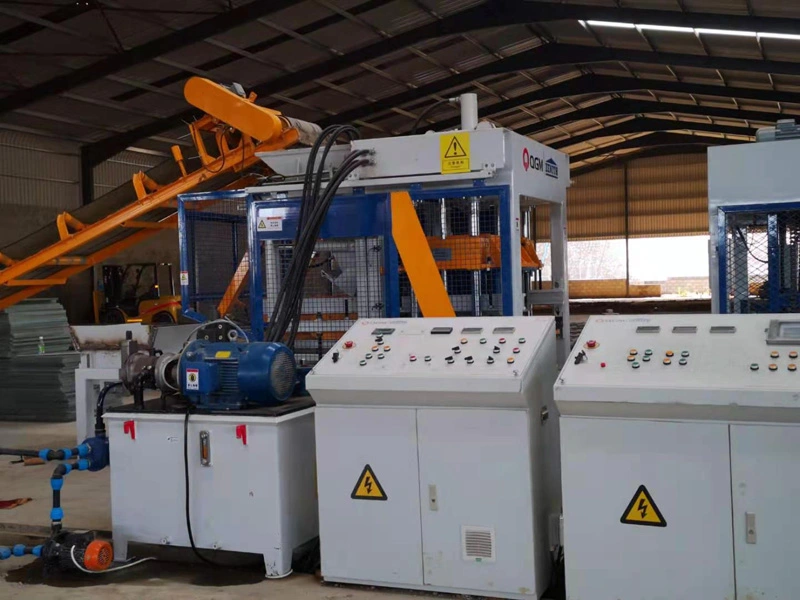

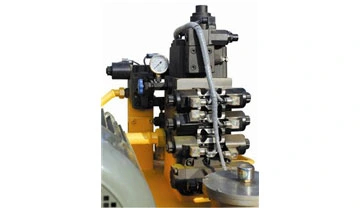

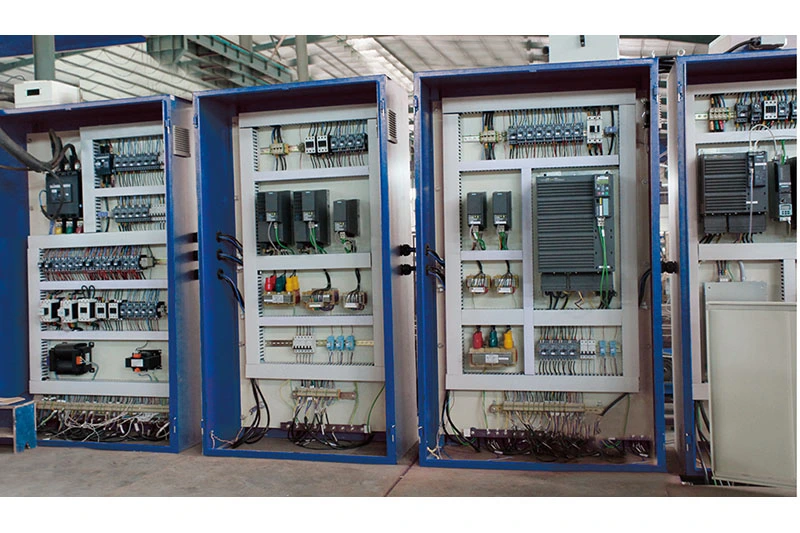

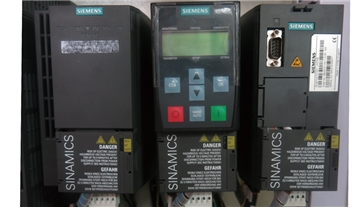

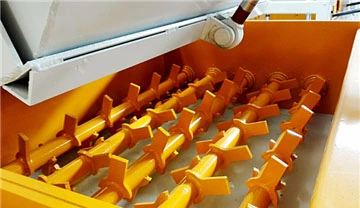

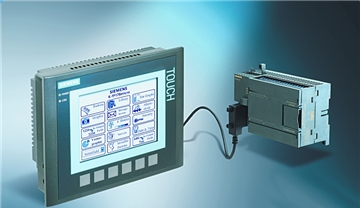

The QT6 machine body is made of high-strength castings and welded structures of special materials, with good rigidity, vibration resistance and long service life. The electrical system uses a touch screen from the German company SIEMENS and a programmable logic controller (PLC), including a safety logic control and fault diagnosis system. The hydraulic components use highly dynamic proportional valves, which can adjust oil volume and pressure to suit various production requirements. The four-lever direction mode ensures precise action of the tamping head and mold. A vibration compaction on the table is used. 360° forced feeding, short molding cycle and high production efficiency.
Technical Parameters
| Cycle time | 15-25S |
| Total engine power | 33 kW |
| Motor frequency | 50 Hz |
| Vibration strength | 60 kN |
| Total weight | 7.5T |
| Machine size | 5210 × 3530 × 2780 mm |
| Production per mold | (390x190x190 mm) 6 pcs/mold |
| (240x115x53mm) 30 pcs/mould | |
| (200x100x60 mm) 21 pcs./form | |
| Pallet size | 850x680mm |
| Production per shift | (390*190*190 mm) 8640–11 520 pcs. |
| (200*100*60/80 mm) 30 240–40 320 pcs. |
