We can provide you with professional service and best price. If you are interested in Hermetic Press Machine products, please contact us. We monitor quality so you can be assured of conscious price and dedicated service.
Features of Hermetic Pressing Machine
The automatic stone imitation PC brick making machine and its production line adopt high pressure hydraulic molding and filter press molding of cement-containing aggregates under pressure. The advanced PLC program control circuit controls the entire operation process of the machine, which improves production efficiency, improves product quality and mechanical performance at low production costs. Therefore, it is an advanced PC brick production equipment.
The production line completes the formulation selection through the dosing and mixing system, and the lifting bucket is sent to the mixing mixer through the conveyor belt, and the mixed material is transported to the mixing mixer and then to the main machine using the sliding table. The next material is fed into the sliding table molding frame through the metering hopper to complete demolding when the face mix has been metered. In addition, pallets and stacks (with wet bricks) are formed during pressing.
Technical Parameters
| Type | HP-600T | HP-800T |
| Number of jobs | 1 | 1 |
| Block Specification | 1200×600 (1 pc./form) | 1600×800 (1 pc./form) |
| Block height | 20-50mm | 20-50mm |
| Max. main pressure | 600t | 800t |
| Main pressure cylinder diameter | 650mm | 420mm×2 |
| Stroke of main pressure cylinder | 200mm | 200mm |
| Weight | about 15000 kg | about 22000 kg |
| Power | 28 kW | 30 kW |
| Cycle time | 40s | 45s |
| Length x width x height | 2800×2100×2300mm | 4000×3000×2300mm |

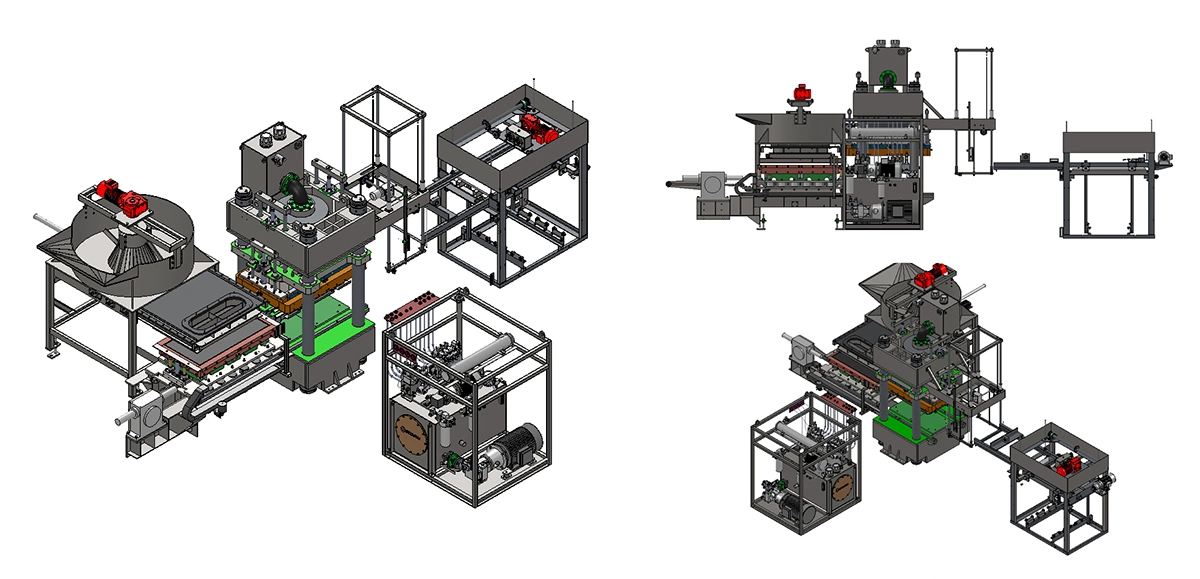

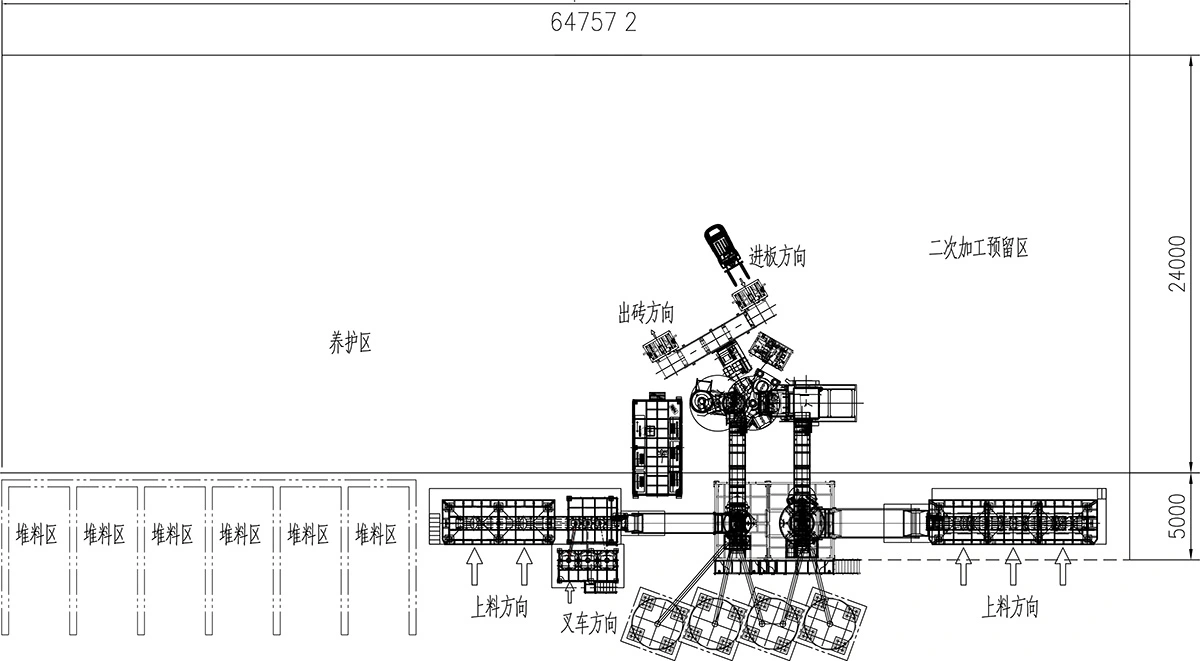

3D layout production line

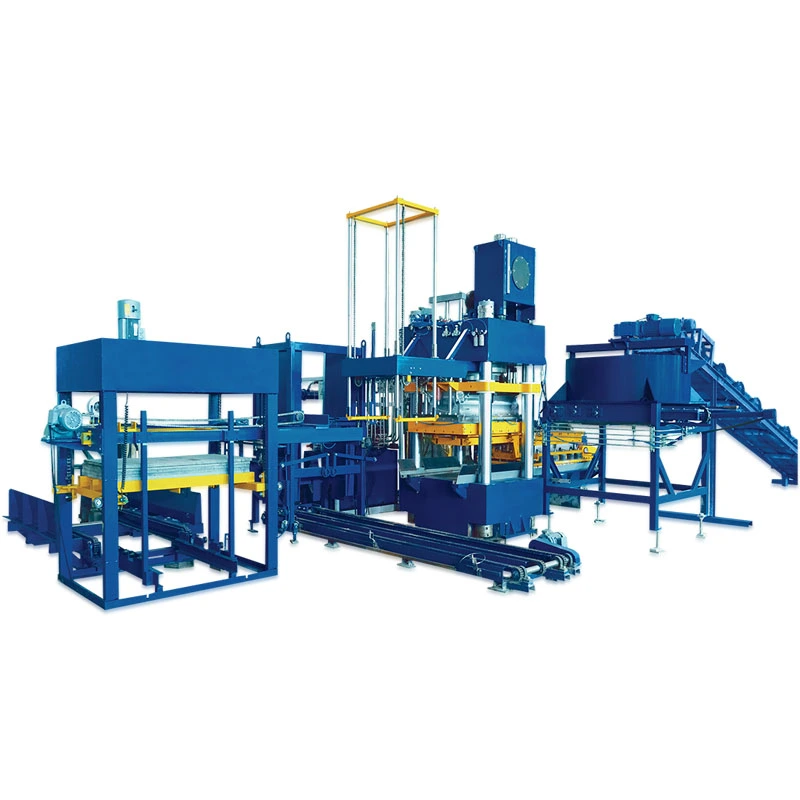

Fully automatic sealed press production line
