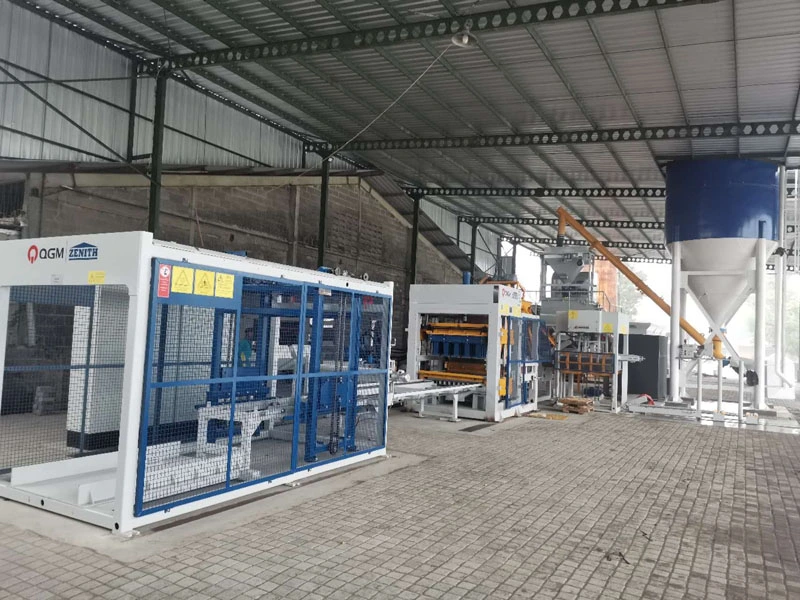

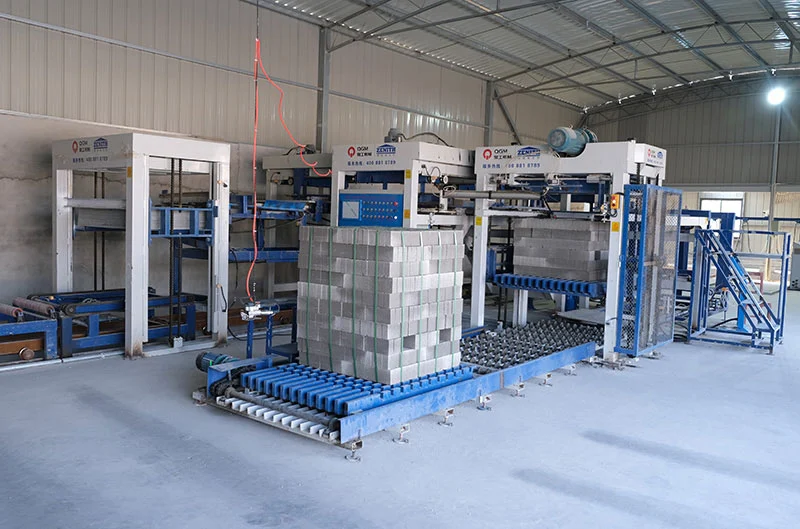

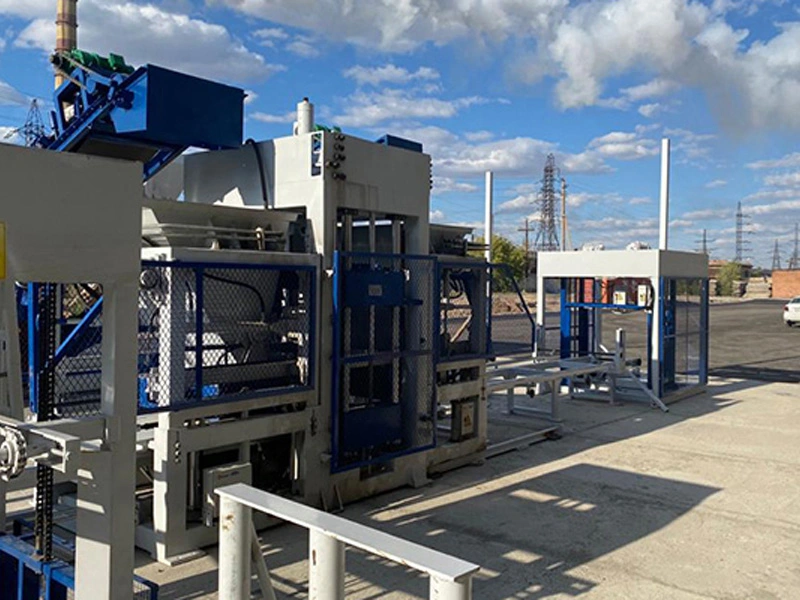

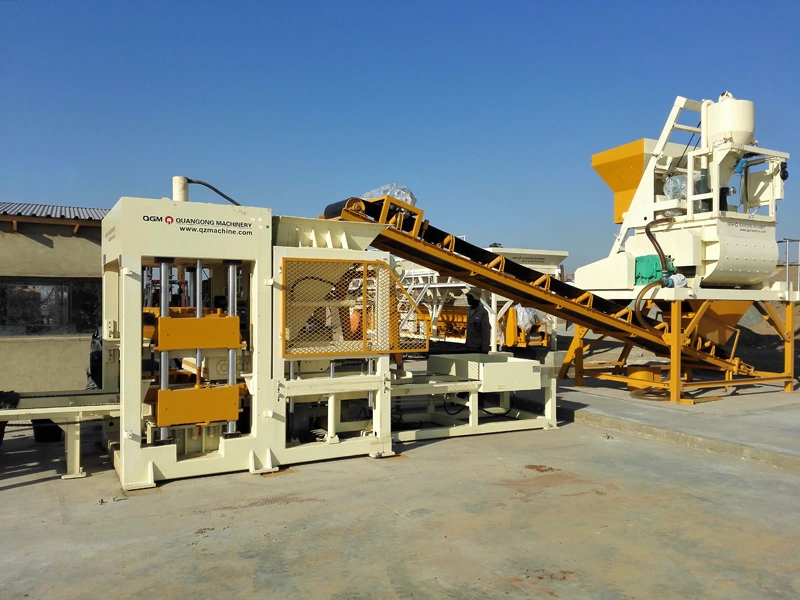

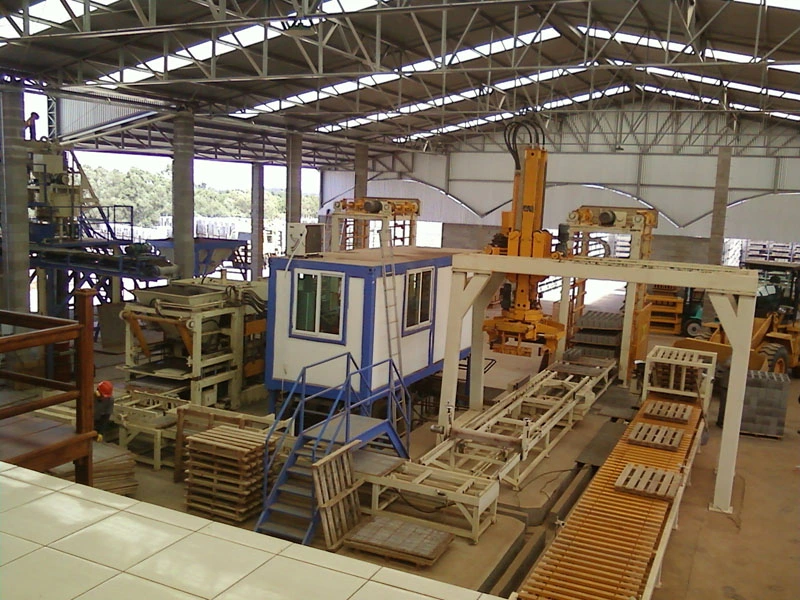

Block molding machine, everyone has their own special requests, and we strive to best meet each customer's product requirements, so the quality of our block molding machine has been highly praised by many customers and enjoys a good reputation in many countries. A block forming machine is a machine that uses fly ash, river sand, gravel, stone flour, fly ash, waste ceramic slag, smelter slag and other materials with the addition of a small amount of cement to produce new blocks for wall construction. Most of them use hydraulic forming mode and some also use vibration forming. The products produced by the block forming machine can be processed into a variety of new wall materials from industrial waste such as sand, stone, fly ash, slag, waste rock, tailings, expanded clay and perlite. Shape them into bricks of various shapes and sizes. Some brick machines can also operate in automatic mode, and the production process can be automated using electrical systems and computer controls. Brick machines have a wide range of applications and can produce various types of bricks, including concrete bricks, cement bricks, red bricks, etc.
Product Features
QT10 (10 means 10 pieces of "400x200x200mm" hollow blocks per mold) has a production capacity of 11,000-14,000 pieces of 400x200x200mm concrete blocks or 800-900 sq. m of cement paving stones per day (8 working hours). Different types of hollow concrete blocks, solid bricks, pavers, paving blocks and curb stones can be produced using different molds.

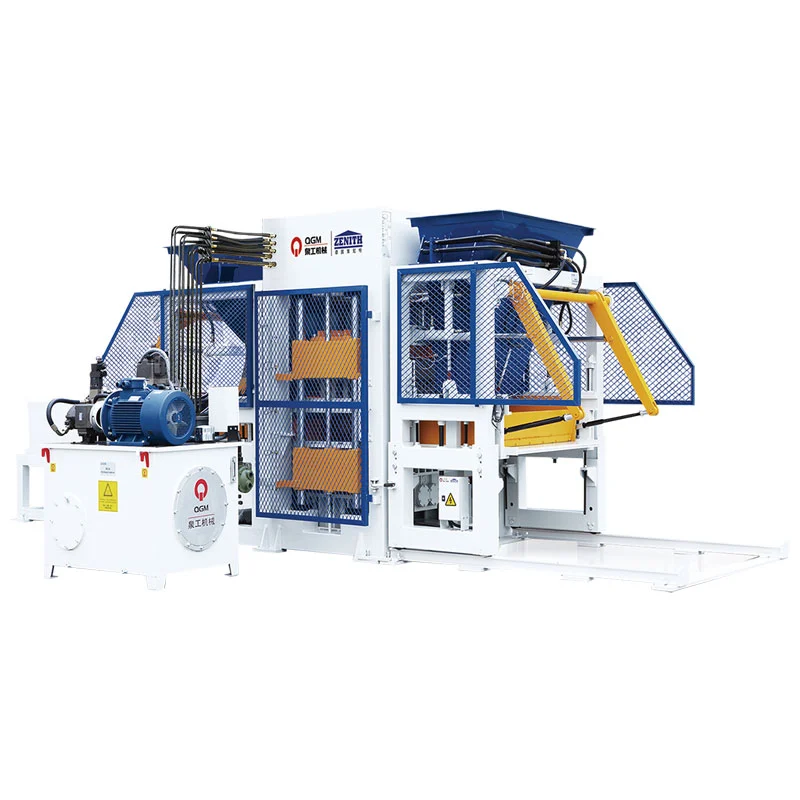

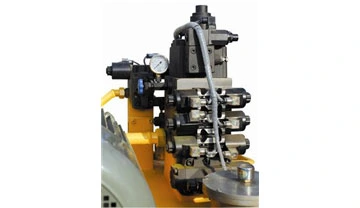

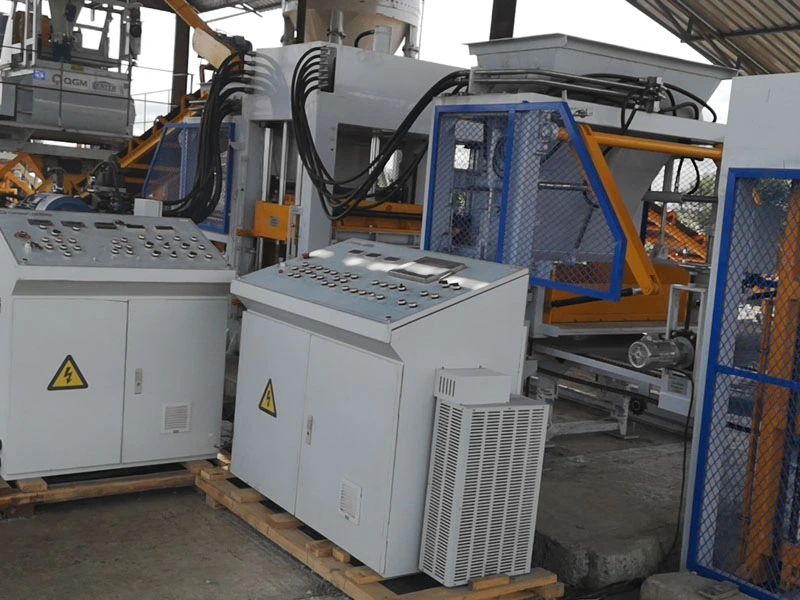

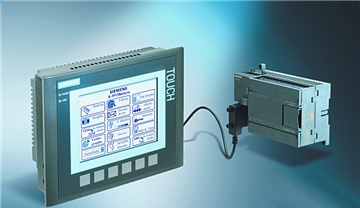

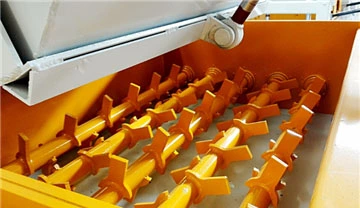

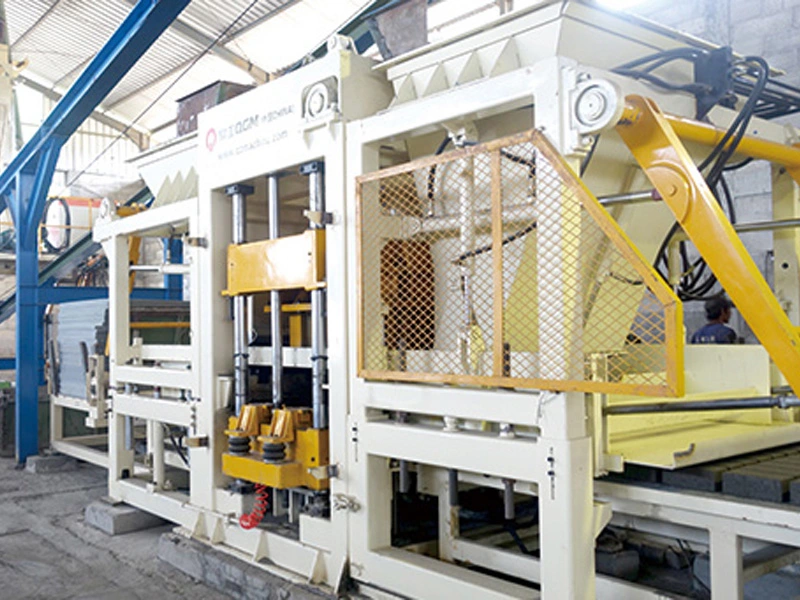

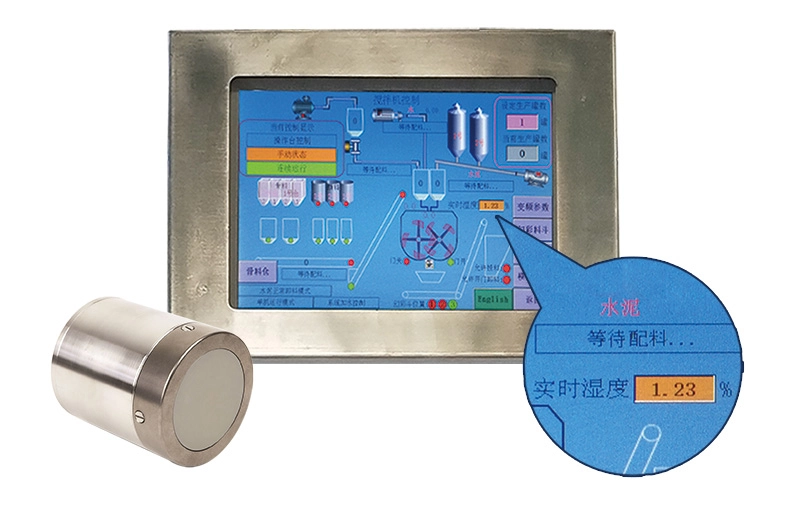

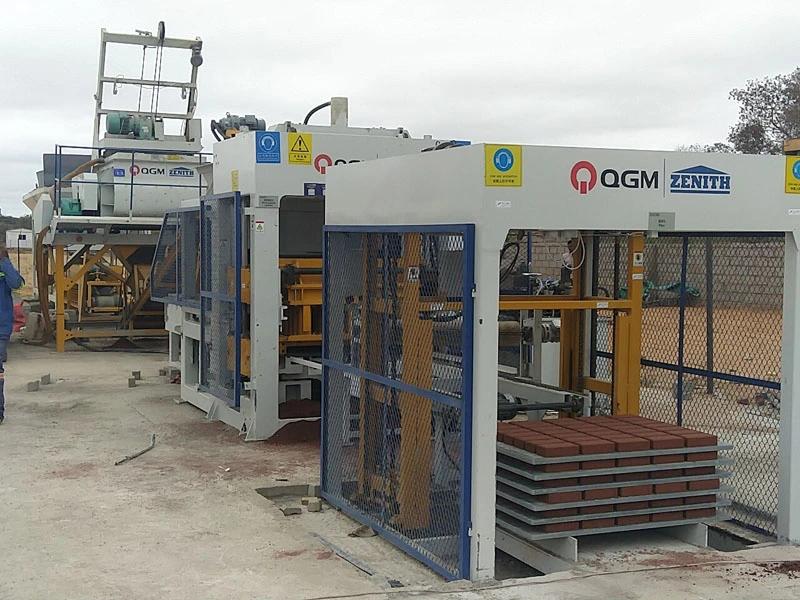

The QT10 machine body is made of high-strength castings and welded structures of special materials, with good rigidity, vibration resistance and long service life. The electrical system uses a touch screen from the German company SIEMENS and a programmable logic controller (PLC), including a safety logic control and fault diagnosis system. The hydraulic components use highly dynamic proportional valves, which can adjust oil volume and pressure to suit various production requirements. The four-link synchronized transmission ensures precise operation of the tamping head and mold. Using table vibration and 360° forced feed allows you to shorten the molding cycle and achieve efficient production.
Technical Parameters
| Cycle time | 15-25 s |
| Total power | 52 kW |
| Motor frequency | 50-60 Hz |
| Vibration strength | 100 kN |
| Total weight | 15T |
| Brick machine size | 8100x4450x3000 mm |
| 9600x4450x3000 mm | |
| Performance per form | (390x190x190 mm) 10 pcs/mold |
| (240x115x53 mm) 54 pcs/form | |
| (200x100x60 mm) 35 pcs./form | |
| Pallet size | 1250×850 mm |
| Production capacity | (390x190x190 mm) 14 000–19 920 pcs. |
| (200x100x60/80 mm) 40,320–50,000 pcs. |
