A block and brick making machine is a mechanical device used to produce high quality bricks or blocks from raw materials such as cement, sand, gravel and water. The machine works by pressing a mixture of these materials to create a dense, hard block or brick that can be used for construction purposes. The block and brick making machine is available in various types including manual, semi-automatic and fully automatic models. The manual model requires more labor-intensive work, while the semi-automatic and fully automatic models require less labor. Block and brick making machine plays an important role in the construction industry by creating strong and durable building materials. They are widely used in the construction of buildings, walls, bridges and other infrastructure projects, making them an integral part of modern construction. Block making machines are available in various sizes and models and are capable of producing bricks of various shapes and sizes as per their specifications. The main components of a block making machine include a hopper, a mixing drum or tray, a mold, and a conveyor belt or palletizing system. Raw materials such as cement, sand and water are mixed in a hopper and then poured into the mixing drum. The mixed material is then fed into a mold and pressed under high pressure and vibration to form the shape.
Product Features
1.High flow pre-fill valve guarantees super high pressure output and fast movements and reactions.
2.The hydraulic station is equipped with a variable pump, which adjusts the speed and pressure through a proportional valve, which saves energy and simplifies operation.
3. The turntable uses large slewing bearing, which is driven by servo motor with encoder, which ensures stable operation and precise control.
4. Adopts advanced visual inspection system, PLC adopts SIEMENS S7-1500 series.
5. The mixture filling device has a built-in planetary mixer, which uses a quantitative rotary table, and the filling quantity is accurate and stable every time.
6. The base material filling device can quantitatively control the amount of base material through various transition devices, and then control the height of the finished brick, which greatly saves the number of molds.
Technical Parameters
| Type | HP-1200T |

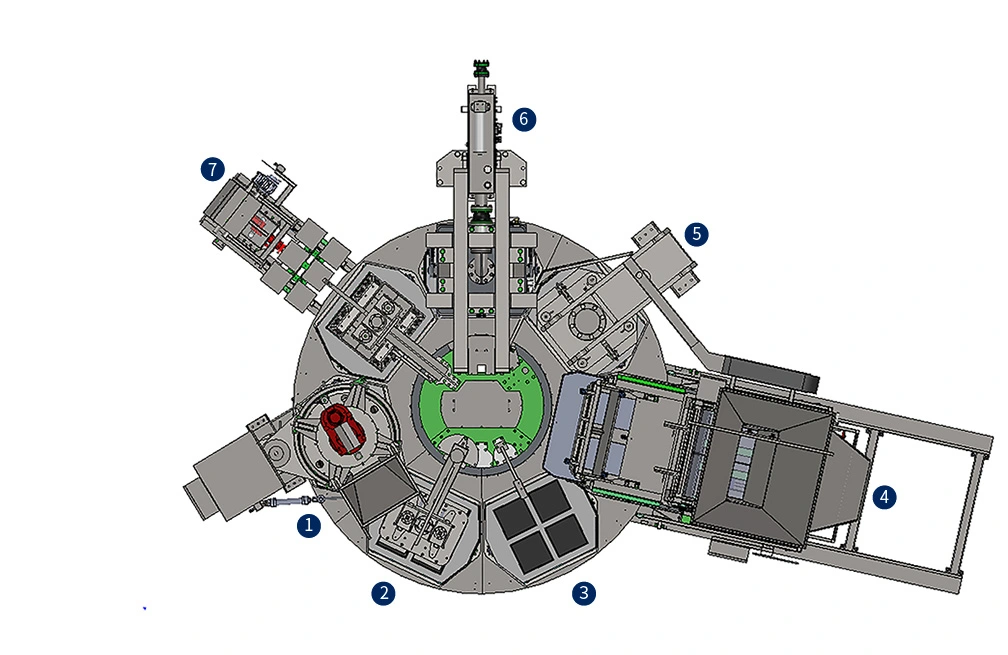

| Number of workstations | 7 |
| Weight (including set of molds) | 900×900 (1 pc./form) |
| 500×500 (2 pcs./form) | |
| 400×400 (4 pcs./form) | |
| Max. block height | 80 mm |
| Max. main pressure | 1200 t |
| Main pressure cylinder diameter | 740 mm |
| Weight (including set of molds) | about 90000 kg |
| Power | 132.08 kW |
| Cycle time | 12-18 p |
| Length x Width x Height | 9000×7500×4000 mm |

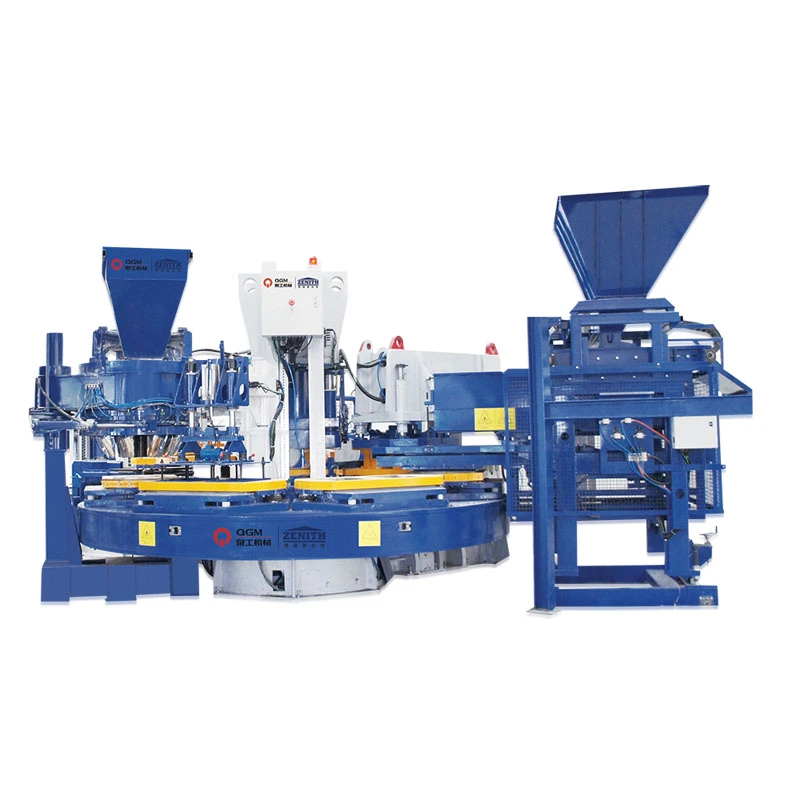

HP-1200T Fully automatic sealedpress production line
