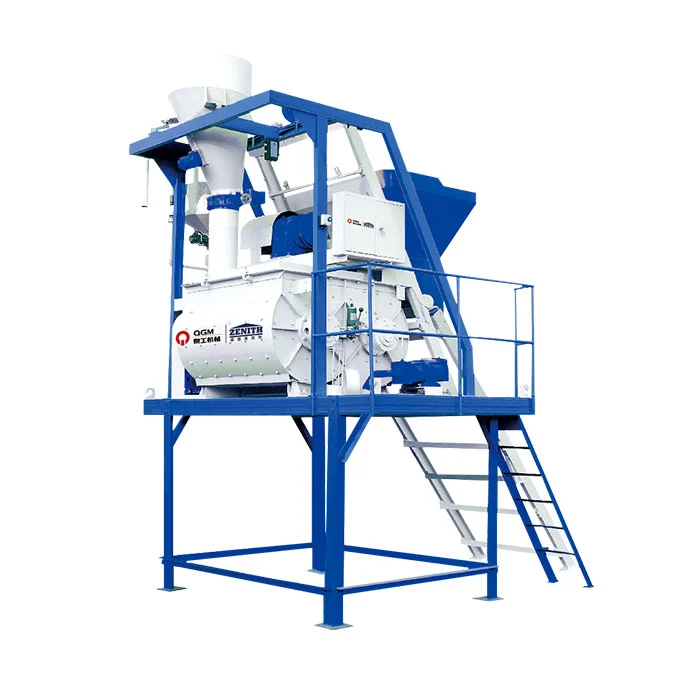

Vertical brick mixer

Model:JS750
As a professional manufacturer, QGM Block Machine is ready to offer you vertical brick mixer. QGM Block Machine will provide you with the best after-sales service and timely delivery. A vertical brick mixer, also known as a mixing machine, is a device used in the brick making process.
Vertical brick mixer is mainly used for mixing raw materials such as sand, cement, water and various additives such as fly ash, lime and gypsum to obtain a homogeneous mixture, which is then fed into the brick molding machine. A mixer typically consists of a large drum or container with several blades or paddles that rotate to thoroughly mix the materials. Some vertical brick machine mixers also include a control system that allows the operator to adjust mixing time, speed and other parameters to ensure optimal mixing quality. Vertical brick machine mixers are widely used in the brick industry, especially for the production of concrete, clay or cement bricks. They can also be used to mix other materials for construction purposes or in other industries where a homogeneous mixture of different materials is required.
Technical Parameters
Paragraph JN350 JS500 JS750 JS1000
Capacity (l) 350 500 750 1000
Loading compartment capacity (l) 550 750 1150 1500
Theoretical capacity (m³/h) 12.6 25 35 50
Maximum aggregate diameter (pebbles/crushed stone) (mm) ≤30 ≤50 ≤60 ≤60
Cycle time (s) 100 72 72 60
Total weight (kg) 3500 4000 5500 8700
Dimensions (mm) Length 3722 4460 5025 10460
Width 1370 3050 3100 3400
Height 3630 2680 5680 9050
Mixing shaft Rotating Speed(r/min) 106 31 31 26.5
Quantity 1×3 2×7 2×7 2×8
Mixer motor power (kW) 7.5 18.5 30 2×18.5
Winding motor power (kW) 4 5.5 7.5 11
Pump motor power (kW) 1.1 2.2 2.2 3
