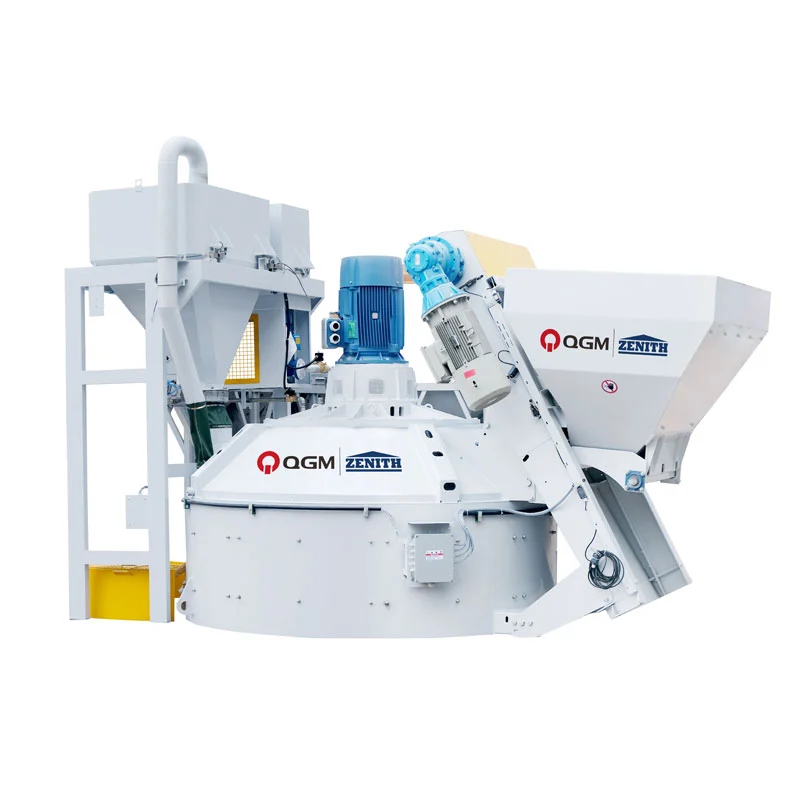

The planetary brick mixer is driven by the mixing motor, which drives the planetary gearbox, which is driven by the internal gear to rotate the gearbox housing. 1-2 sets of planetary arms on the gearbox rotate, allowing the mixer to rotate 360° without dead angles. It can mix materials quickly and efficiently evenly. A variety of clamps and materials can be used to mix a wide range of materials. The vertical planetary mixer has high mixing uniformity, which can reach more than 99%, as well as short mixing cycle, high production efficiency and various performance models. It can be used for laboratory mixing as well as large-scale production lines. Another advantage of vertical mixing equipment is that the discharge occurs cleanly and there is no residual material left at the bottom of the drum.
Brick mixer parameters
| Project Parameter Model | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | |
| Capacity (l) | 330 | 500 | 750 | 1000 | 1500 | 2000 | |
| Feeder capacity (l) | 500 | 750 | 1200 | 1500 | 2250 | 3000 | |
| Theoretical capacity (m³/h) | 10 | 15 | 25 | 45 | 60 | ||
| Maximum total particle size (crushed stone) | <60mm | <60mm | <60mm | <60mm | <60mm | <60mm | |
| Cycle time (s) | 120 | 120 | 120 | 120 | 120 | 120 | |
| Čína výrobcovia hadicových spojok, továreň - XunChi | 3700 | 4500 | 6000 | 9000 | 11500 | 14500 | |
| Dimensions (mm) | Long | 6820 | 6945 | 7330 | 12300 | 12300 | 13500 |
| Width | 3240 | 3240 | 3930 | 4200 | 4200 | 5600 | |
| High | 5200 | 5350 | 5595 | 8580 | 8980 | 9550 | |
| Stirring motor power (kW) | 18.5 | 18.5 | 30 | 37 | 55 | 75 | |
| Winch motor power (kW) | 5.5 | 5.5 | 7.5 | 15 | 18.5 | 22 | |
| Bucket lifting speed (m/s) | 0.45 | 0.45 | 0.45 | 0.39 | 0.39 | 0.27 | |
| Motor power of hydraulic pump station (kW) | 3 | 3 | 3 | 3 | 3 | 3 | |
| Maximum Weighing Value of Powder Scales | 200 | 200 | 350 | 500 | 700 | 800 | |
| Maximum Weighing Value of Water Scale | 90 | 90 | 200 | 200 | 300 | 400 | |
