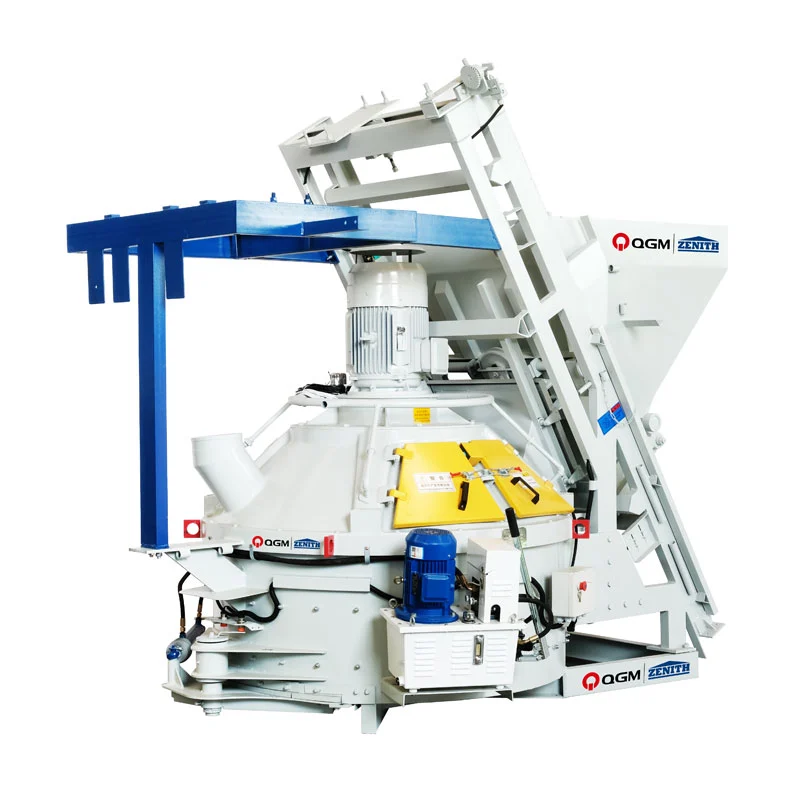

The planetary brick mixer is driven by the mixing motor, which drives the planetary gearbox, which is driven by the internal gear driving the gearbox body, and 1-2 sets of planetary arms on the gearbox, so that the mixer can rotate 360° without dead angles, and can mix materials quickly and efficiently. A variety of fixtures and materials can be used to suit the wide range of materials being mixed. The vertical planetary mixer has high mixing uniformity, which can reach more than 99%, as well as short mixing cycle, high production efficiency and various performance models. It can be used for laboratory mixing as well as large-scale production lines. Another advantage of vertical mixing equipment is that the discharge occurs cleanly and there is no residual material left at the bottom of the drum.
Parameters of planetary brick mixer
| Project Parameter Model | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | |
| Capacity (l) | 330 | 500 | 750 | 1000 | 1500 | 2000 | |
| Feeder capacity (l) | 500 | 750 | 1200 | 1500 | 2250 | 3000 | |
| Theoretical capacity (m³/h) | 10 | 15 | 25 | 45 | 60 | ||
| Maximum total particle size (crushed stone) | <60mm | <60mm | <60mm | <60mm | <60mm | <60mm | |
| Cycle time (s) | 120 | 120 | 120 | 120 | 120 | 120 | |
| Čína výrobcovia hadicových spojok, továreň - XunChi | 3700 | 4500 | 6000 | 9000 | 11500 | 14500 | |
| Dimensions (mm) | Long | 6820 | 6945 | 7330 | 12300 | 12300 | 13500 |
| Width | 3240 | 3240 | 3930 | 4200 | 4200 | 5600 | |
| High | 5200 | 5350 | 5595 | 8580 | 8980 | 9550 | |
| Stirrer motor power (kW) | 18.5 | 18.5 | 30 | 37 | 55 | 75 | |
| Winch motor power (kW) | 5.5 | 5.5 | 7.5 | 15 | 18.5 | 22 | |
| Bucket lifting speed (m/s) | 0.45 | 0.45 | 0.45 | 0.39 | 0.39 | 0.27 | |
| Motor power of hydraulic pump station (kW) | 3 | 3 | 3 | 3 | 3 | 3 | |
| Maximum Weighing Value of Powder Scales | 200 | 200 | 350 | 500 | 700 | 800 | |
| Maximum Weighing Value of Water Scale | 90 | 90 | 200 | 200 | 300 | 400 | |
