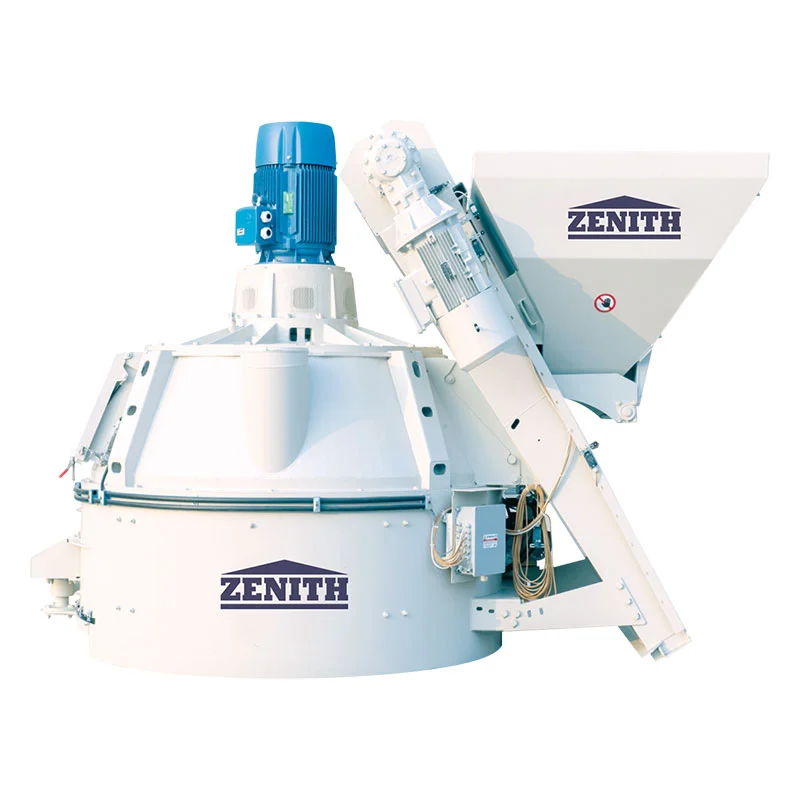

Brick machine mixers come in a variety of sizes and capacities, from small portable mixers for small construction projects to large stationary mixers for large commercial projects. The type and size of the mixer depends on the specific project requirements. This mixture is then used to make bricks or other construction work. The brick machine mixer is mainly composed of mixing drum, mixing shaft, mixing blade, water supply system and control system. The mixing drum is usually made of high quality steel and has good sealing effect. The mixing shaft and paddle are designed to ensure thorough mixing of materials. The water supply system provides a continuous supply of water for the mixing process. The control system allows the operator to set the mixing time and speed.
The brick making mixer plays an important role in the brick making or construction process, ensuring a homogeneous and uniform mixture of building materials for quality and durable construction work.
| Paragraph | MMP375 | MMP500 | MMP750 | MMP1000 | MMP1500 | MMP2000 | |
| Capacity (l) | 375 | 500 | 750 | 1000 | 1500 | 2000 | |
| Feeder capacity (l) | 550 | 750 | 1125 | 1500 | 2250 | 3000 | |
| Tank capacity (l) | 1050 | 1350 | 1900 | 2350 | 4100 | 5400 | |
| Theoretical capacity (m³/h) | 7.5 | 10 | 15 | 20 | 30 | 40 | |
| Maximum aggregate diameter (pebbles/crushed stone) (mm) | ＜40 | ＜40 | ＜40 | ＜40 | ＜40 | ＜40 | |
| Cycle time (s) | 180 | 180 | 180 | 180 | 180 | 180 | |
| Total weight (kg) | 3125 | 3790 | 6003 | 7826 | 9130 | 11200 | |
| Size(mm) | Length | 3419 | 3573 | 3994 | 4367 | 4674 | 5160 |
| Height | 2058 | 2176 | 2343 | 2500 | 2766 | 3480 | |
| Width | 1860 | 2054 | 3141 | 3134 | 3408 | 3270 | |
| Agitating blade | Rotation speed (rpm) | 44+240 (high speed) | 44+240 (high speed) | 31 | 25.7 | 25 | 22 |
| Rotation speed (rpm) | 21 | 21 | 14 | 10.5 | 10.5 | 9.5 | |
| Qty. | 13 | 16 | 4 | 7 | 6 | 6 | |
| Theoretical life cycle | 10,000 cans | 10,000 cans | 10,000 cans | 10,000 cans | 10,000 cans | 10,000 cans | |
| Number of plates. | Side plate | 48 | 70 | 102 | 111 | 126 | 138 |
| Bottom plate | 45 | 62 | 82 | 106 | 112 | 143 | |
| Theoretical life cycle | 20,000 cans | 20,000 cans | 20,000 cans | 20,000 cans | 20,000 cans | 20,000 cans | |
| Mixing power (kW) | 18.5 | 22 | 30 | 45 | 55 | 75 | |
| Lift motor power (kW) | 4 | 5.5 | 7.5 | 11 | 15 | 22 | |
| Bucket lifting speed (m/s) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
| Power of hydraulic pump station (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 3 | |
| Water pump motor (kW) | Pressure pump | 0.75 | 0.75 | 2.2 | 3 | 4 | 6.5 |
| Suction pump | 1.1 | 1.1 | 2.2 | 2.2 | 2.2 | 2.2 | |
| Maximum material weight (l) | 200 | 200 | 400 | 500 | 700 | 800 | |
| Bucket lifting speed (m/s) | 90 | 90 | 140 | 180 | 300 | 400 | |
