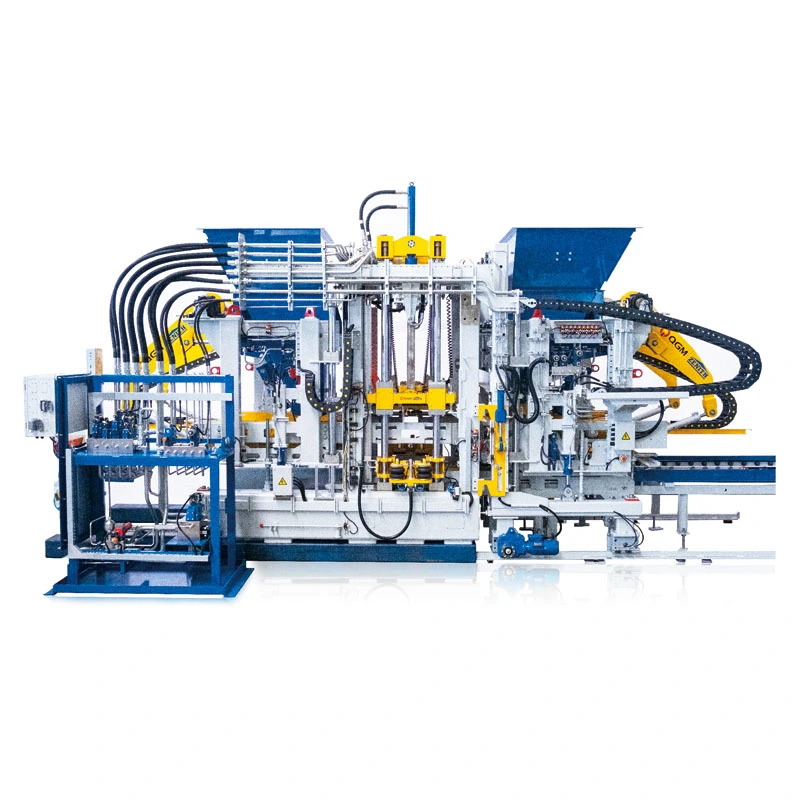

Main machine with hydraulic system
1. Concrete products The brick machine uses a closed conveyor belt and strictly controls the quantity of small materials stored in the warehouse so that they can be delivered and used at any time, preventing the concrete from premature liquefaction due to aftershocks and ensuring the strength of the product.
2. The overall equipment structure of the concrete brick making machine is compact, the equipment is of reasonable design, and the rotating parts are equipped with mechanized devices, which are accurate and reliable. Labor intensity is reduced and production efficiency is increased. Vertical pressure, directional vibration and variable frequency braking ensure high molding density and strength.
3. The concrete concrete machine is multi-purpose and can produce block products of various shapes and specifications using various molds. The mechanical structure of each part is easy to observe, easy to operate and maintain, and not prone to failure, ensuring the normal operation of production.
Concrete Products Concrete Concrete Machine Usage:
Concrete concrete machines can be widely used in the construction industry, road construction, yard landscaping and landscape engineering and other fields. They have proven to be cost-effective and efficient compared to traditional hand-made brick making methods and minimize labor intensity for workers. At the same time, they reduce production time and costs and increase operational efficiency.
The concrete brick making machine can produce standardized bricks, including solid bricks, hollow bricks, coated bricks, paving bricks, cement strips and other shape bricks. The size and shape of the bricks can be adjusted according to customer requirements. Some models can also produce decorative bricks such as stone wall tiles, rock garden tiles, etc. These machines typically use vibration to form solid blocks, and the hydraulic system ensures smooth operation and ensures uniform and accurate blocks. The productivity of the machine is relatively high - from tens to thousands of bricks.
Product parameters
| Product height | |
| Maximum | 300 mm |
| Minimum | 40 mm |
| Pallet size | |
| Maximum production area (on standard size pallets) | 1200x870 |
| Pallet size (standard) | 1120x820 |
| Hopper bottom material | |
| Capacity/l | 1000 |
| Fabric silage | |
| Capacity/l | 750 |
| Machine weight | |
| Main machine with hydraulic system | About 13 tons |
| Fabric machine | About 3 tons |
| Equipment size (main machine and fabric machine) | |
| Maximum overall length/mm | About 5,800 |
| Maximum overall height/mm | About 3200 |
| Maximum overall width/mm | Around 2300 |
| Vibration system | |
| Maximum exciting force of vibrating table/kN | 80 |
| Maximum driving force of the pressure head/kN | 16 |
| Hydraulic system | |
| Total consumption | 210 l/min |
| Working pressure | There are 160 |
| Electrical parameters | |
| Total power (reference)/kW | 61 |
| Control system | TIA Botu platform Siemens S7 series |
| operating system | Siemens touch screen |

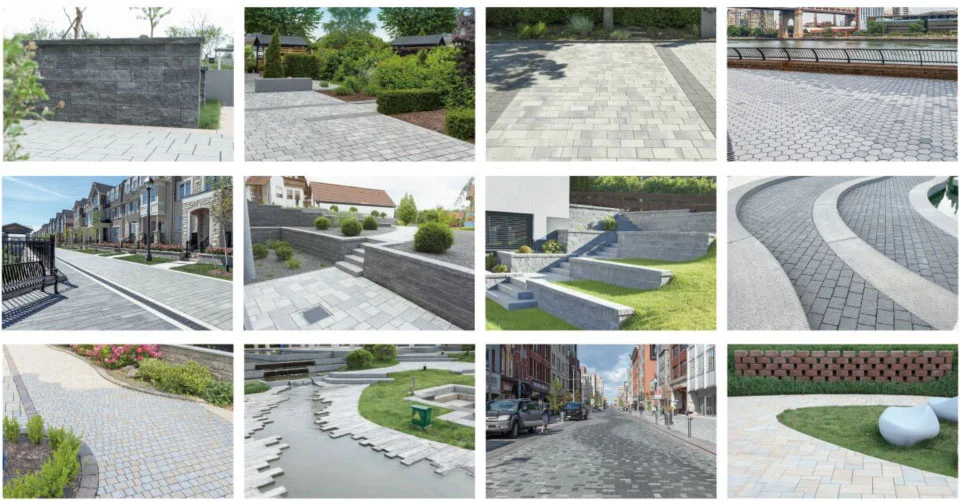

Application case scenario diagram
