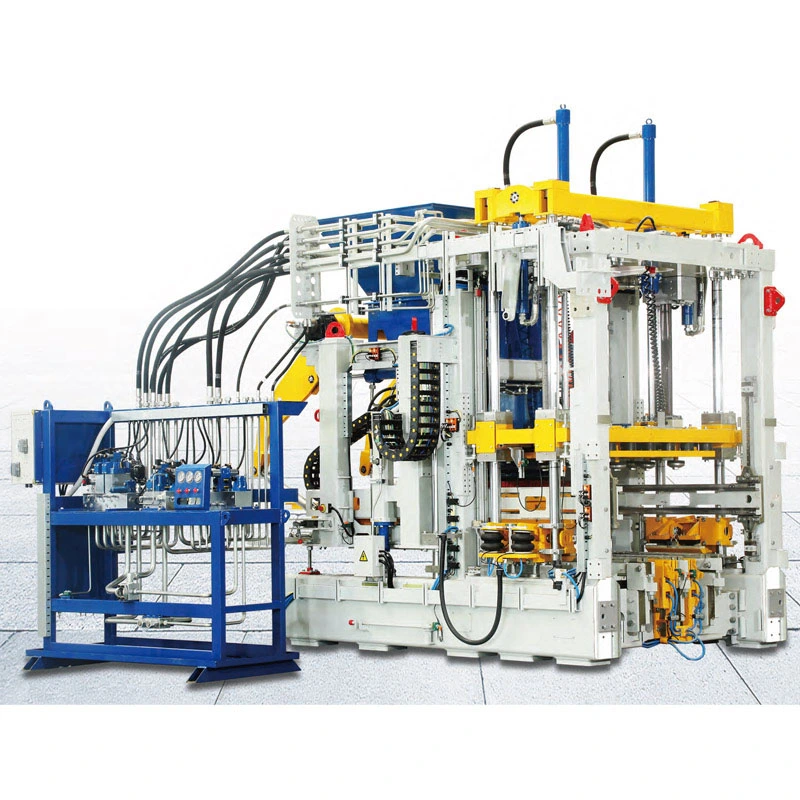

Concrete Product Forming Machine

Concrete molding machines are divided into two categories: concrete pressure molding machines and vibration concrete molding machines. The concrete pressure molding machine mainly uses hydraulic system to shape concrete products using pressure; Vibration concrete forming machine mainly uses a vibration system to shape concrete products through vibration.

Advantages and application scenarios of the concrete molding machine:

1. High molding speed

The concrete product molding machine can effectively carry out the concrete product molding process, and its molding speed is much faster than that of manual production. With the reasonable design of formwork and vibrating table, the equipment can quickly and accurately form concrete products and produce up to several dozen finished components per minute.

2. Stable product quality

The concrete molding machine adopts high-precision mold design and vibration intensity to ensure the same size and quality of each concrete product, which is impossible to achieve with manual production. In addition, due to the efficient production process of the molding machine, the air and moisture content of the product is evenly distributed, which increases its strength and durability.

3. Low production cost

Compared with traditional production methods, the production cost of concrete products using concrete molding machines is much lower. It has high molding efficiency, low energy consumption and requires less labor, which reduces production costs and improves company profitability.

4. High production flexibility

The concrete product molding machine can easily change different shapes as needed to produce precast components of various specifications and shapes. In addition, the molding machine can adjust the formwork and vibration intensity as needed to adapt to the production of different types of concrete products.

5. Small footprint

Concrete molding machines are usually small compact machines with simple structure, small size and light weight, which occupy a small area. In this way, large quantities of concrete products can be produced without taking up too much space.

It can produce prefabricated components of various specifications, such as wall panels, fencing, bricks, etc., and is widely used in industry, civil engineering, agriculture and other fields.

Product parameters

Product height
Maximum	500 mm
Minimum	40 mm
Pallet size
Maximum production area (on standard size pallets)	1320x850x820 mm
Pallet size (standard)	1400x900x870 mm
Hopper bottom material
Capacity/l	2000
Fabric silo
Capacity/l	2000
Machine weight
Main machine with hydraulic system	About 30 tons
Fabric machine	About 8 tons

Equipment size (main machine and fabric machine)
Maximum overall length/mm	About 7,500
Maximum overall height/mm	About 4700
Maximum overall width/mm	About 3300
Vibration system
Maximum exciting force of vibrating table/kN	140
Maximum driving force of the pressure head/kN	30
Hydraulic system
Total consumption	380 l/min
Working pressure	There are 180
Electrical parameters
Total power (reference)/kW	168
Control system	TIA Botu platform Siemens S7 series
operating system	Siemens touch screen

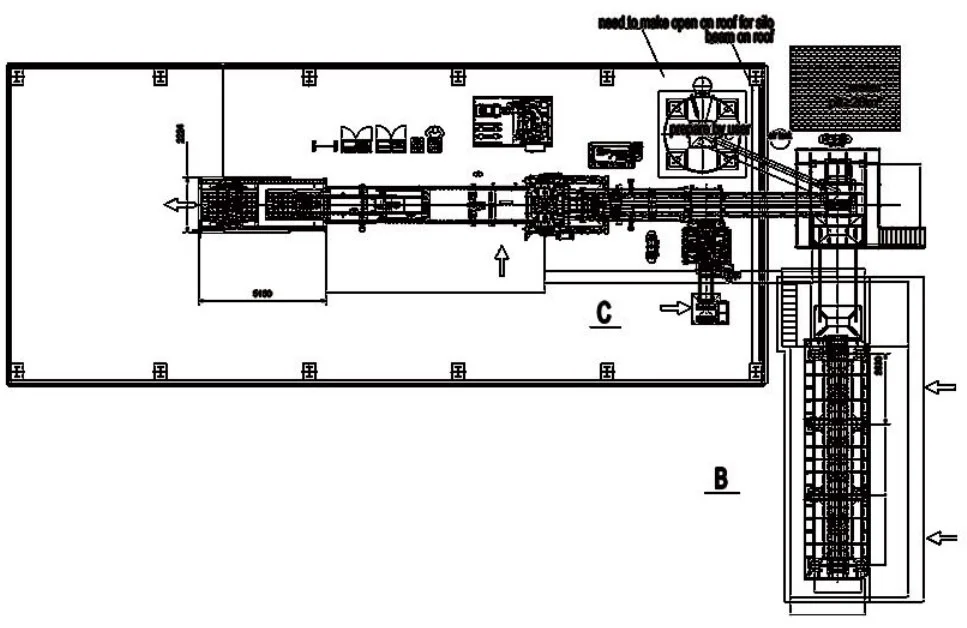

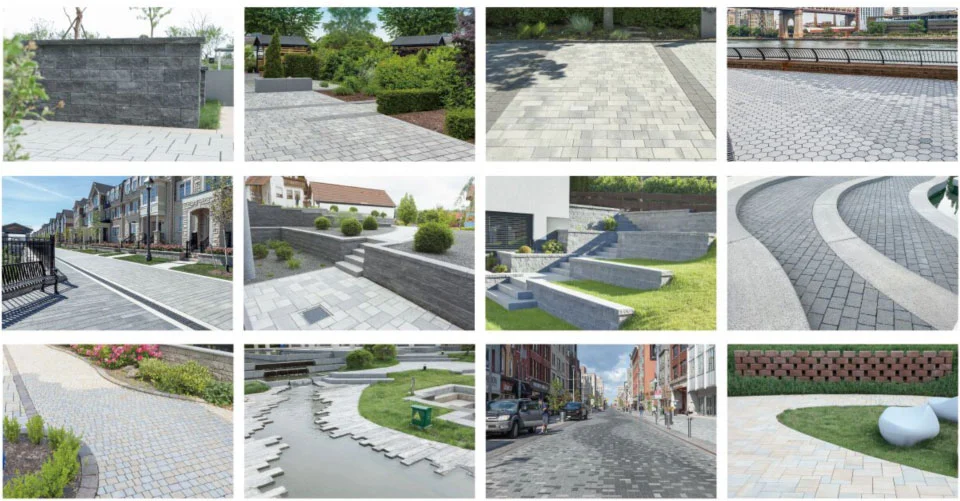

Application case scenario diagram
