QGM Block Machine is a professional Chinese manufacturer and supplier of Brick Machine Ingredients. If you are looking for a block making machine, contact us now!

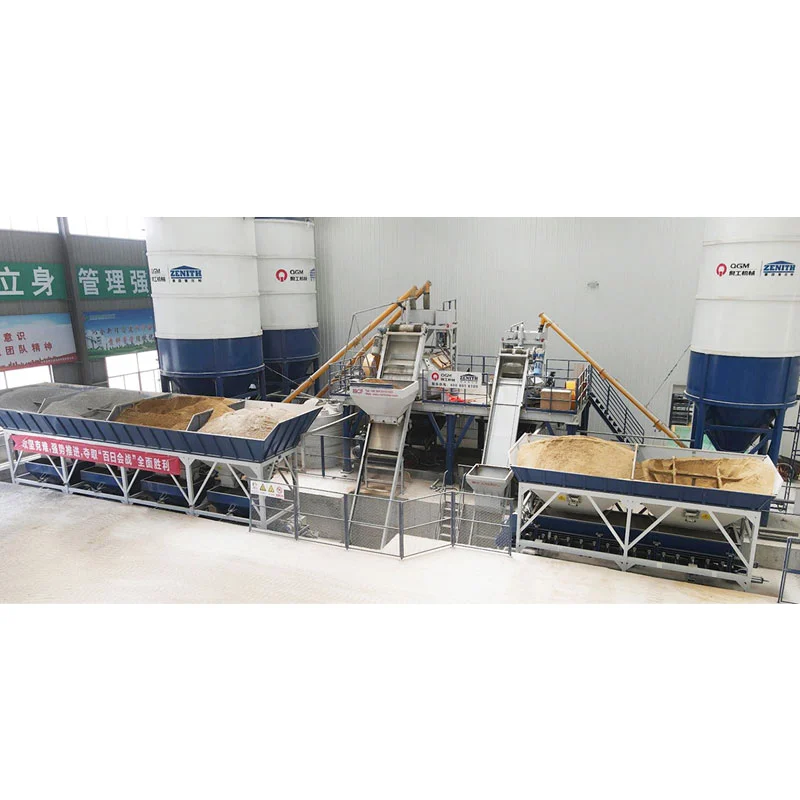

Dispenser
It can be selected according to the type of local raw materials, with 3 to 6 bins to choose from, and the quantity of multiple materials can be set in appropriate proportion. Its function is to ensure product quality and reduce costs. The raw materials are weighed automatically by an automatic dosing system and transported to a lifting hopper, which is lifted into place to empty the raw materials into the mixer for mixing.
Mesh size: 50*50 mm.
Hopper volume: 4*13 m³/hopper (main material) + 2*9 m³/hopper (Facemix).
Accuracy and measuring range:
1) Dispenser for basic aggregates
Measuring range: 4*400-2000kg
Weighing accuracy: ≤ ±2%
2) Dispenser for Facemix
Measuring range: 180-1800 kg
Weighing accuracy: ≤ ±2%
Belt Conveyor:
1) Metering power for main aggregate: 7.5 kW + 2.2 kW, belt width B800
2) Dispenser power for Facemix: 2.2 kW, belt width B500
Dosing cycle time: 40 s
Note: Customized requirements can be met according to the customer's choice of dosing system.
