Brick kiln

Drying chamber

There are two main types of curing chambers: one is a steel structure and the other is a  concrete structure.

Brick kiln is a brick drying kiln, brick drying chamber, etc., where the products are put into the drying kiln in batches, and heating, maintaining constant temperature and cooling are controlled by the amount of steam supplied, which is suitable for the production process of water installation method; Tunnel brick drying kiln, folding line brick drying kiln, vertical brick drying kiln, etc., the products are continuously loaded into the kiln from one end, and after three stages of heating, maintaining constant temperature and cooling, discharged from the other end, which is suitable for the water conveyor belt method production process. The second type intermittent brick drying kiln has a simple structure and is well adapted to various products, but consumes a lot of steam, has poor operating conditions, low utilization rate and occupies a large area. The continuous operation brick drying kiln overcomes the disadvantages of the intermittent operation kiln and easily realizes automation, but requires large investment in infrastructure.

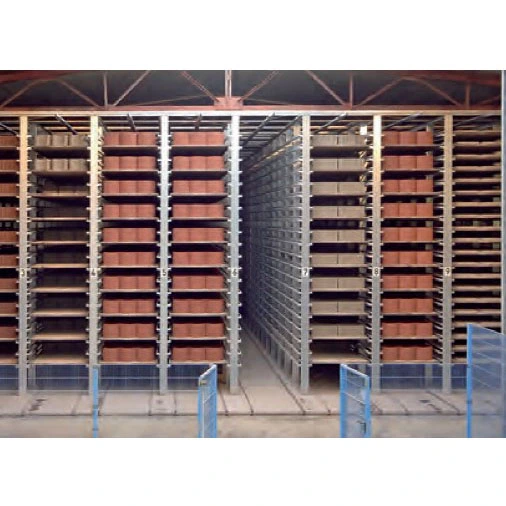

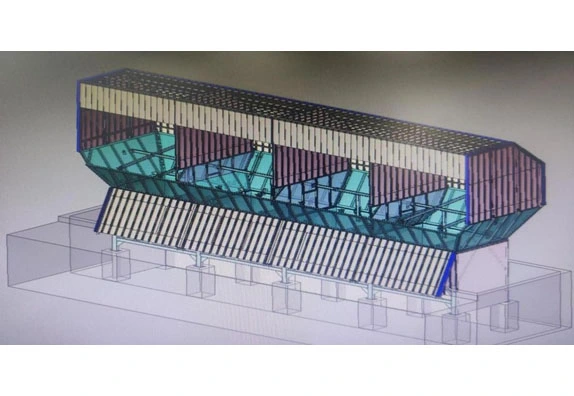

Steel Curing Rack System

Concrete structure

Drying rack system

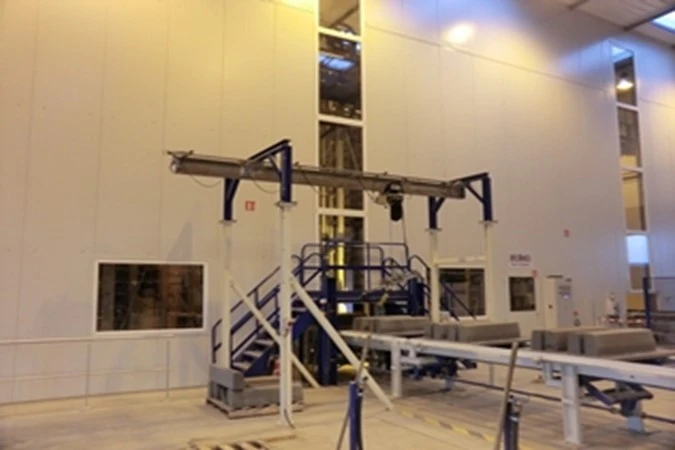

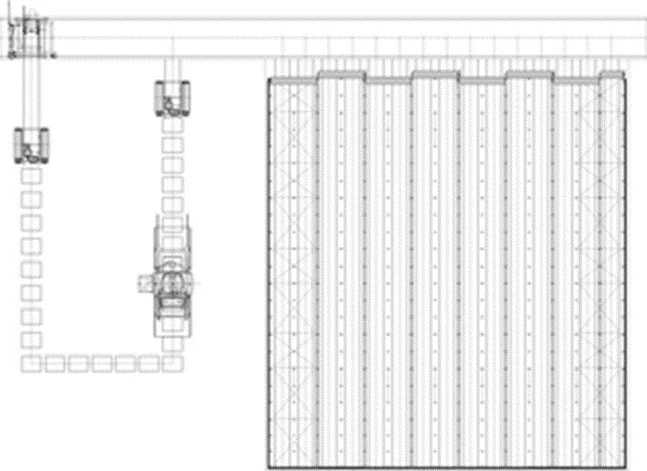

System design Large chamber
Elevators and lowering devices integrated into the chamber environment
Same climate for all types of concrete products
Direct supply in constant climate
Reduced curing time
Suitable for evaporation, heating and air circulation systems
Low investment

All system options can also be installed as free-standing buildings.

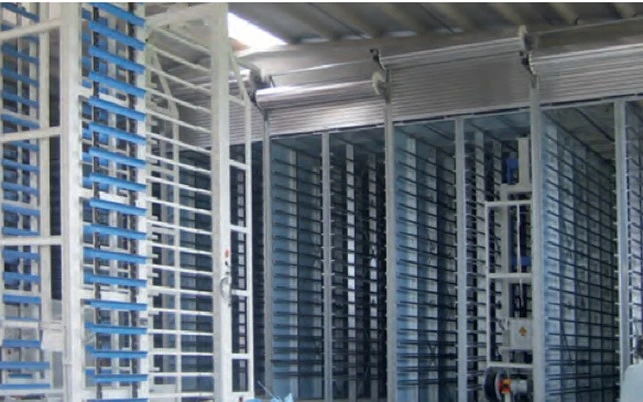

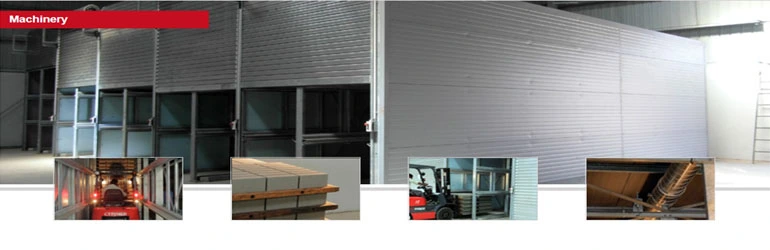

Single-chamber/double-chamber system design
Hot-dip galvanized or stainless steel systems with full coverage of exterior, partition and ceiling surfaces. Front sealing with customized roller shutters.
Flexible product range thanks to chamber system
Particularly high tightness of the chambers to each other
Suitable for evaporation, heating and air circulation systems

All system options can also be installed as free-standing buildings.

RCGD-2015-AL

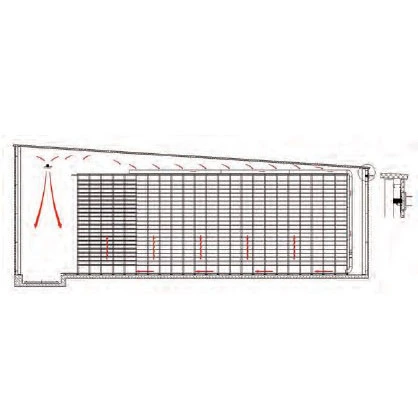

Uniform climate for all concrete products thanks to integrated air circulation system
Simple and secure download process

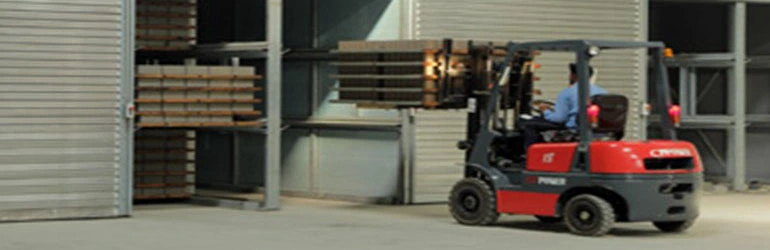

With integrated shelving or for manual mobile shelving

Details of curing racks

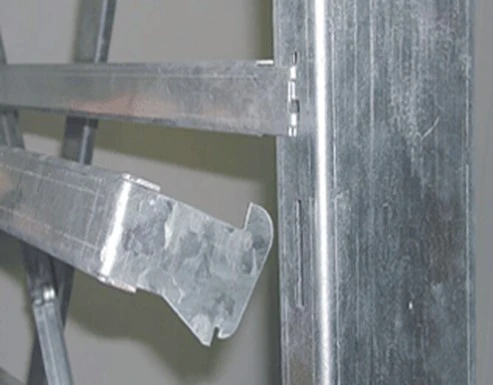

"Clip" technology
For quick assembly even by unskilled personnel
Easy replacement for maintenance purposes
Best profile for extreme loads

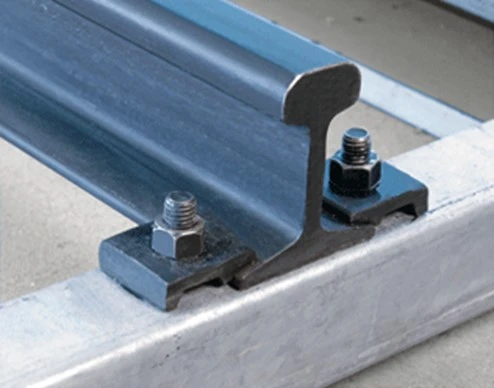

Rail Clamp Technology
Material-protective, durable connection system
Durable and efficient

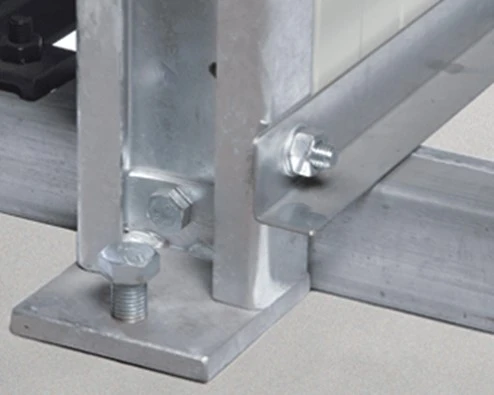

Leveling system
Individual settings
Optimal alignment

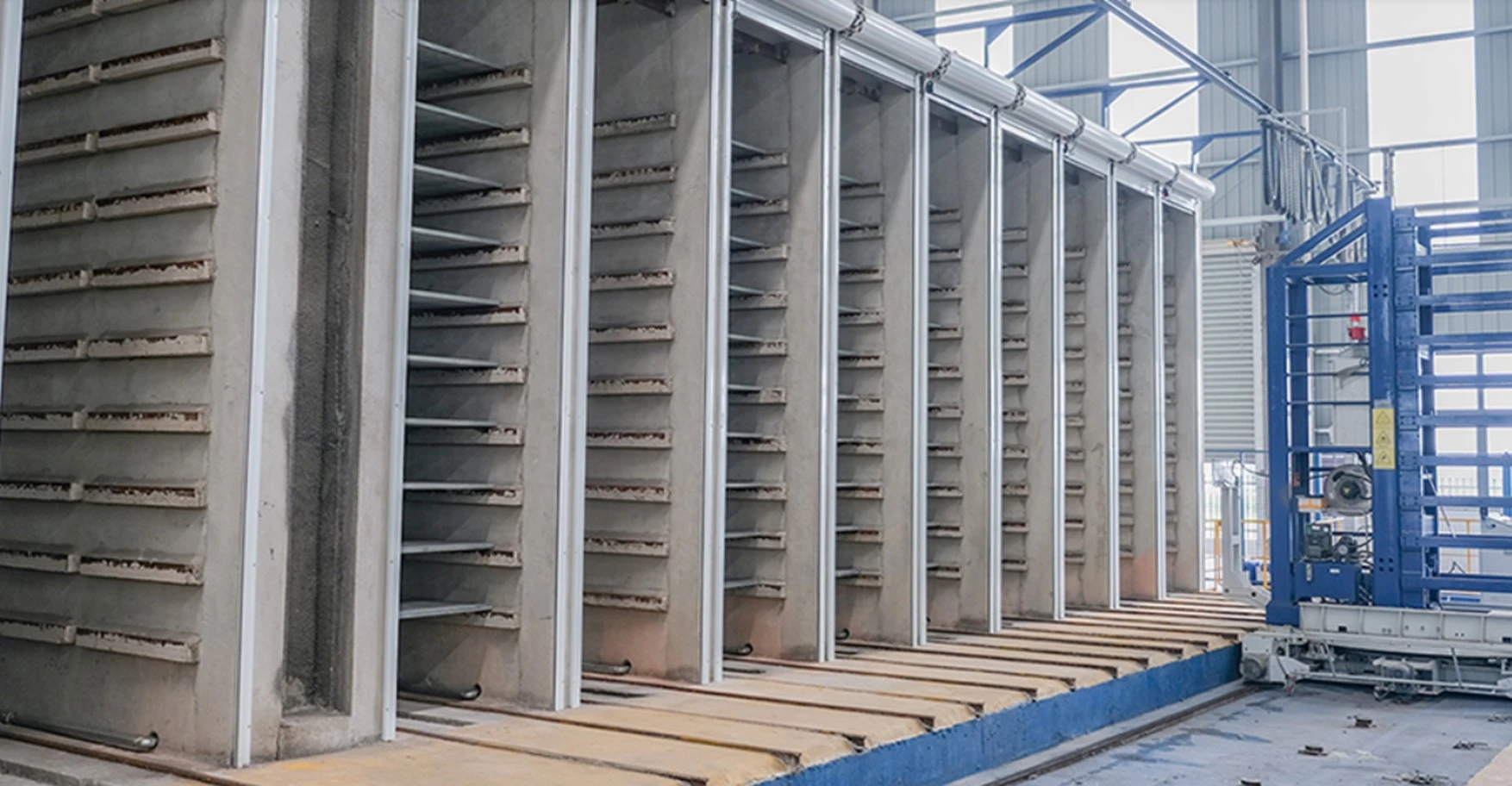

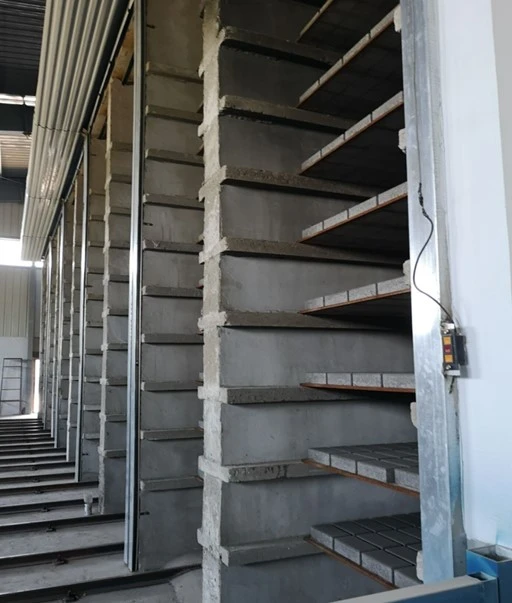

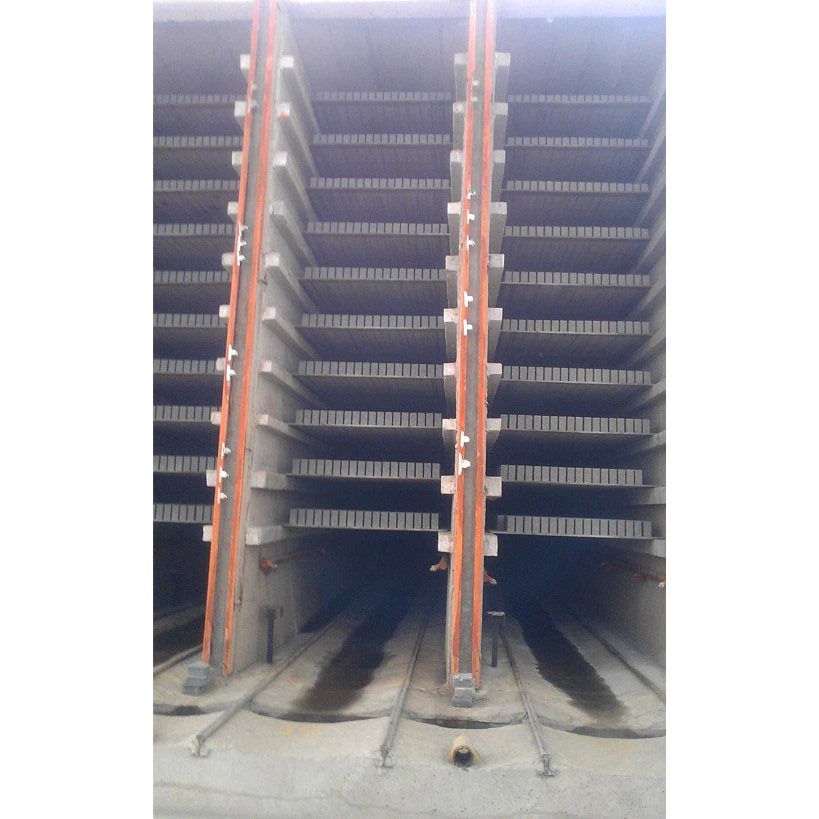

Concrete structure

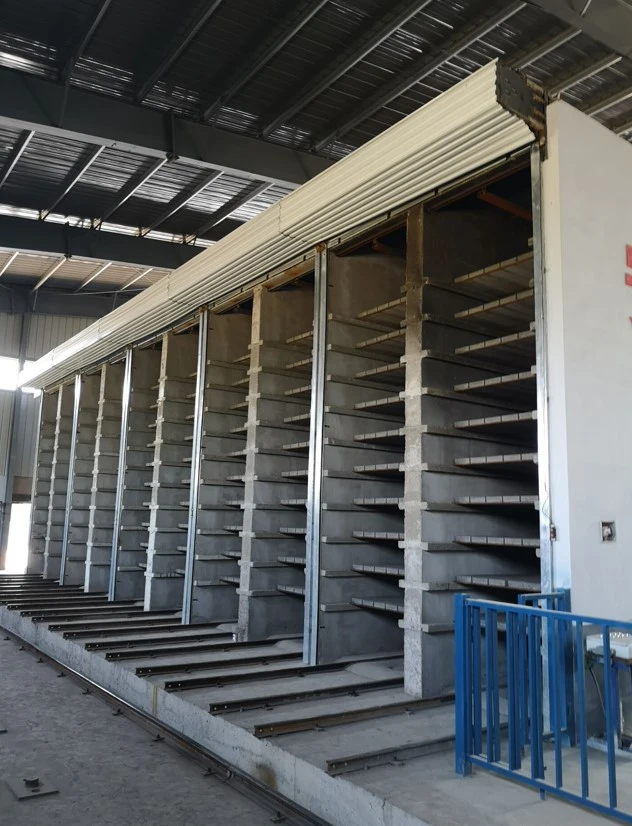

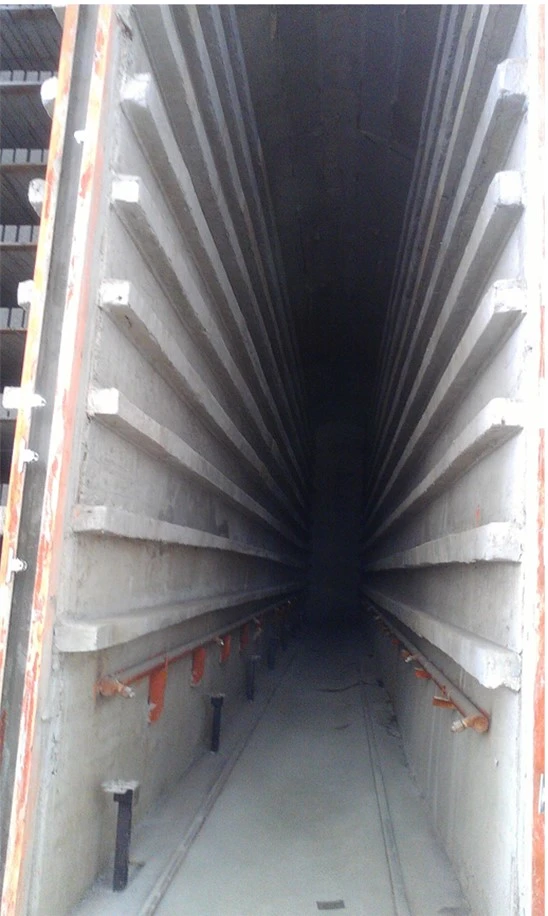

The concrete curing chamber can be built directly from concrete and equipped with appropriate supports, or it can be built from brick and equipped with appropriate supports.

Curing method

Curing methods in a curing chamber can be divided into three types:
Natural cure

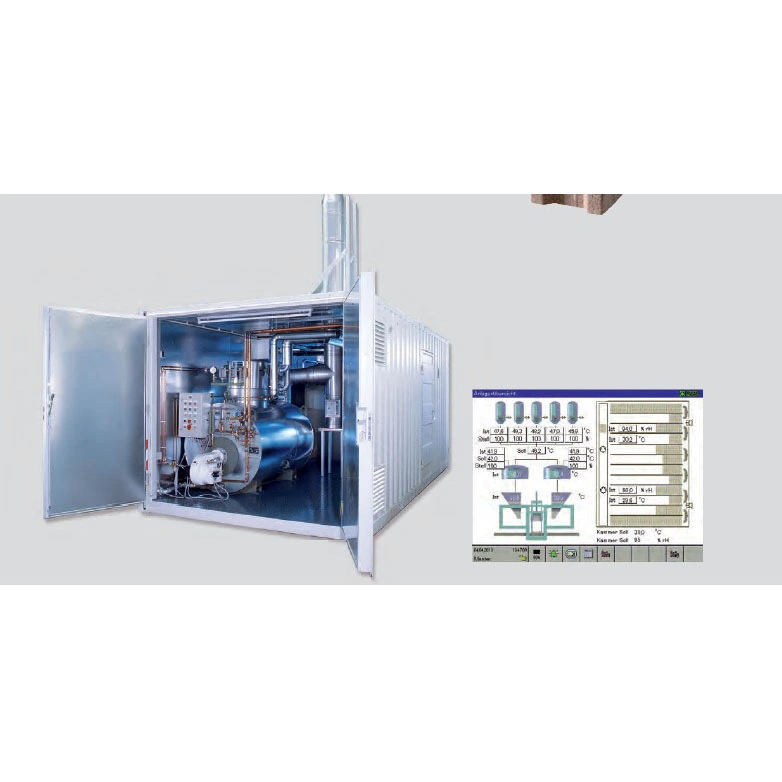

Steam curing using a steam system.
Air circulation system.

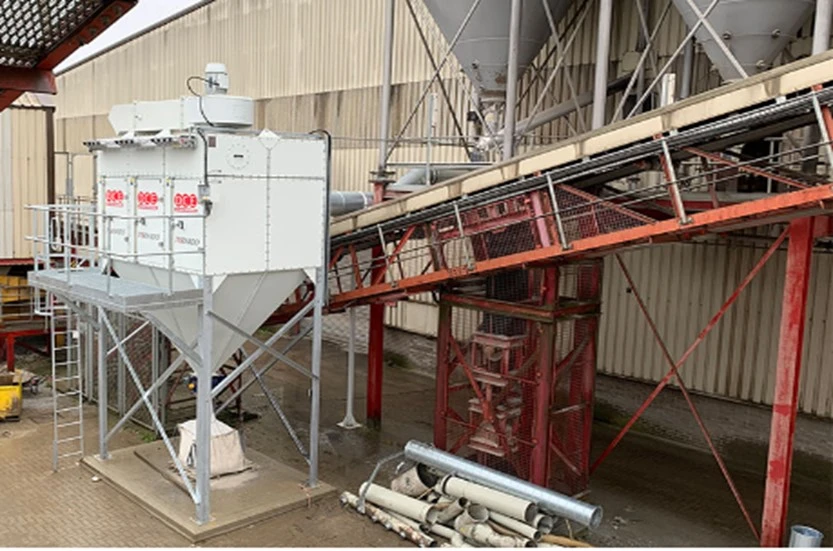

Dust removal system

According to the air pollution requirements of various places, the parts of the concrete block production line responsible for dust removal mainly include the following places:

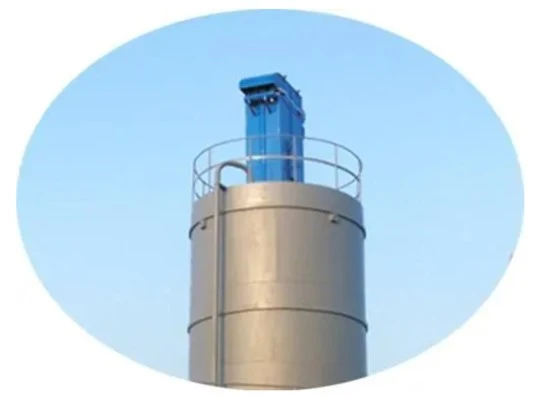

1. Cement silo with dust filter

2. Belt discharge points for the upper and lower hoppers of the dispenser.

3. Upper part of the mixer hopper. And also a mixer. for basemix and facemix

4.Part of concrete block making machine

5. Cube blocks, board return system, pallet brush, etc.

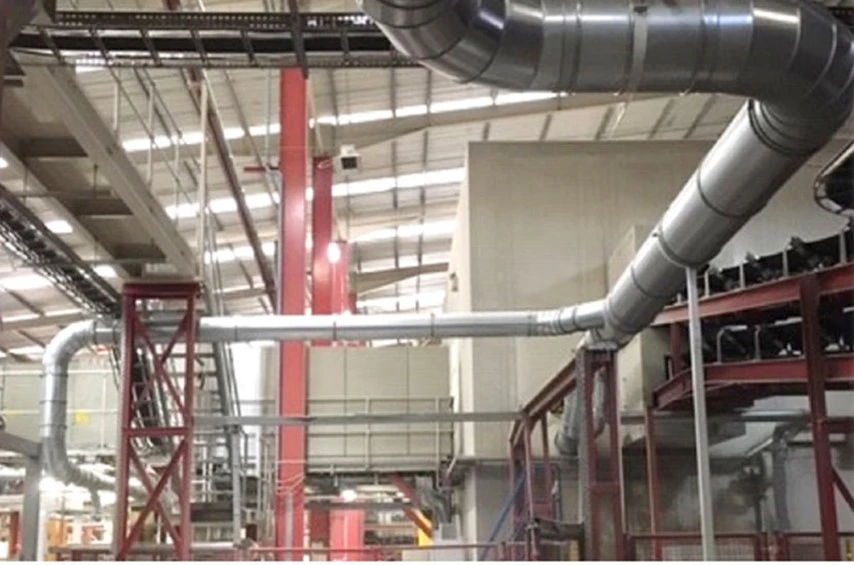

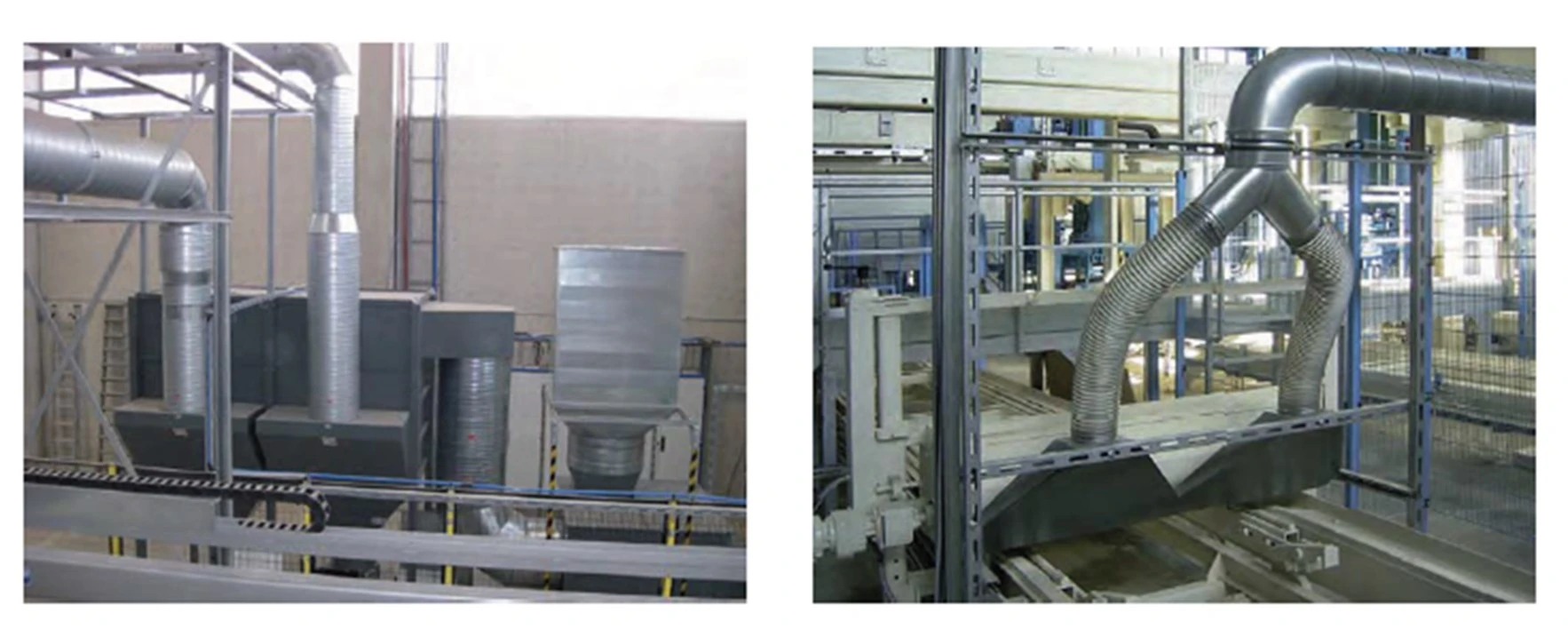

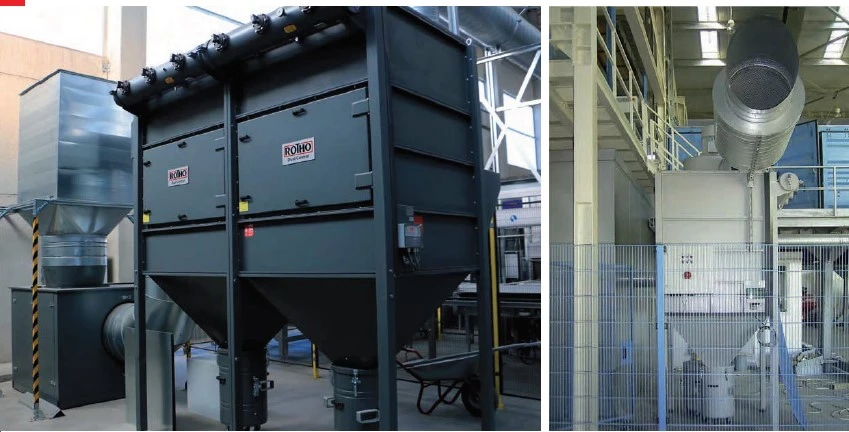

The system is designed to control air pollution from concrete and aggregate dust generated on a concrete block production line. An exhaust hood or suitable pipes can be used to remove dust.

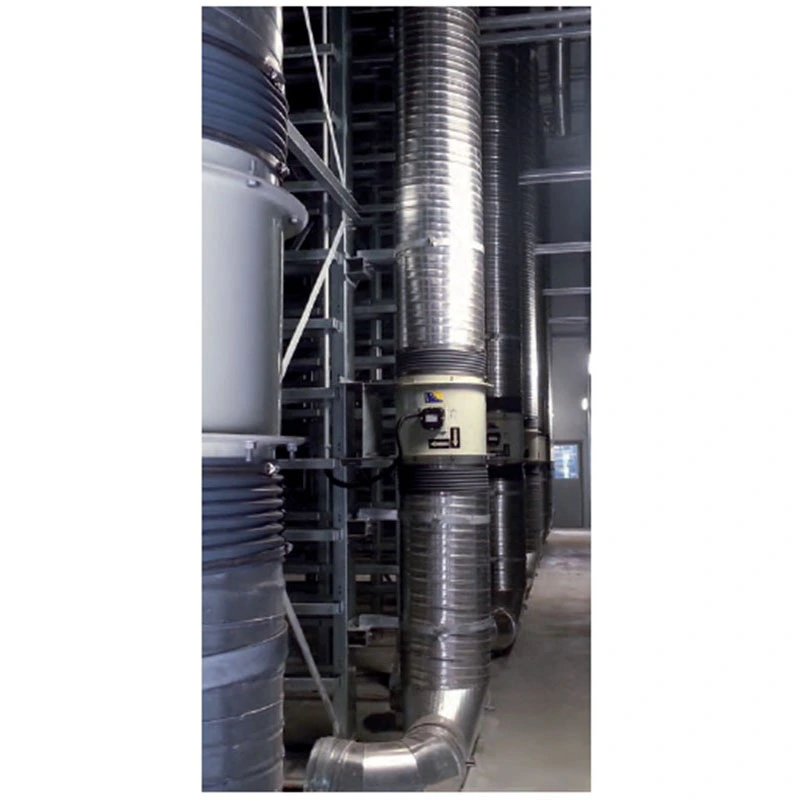

The gas containing dust flows from the pipeline into a highly efficient purifier. The dust gas is captured and purified by a highly efficient cleaning filter in the purifier. The solids stick to the outside of the bag under the negative pressure of the fan. The pulse valve is controlled by the controller at regular intervals. The system is automatically flushed and cleaned from the inside out. During the backflushing process, particles enter the ash hopper and are collected, and clean gas exits through the chimney.

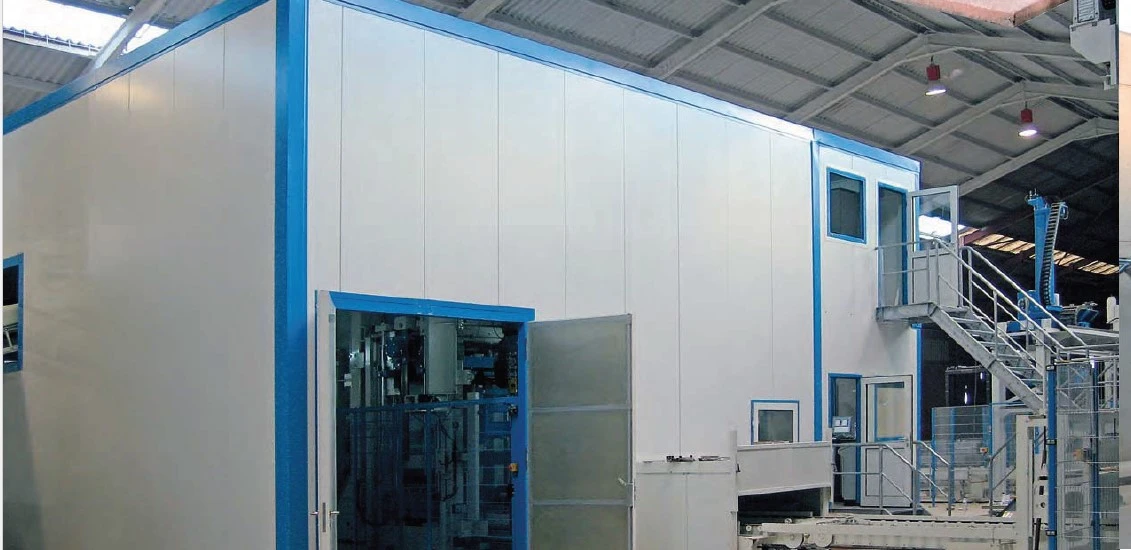

Soundproofing

The noise protection system is used mainly because the equipment produces corresponding noise during the production process, which affects the workers on site and the environment.

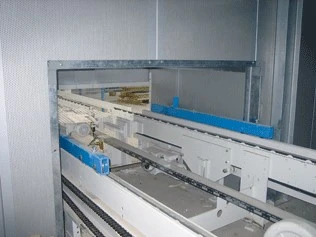

Soundproof tunnel for pallet supply and further transport. For pallets of different heights with height-adjustable sliding element.

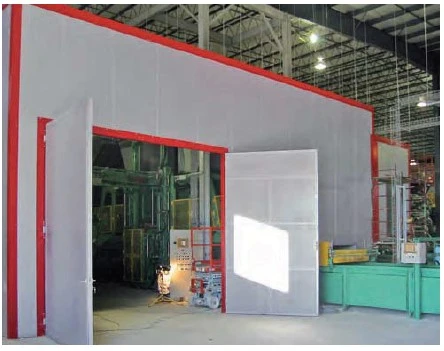

For covering machines and cabins, the autonomous system offers sufficient reserve for all individual projects. Proven sandwich elements guarantee excellent sound insulation properties.

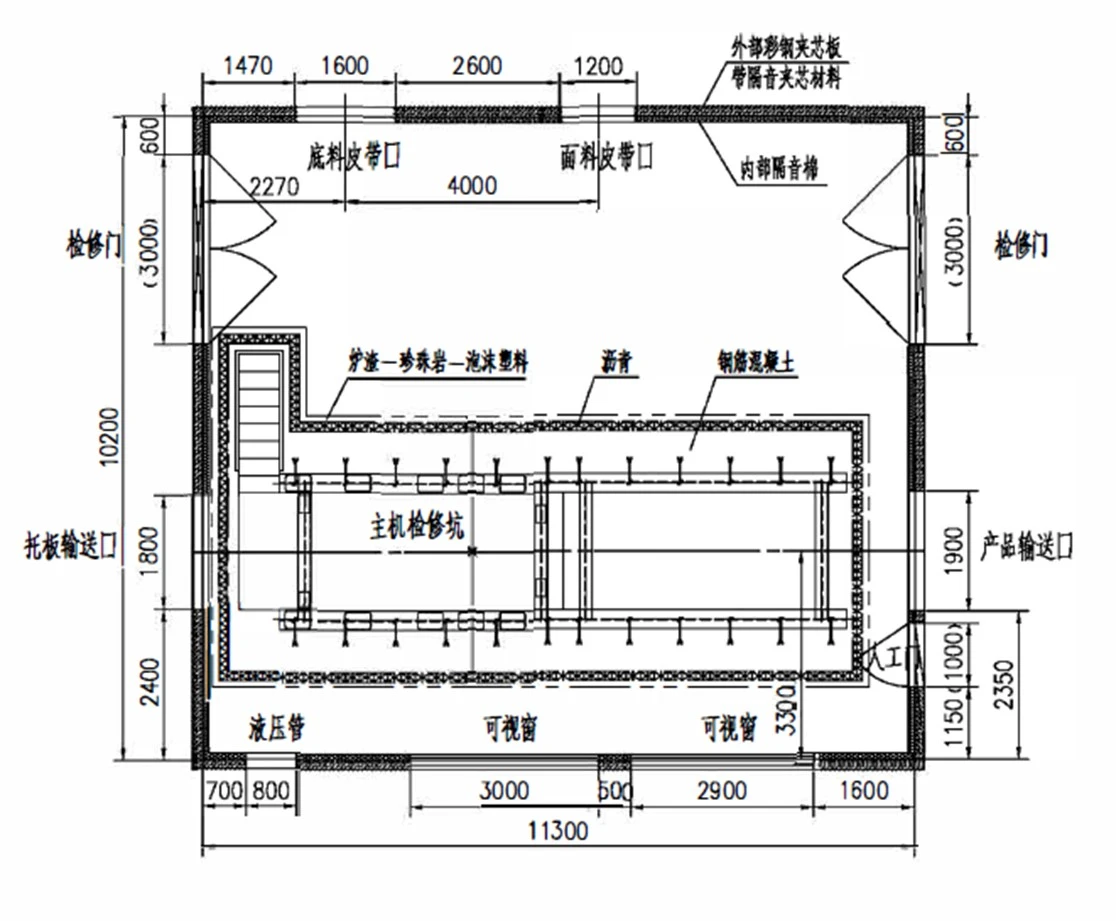

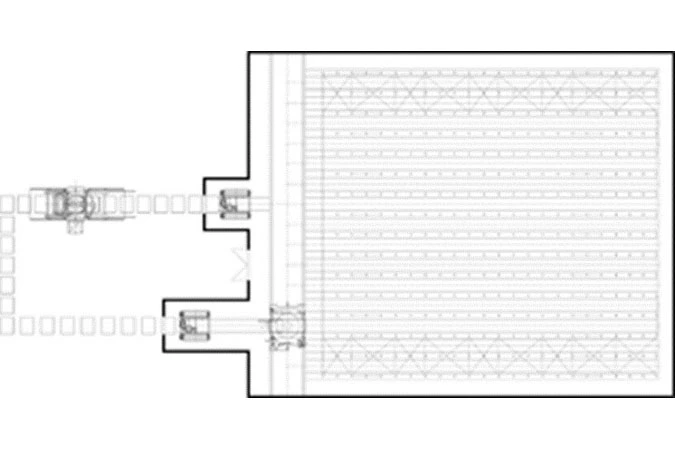

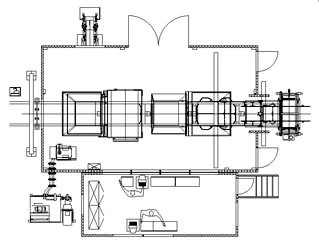

Soundproof chamber plan
