Paving slab making machine

The paving slab making machine uses sand, industrial waste, slag and slag as raw materials for the slope protection brick making machine, adding a small amount of cement and pressing them through the paving slab making machine. It can also produce different types of curbstones and colored bricks by changing the mold. Curb stones, lawn bricks, permeable bricks, specially shaped bricks, etc. are mainly used for building residential complexes, landscaping areas, protecting road curbs, pedestrian streets under municipal plans, and as bricks for home construction, etc.

Send Inquiry

Product Description

Find a huge selection of Paving Machine, Block Making Machine, Block Making Equipment from China at QGM Block Machine. We provide professional after-sales service and favorable prices, looking forward to your cooperation.

Features of Paving Slab Making Machine

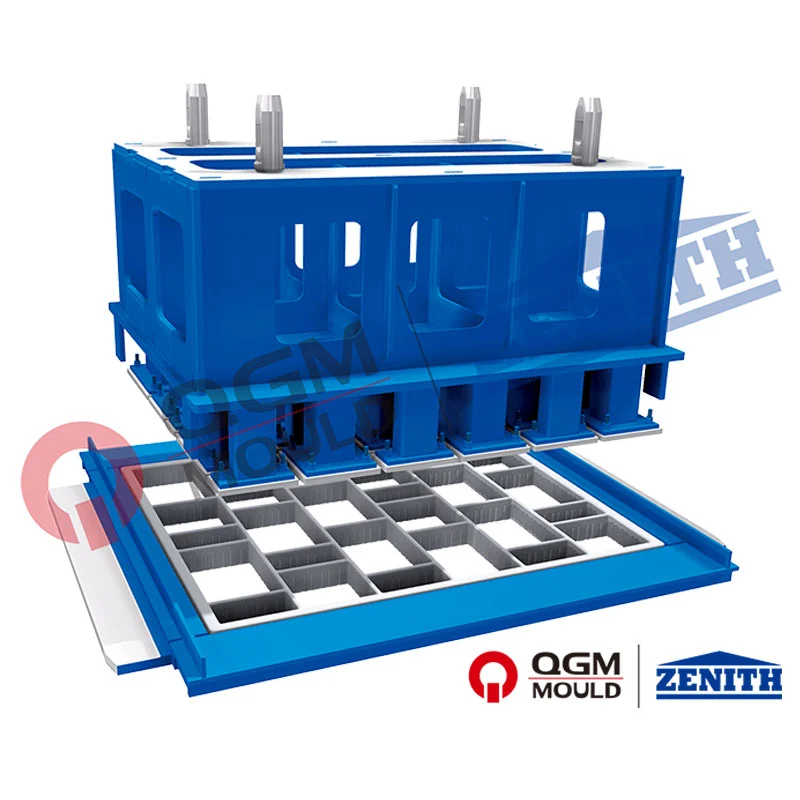

We can provide high quality molds for various brands of block machines:

Advanced steel stitching technology
1) Narrow blade thickness is possible; 2) Optimal use of the mold; 3) The gap between the tamper and the sole is 0.2-0.5 mm; 4) Possibility of manufacturing side walls with a reverse conical shape; 5) No need for holding grooves; 6) Typical design for multilayer production equipment; 7) Optional with exhaust sheet design; 8) Possibility of implementing a free surface design using digital technologies; 9) Possibility of making heated tamper soles

Advanced material processing technology
1) Applicable to all contours and geometric shapes; 2) Tolerances in the mold box are below +/-0.3 mm; 3) Tamper gap 0.2-0.3 mm; 4) Precise vertical, angular and smooth side walls; 5) Easy removal from the mold; 6) High landing accuracy; 7) Optional exhaust sheet design; 8) Possibility of implementing a digital free surface design; 9) Possibility of implementing a design with a heated tamper shoe.

To ensure mold durability, QGM molds feature the following wear protection:

Cementation (62-68 HRC)
1) Hardening of the mold body and heel shoe; 2) Calcination depth of at least 1.2 mm.

Nitriding (58-62 HRC)
1) Nitriding of the mold frame and tamping shoes (58-62 HRC); 2) The hardening depth can be no more than 0.4 mm; 3) Compared to cementation, there is practically no internal stress; 4) A small thickness of the jumper is recommended; 5) Higher contour accuracy compared to hardened dies.

Hot Tags: Paving slab making machine
